Toyota Corolla Levin

1983-05 → 1987-04 · chassis AE8# · catalogue 161150 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

10 part groups · 3 illustrations

Illustrations

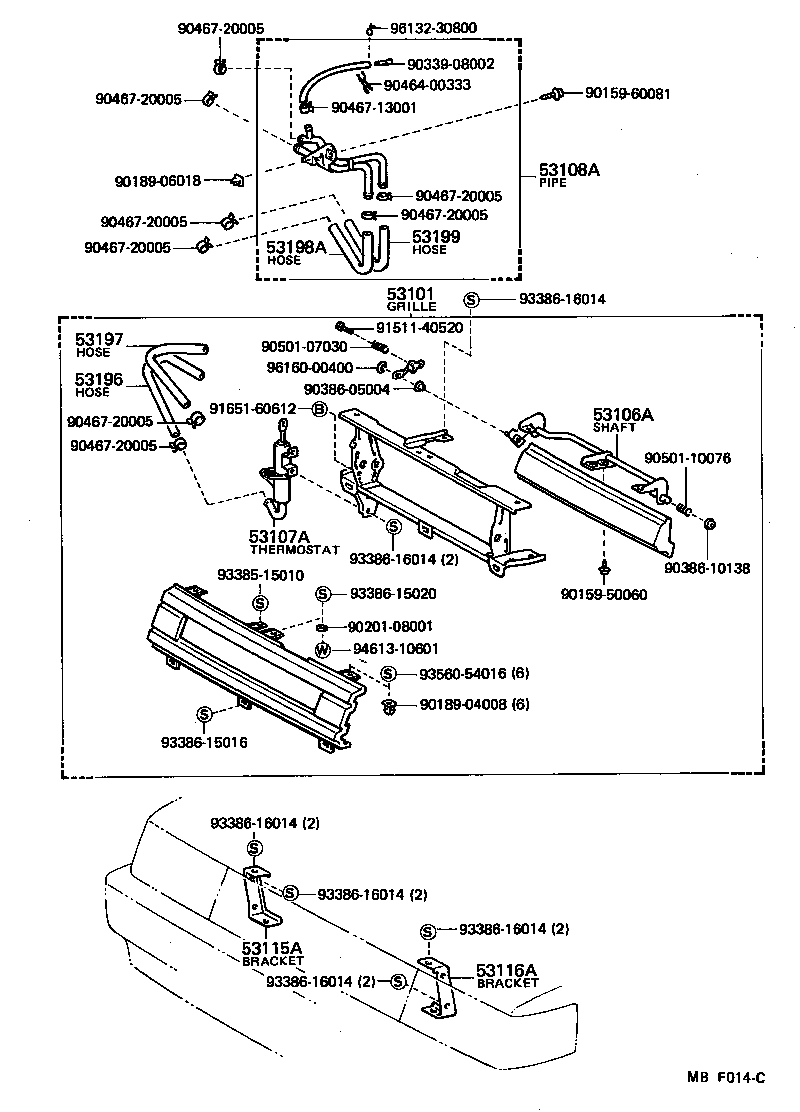

Figure MBF013 MBF013 1983-05 → 1985-05 Figure MBF014C MBF014C 1983-05 → 1985-05 Figure MBJ083A MBJ083A 1985-05 → —

Part groups

PNCDescription
53101 Grille Sub-assy, Radiator
53106A Shaft Sub-assy, Radiator Grille
53107A Thermostat Sub-assy, Radiator Grille
53108A Pipe Sub-assy, Radiator Grille
53115A Bracket, Radiator Grille, RH
53116A Bracket, Radiator Grille, LH
53196 Hose, Radiator Grille, NO.1
53197 Hose, Radiator Grille, NO.2
53198A Hose, Radiator Grille, NO.3
53199 Hose, Radiator Grille, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
