Toyota Corolla Levin

1983-05 → 1987-04 · chassis AE8# · catalogue 161150 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

9 part groups · 2 illustrations

Illustrations

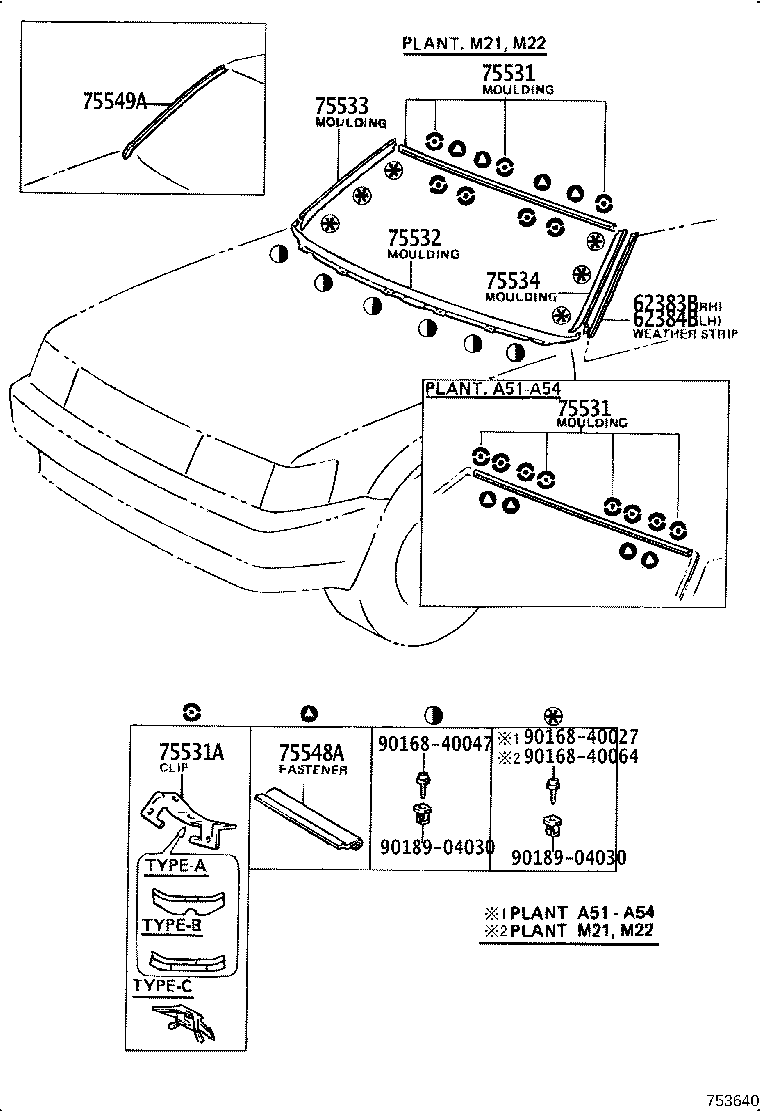

Figure MBF055E MBF055E 1983-05 → 1985-05 Figure 753640 753640 1985-05 → —

Part groups

PNCDescription
62383B Weatherstrip, Roof Side Rail, RH
62384B Weatherstrip, Roof Side Rail, LH
75531 Moulding, Windshield, Outer Upper
75531A Clip, Windshield Moulding Set, NO.1
75532 Moulding, Windshield, Lower
75533 Moulding, Windshield, Outside RH
75534 Moulding, Windshield, Outside LH
75548A Fastener, Windshield Outside Moulding, NO.1
75549A Moulding, Windshield Outside Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
