Toyota Corolla Levin

1983-05 → 1987-04 · chassis AE8# · catalogue 161150 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

10 part groups · 2 illustrations

Illustrations

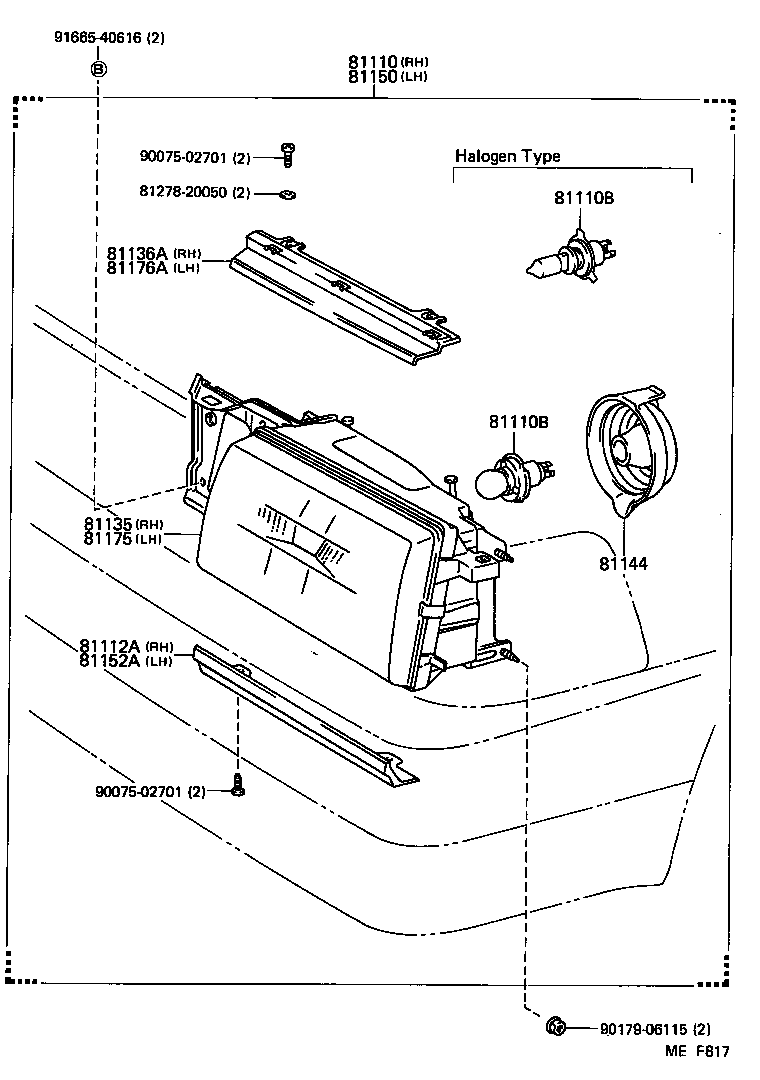

Figure MED074C MED074C 1983-05 → 1985-05 Figure MEF817 MEF817 1985-05 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81112A Rim, Headlamp, RH
81135 Unit Assy, Headlamp, RH
81136A Rim, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81152A Rim, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81176A Rim, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
