Toyota Corolla Levin
1983-05 → 1987-04 · chassis AE8# · catalogue 161150 · Japan
Discontinued model
Data version 1987-11

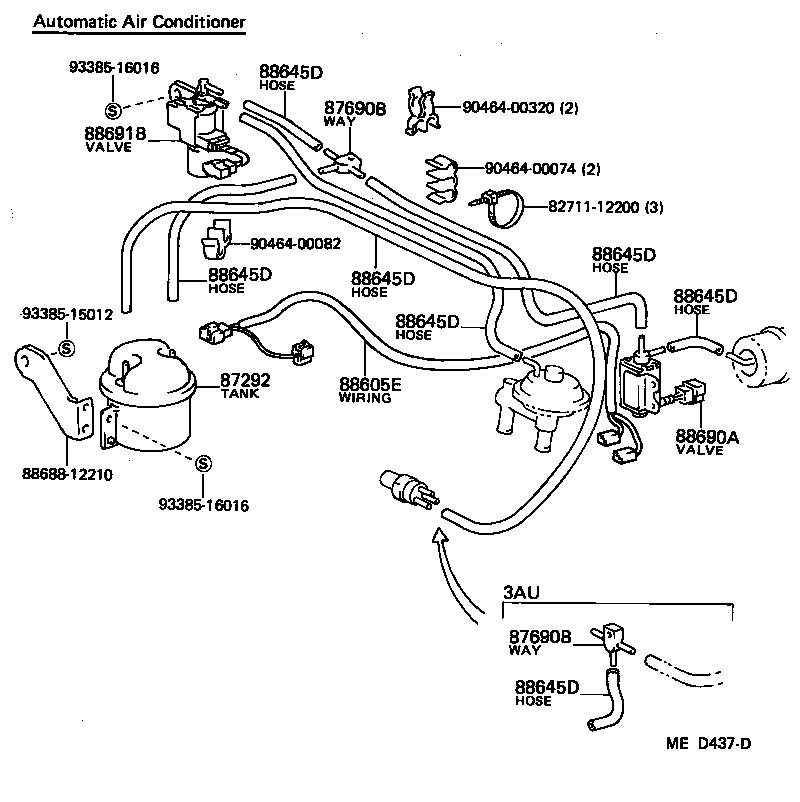

Heating & Air Conditioning - Vacuum Piping
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87292 | Tank, Vacuum |
| 87690B | Way, 3 |
| 88031 | Actuator Set, Idle-up |
| 88605E | Wire, Air Conditioner, NO.1 |
| 88645D | Hose (FOR IDLE UP DEVICE) |
| 88690A | Valve Assy, Combination |
| 88691 | Valve, Magnet (FOR IDLE UP DEVICE) |
| 88691B | Valve, Magnet (FOR WATER VALVE) |
| 88691C | Hose, Vacuum (FOR IDLE UP DEVICE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
