Toyota Corolla Levin

1983-05 → 1987-04 · chassis AE8# · catalogue 161150 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

18 part groups · 2 illustrations

Illustrations

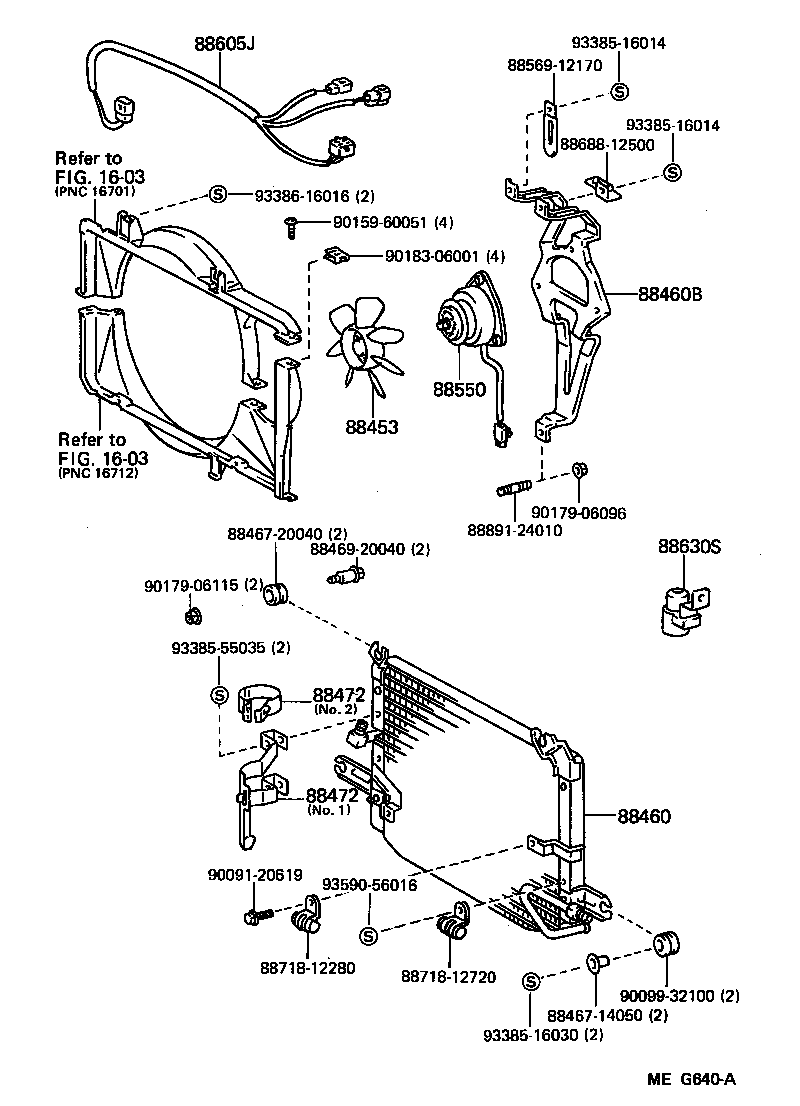

Figure 87I258 87I258 1983-05 → — Figure MEG640A MEG640A 1983-05 → —

Part groups

PNCDescription
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88596B Plate, Caution, NO.1
88605J Harness Sub-assy, Air Conditioner Wiring
88630S Relay Assy, Cooler
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
