Toyota Corolla Levin
1983-05 → 1987-04 · chassis AE8# · catalogue 161150 · Japan
Discontinued model
Data version 1987-11

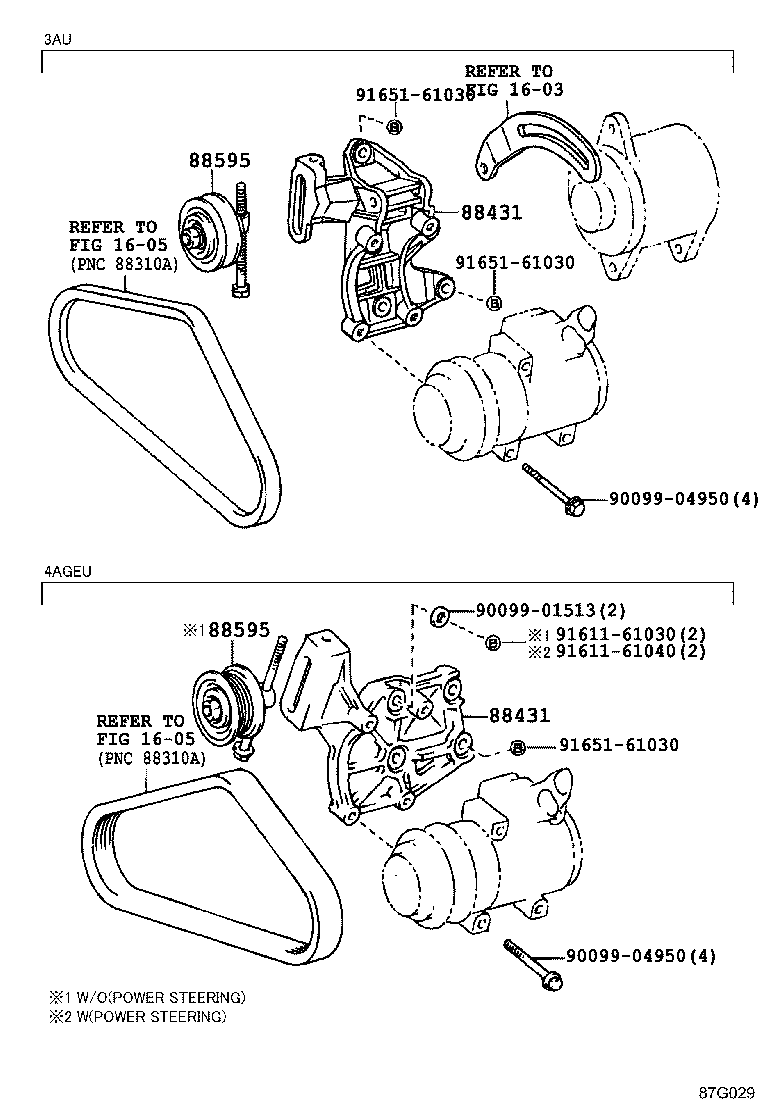

Heating & Air Conditioning - Compressor
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88330 | Clutch Assy, Magnet |
| 88330B | Bearing, Magnet Clutch |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88414A | Ring, Shield Snap |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88595 | Pulley, Cooler Compressor Idle |
| 88596A | Plate, Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
