Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

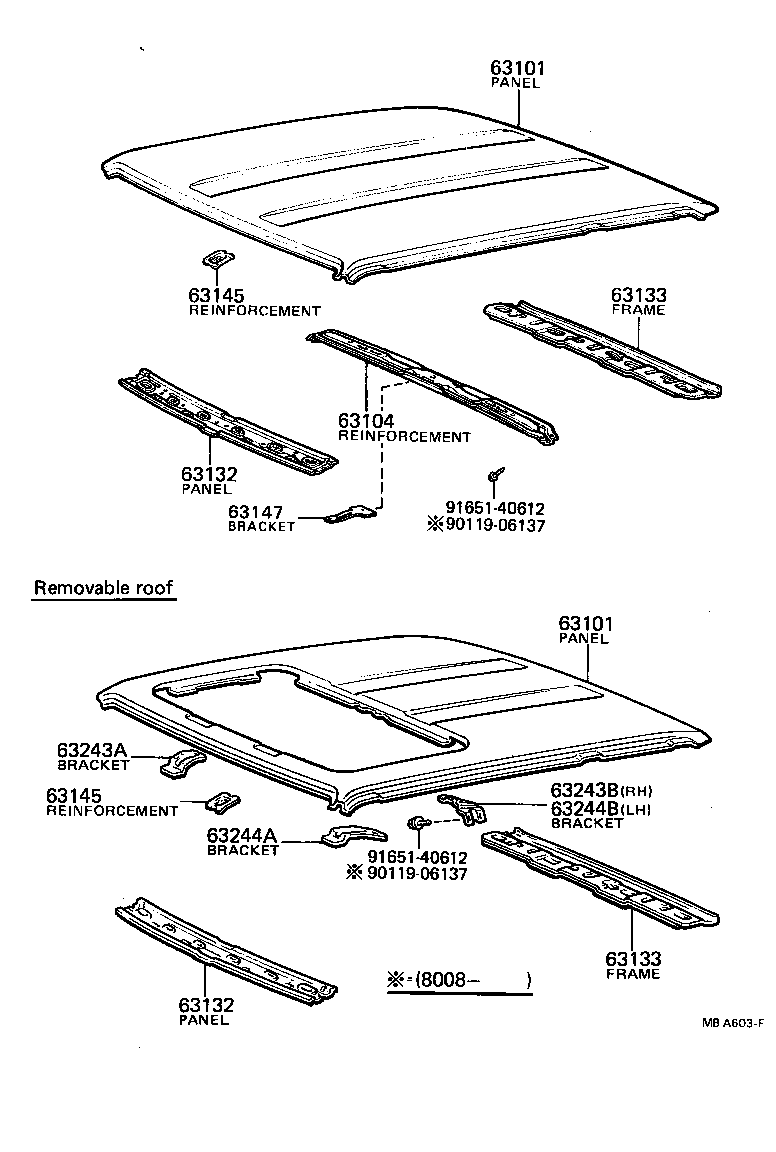

Exploded illustration MBA603F 63101 — PANEL SUB-ASSY, ROOF (7 parts) 63145 — REINFORCEMENT, WINDSHIELD HEADER INNER PANEL (2 parts) 63133 — FRAME, BACK WINDOW OPENING, UPPER (9 parts) 63104 — REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER (3 parts) 63132 — PANEL, WINDSHIELD HEADER, INNER (2 parts) 9165140612 — not listed in this catalogue 63147 — BRACKET, ROOF PANEL REINFORCEMENT (1 parts) 9011906137 — not listed in this catalogue 63101 — PANEL SUB-ASSY, ROOF (7 parts) 63243A — BRACKET, REMOVABLE ROOF HOUSING FRONT MOUNTING, RH (2 parts) 63243B — BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, RH (3 parts) 63145 — REINFORCEMENT, WINDSHIELD HEADER INNER PANEL (2 parts) 63244B — BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, LH (3 parts) 63244A — BRACKET, REMOVABLE ROOF HOUSING FRONT MOUNTING, LH (2 parts) 9165140612 — not listed in this catalogue 9011906137 — not listed in this catalogue 63133 — FRAME, BACK WINDOW OPENING, UPPER (9 parts) 63132 — PANEL, WINDSHIELD HEADER, INNER (2 parts)
MBA603F · 14 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
34 parts on this figure
Part number Description Fitment Price
63101 — Panel Sub-assy, Roof
63111-12130 Panel Sub-assy, Roof
1979-03 → 1983-04 ended
AE70,KE70,TE7# HT —
63111-12140 Panel Sub-assy, Roof
1979-03 → 1983-04 ended
AE70,CE70,KE70,TE7# 4D —
63111-12150 Panel Sub-assy, Roof
1979-03 → 1983-04 ended
AE70,KE70,TE7# CP ¥32,100
63111-12160 Panel Sub-assy, Roof
1979-03 → 1983-04 ended
AE70,KE70,TE7# LB ¥31,900
63111-12170 note Panel Sub-assy, Roof
1981-08 → 1983-04 ended
AE70,TE71 LB (GT,SE,SX) ¥32,100
63111-12170 note Panel Sub-assy, Roof
1979-08 → 1981-08 ended
AE70,KE70,TE7# LB (GT,SE,XL) ¥32,100
63111-12180 note Panel Sub-assy, Roof
1981-08 → 1983-04 ended
AE70,TE71 CP —
63104 — Reinforcement Sub-assy, Roof Panel, Center
63141-12060 Reinforcement Sub-assy, Roof Panel, Center
1979-03 → 1983-04 ended
AE70,CE70,KE70,TE7# 4D ¥1,440
63141-12070 Reinforcement Sub-assy, Roof Panel, Center
1979-03 → 1983-04 ended
AE70,KE70,TE7# CP,HT —
63141-12080 Reinforcement Sub-assy, Roof Panel, Center
1979-03 → 1983-04 ended
AE70,KE70,TE7# LB —
63132 — Panel, Windshield Header, Inner
63132-12080 Panel, Windshield Header, Inner
1979-03 → 1983-04 ended
AE70,CE70,KE70,TE7# 4D ¥1,810
63132-12090 Panel, Windshield Header, Inner
1979-03 → 1983-04 ended
AE70,KE70,TE7# 2D —
63133 — Frame, Back Window Opening, Upper
63105-12010 Frame, Back Window Opening, Upper
1979-03 → 1981-08 ended
KE70 CP DX —
63105-12020 note Frame, Back Window Opening, Upper
1979-03 → 1983-04 ended
AE70,KE70,TE7# CP —
63105-12030 note Frame, Back Window Opening, Upper
1979-03 → 1981-08 ended
AE70,KE70,TE70 CP (DX,ST) —
63105-12030 note Frame, Back Window Opening, Upper
1981-08 → 1983-04 ended
KE70,TE71 SR,TRS —
63105-12050 Frame, Back Window Opening, Upper
1979-03 → 1983-04 ended
KE70 LB DX —
63105-12060 note Frame, Back Window Opening, Upper
1979-03 → 1983-04 ended
AE70,KE70,TE70 LB (DX,SX,XL) —
63105-12070 note Frame, Back Window Opening, Upper
1979-03 → 1983-04 ended
AE70,KE70,TE7# LB —
63133-12110 Frame, Back Window Opening, Upper
1979-03 → 1983-04 ended
AE70,KE70,TE7# HT —
63133-12120 Frame, Back Window Opening, Upper
1979-03 → 1983-04 ended
AE70,CE70,KE70,TE7# 4D —
63145 — Reinforcement, Windshield Header Inner Panel
63145-12020 Reinforcement, Windshield Header Inner Panel
1979-03 → 1983-04 ended
AE70,CE70,KE70,TE7# 4D ¥1,140
63145-12030 Reinforcement, Windshield Header Inner Panel
1979-03 → 1983-04 ended
AE70,KE70,TE7# 2D —
63147 — Bracket, Roof Panel Reinforcement
63146-12020 Bracket, Roof Panel Reinforcement
1982-02 → 1983-04 ended
TE71 CP —
63243A — Bracket, Removable Roof Housing Front Mounting, RH
63241-12010 note Bracket, Removable Roof Housing Front Mounting, RH
1979-08 → 1981-08 ended
AE70,KE70,TE7# LB (GT,SE,XL) —
63241-12010 note Bracket, Removable Roof Housing Front Mounting, RH
1981-08 → 1983-04 ended
AE70,TE71 (CP,LB) (GT,SE,SR,SX,TRR,TRS) —
63243B — Bracket, Removable Roof Housing Side Mounting, RH
63243-12010 note Bracket, Removable Roof Housing Side Mounting, RH
1979-08 → 1981-08 ended
AE70,KE70,TE7# LB (GT,SE,XL) —
63243-12010 note Bracket, Removable Roof Housing Side Mounting, RH
1981-08 → 1983-04 ended
AE70,TE71 LB (GT,SE,SX) —
63243-12020 note Bracket, Removable Roof Housing Side Mounting, RH
1981-08 → 1983-04 ended
AE70,TE71 CP —
63244A — Bracket, Removable Roof Housing Front Mounting, LH
63242-12010 note Bracket, Removable Roof Housing Front Mounting, LH
1979-08 → 1981-08 ended
AE70,KE70,TE7# LB (GT,SE,XL) —
63242-12010 note Bracket, Removable Roof Housing Front Mounting, LH
1981-08 → 1983-04 ended
AE70,TE71 (CP,LB) (GT,SE,SR,SX,TRR,TRS) —
63244B — Bracket, Removable Roof Housing Side Mounting, LH
63244-12010 note Bracket, Removable Roof Housing Side Mounting, LH
1979-08 → 1981-08 ended
AE70,KE70,TE7# LB (GT,SE,XL) —
63244-12010 note Bracket, Removable Roof Housing Side Mounting, LH
1981-08 → 1983-04 ended
AE70,TE71 LB (GT,SE,SX) —
63244-12020 note Bracket, Removable Roof Housing Side Mounting, LH
1981-08 → 1983-04 ended
AE70,TE71 CP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
