Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Chain

18 part groups · 3 illustrations

Illustrations

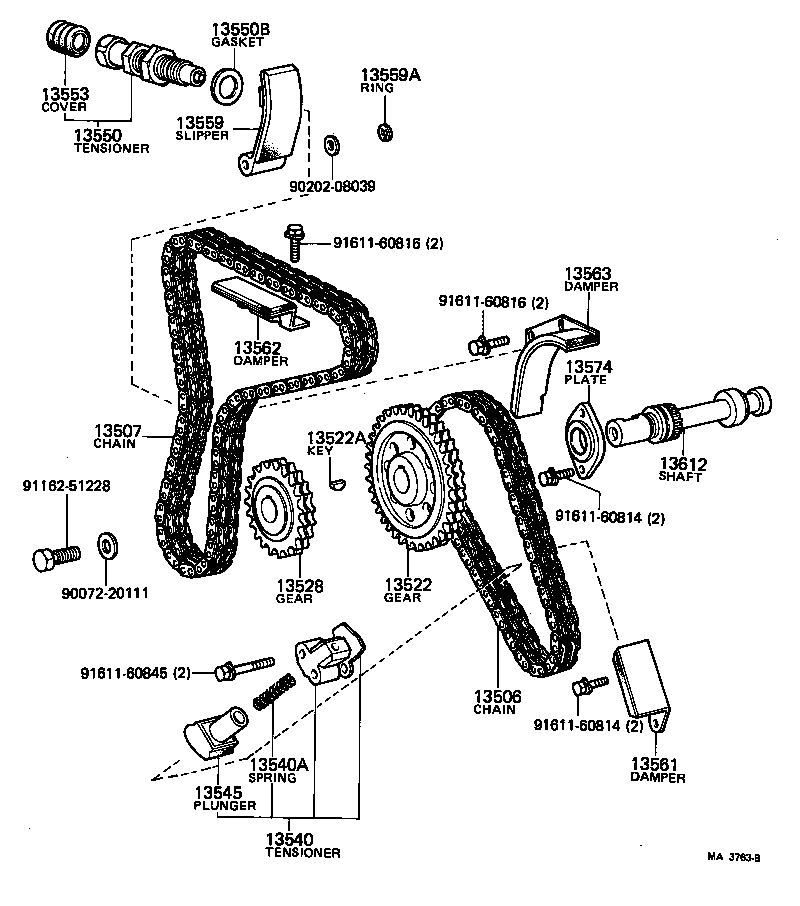

Figure AS0109B AS0109B 1979-03 → — Figure AS0109B AS0109B 1979-03 → — Figure MA3763B MA3763B 1979-03 → —

Part groups

PNCDescription
13506 Chain Sub-assy
13507 Chain Sub-assy, NO.2
13522 Gear, Pump Drive Shaft
13522A Key, Woodruff(FOR PUMP DRIVE SHAFT GEAR)
13528 Gear, Camshaft Drive
13540 Tensioner Assy, Chain, NO.1
13540A Spring, Compression(FOR CHAIN TENSIONER)
13545 Plunger, Chain Tensioner
13550 Tensioner Assy, Chain, NO.2
13550B Gasket, Chain Tensioner, NO.2
13553 Cover, Chain Tensioner Dust
13559 Slipper, Chain Tensioner
13559A Ring, E(FOR CHAIN TENSIONER SLIPPER)
13561 Damper, Chain Vibration, NO.1
13562 Damper, Chain Vibration, NO.2
13563 Damper, Chain Vibration, NO.3
13574 Plate, Pump Drive Shaft
13612 Shaft, Pump Drive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
