Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

42 part groups · 7 illustrations

Illustrations

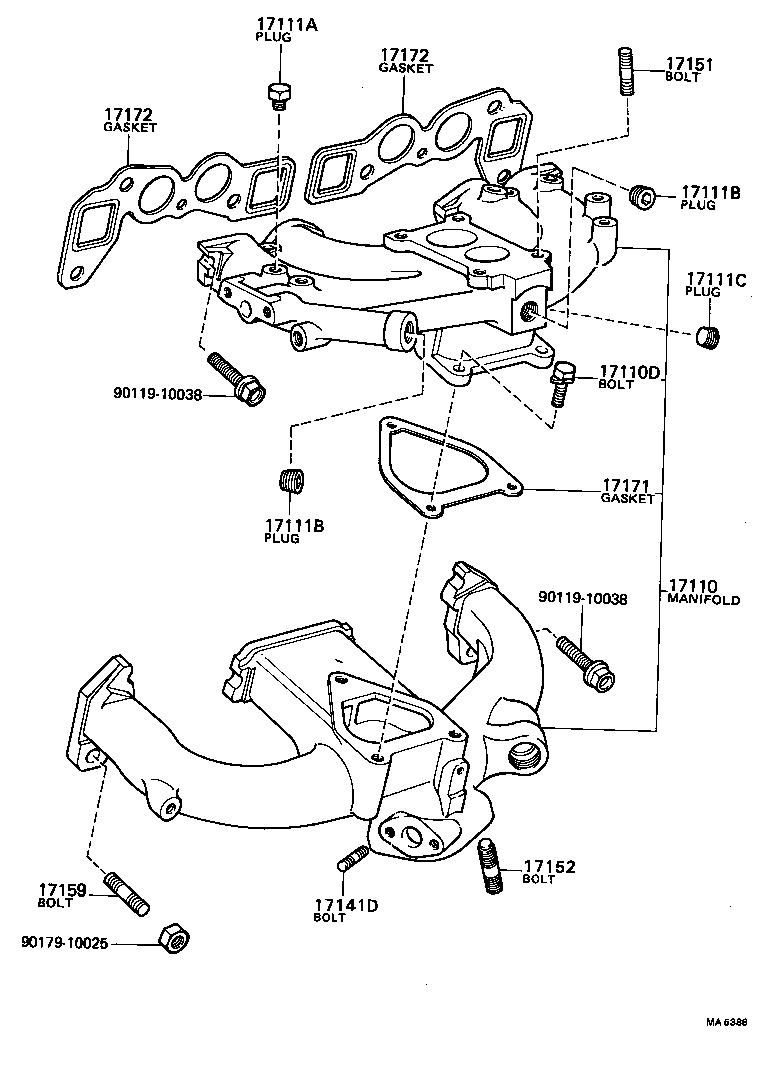

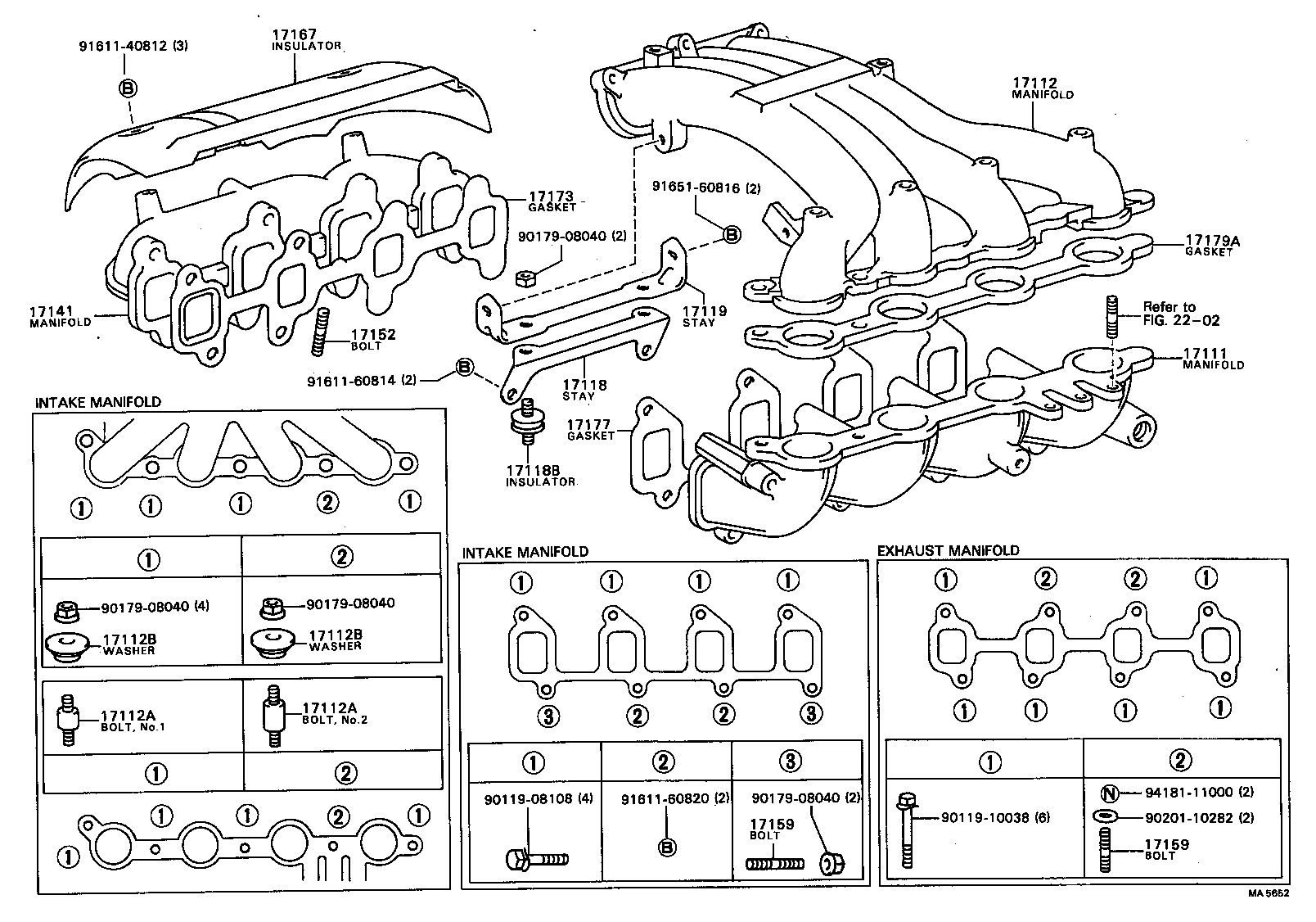

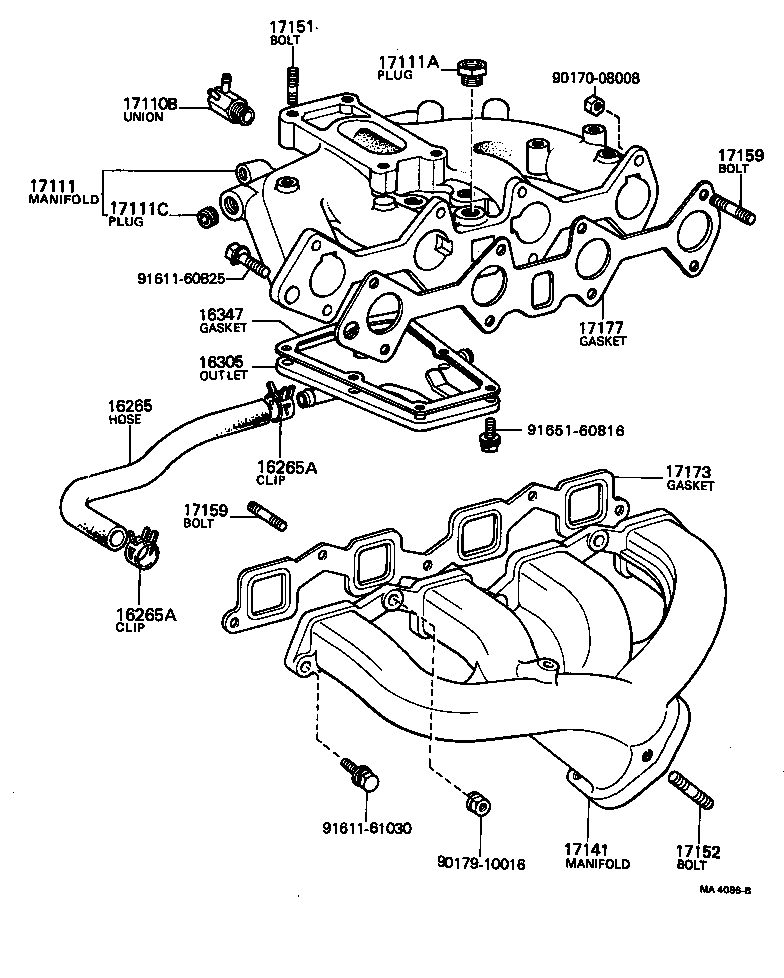

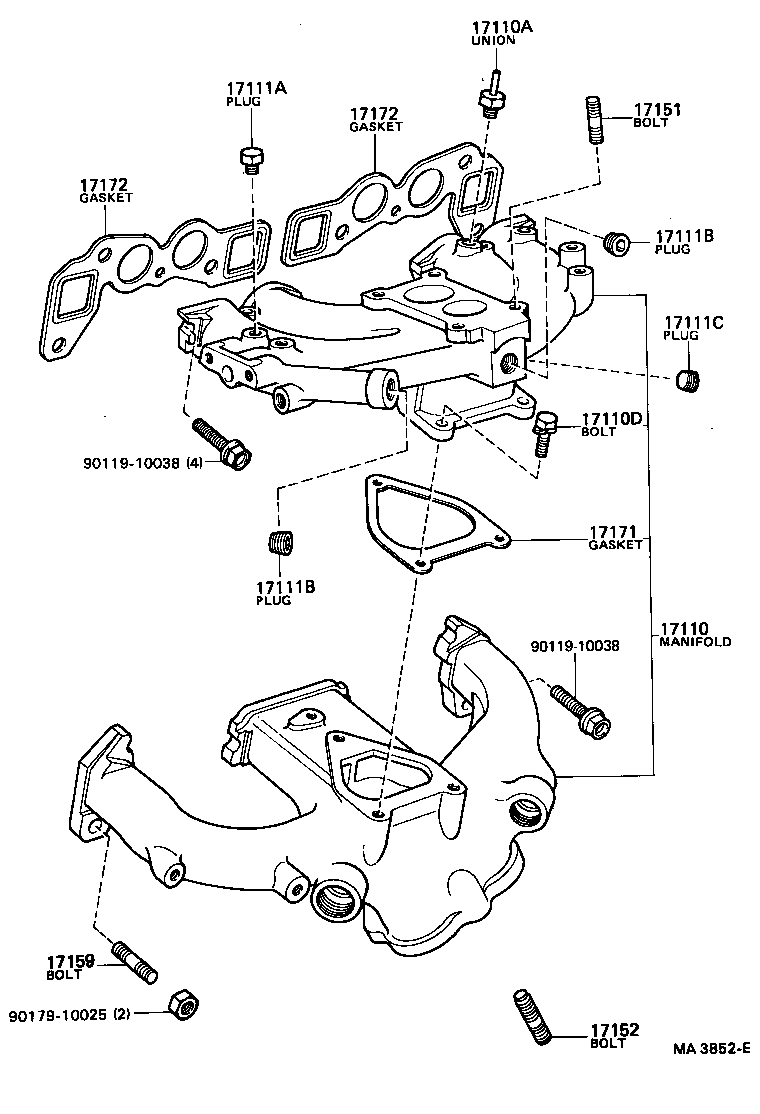

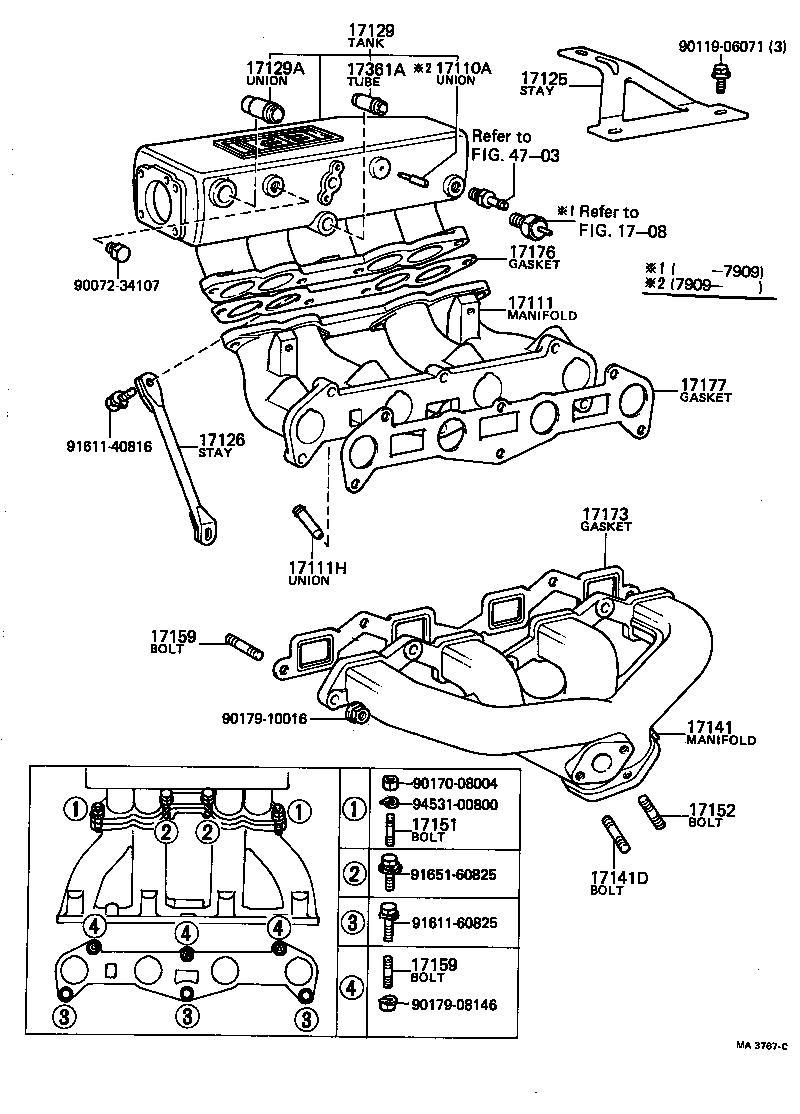

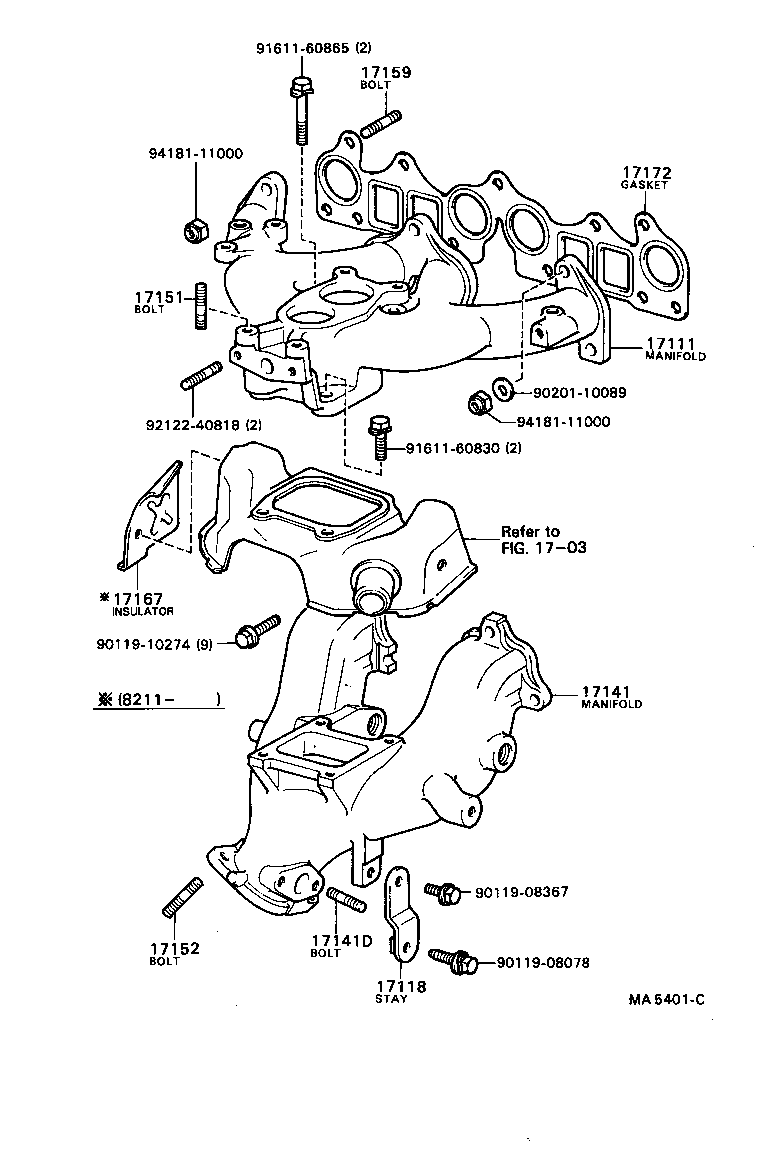

Figure MA3803A MA3803A 1979-03 → 1981-08 Figure MA5401C MA5401C 1981-08 → — Figure MA5652 MA5652 1982-02 → — Figure MA3852E MA3852E 1979-03 → 1981-08 Figure MA5388 MA5388 1981-08 → — Figure MA4086B MA4086B 1979-08 → 1981-08 Figure MA3767C MA3767C 1979-03 → —

Part groups

PNCDescription
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
16305 Outlet Sub-assy, Water By-pass
16347 Gasket, Water By-pass
17110 Manifold Assy
17110A Union, Vacuum Hose
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17110D Bolt(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17111H Union(FOR INTAKE MANIFOLD WATER)
17112 Manifold, Intake, NO.2
17112A Bolt, Stud(FOR INTAKE MANIFOLD NO.2 SET)
17112B Washer, Seal(FOR INTAKE MANIFOLD NO.2 SET)
17118 Stay, Manifold
17118B Insulator, Intake Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17129A Union, NO.1
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17233 Counter Weight
17233A Spring, Spiral, NO.1(FOR COUNTER WEIGHT)
17233B Spring, Spiral, NO.2(FOR COUNTER WEIGHT)
17233C Bolt(FOR COUNTER WEIGHT)
17233D Shim(FOR COUNTER WEIGHT)
17233E Ring, E(FOR COUNTER WEIGHT)
17361A Tube, Air(FOR EFI)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
