Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

13 part groups · 4 illustrations

Illustrations

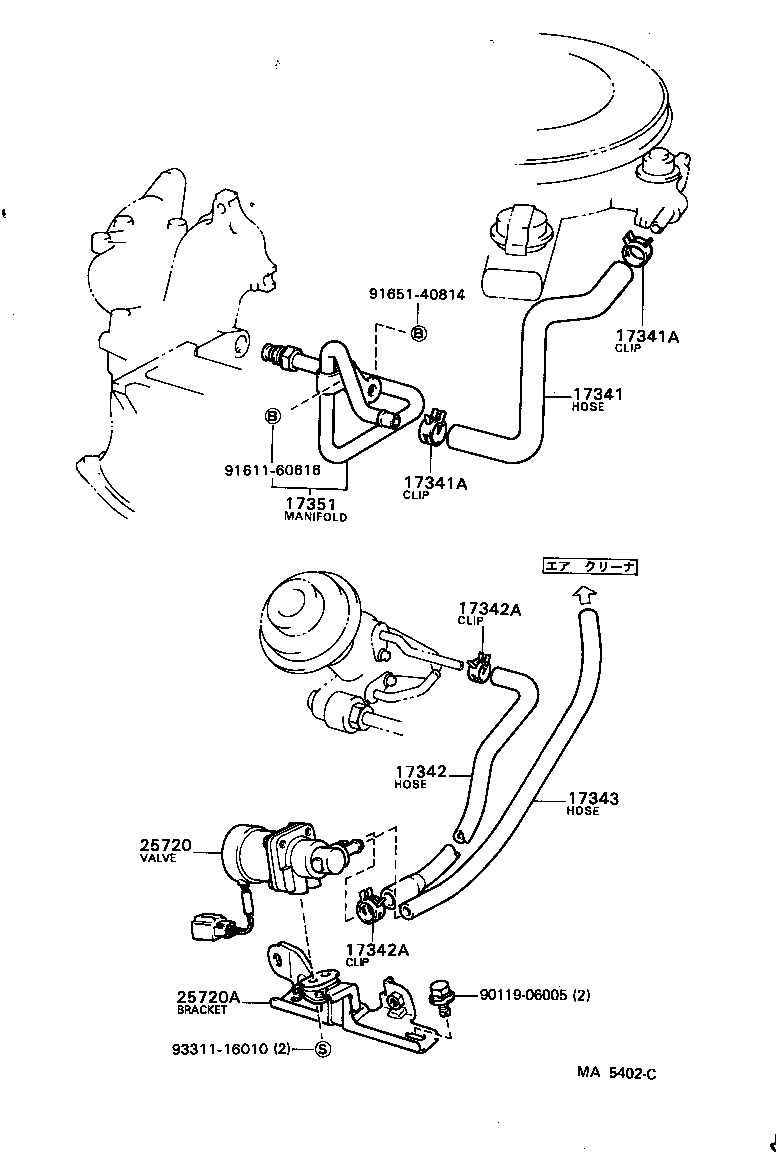

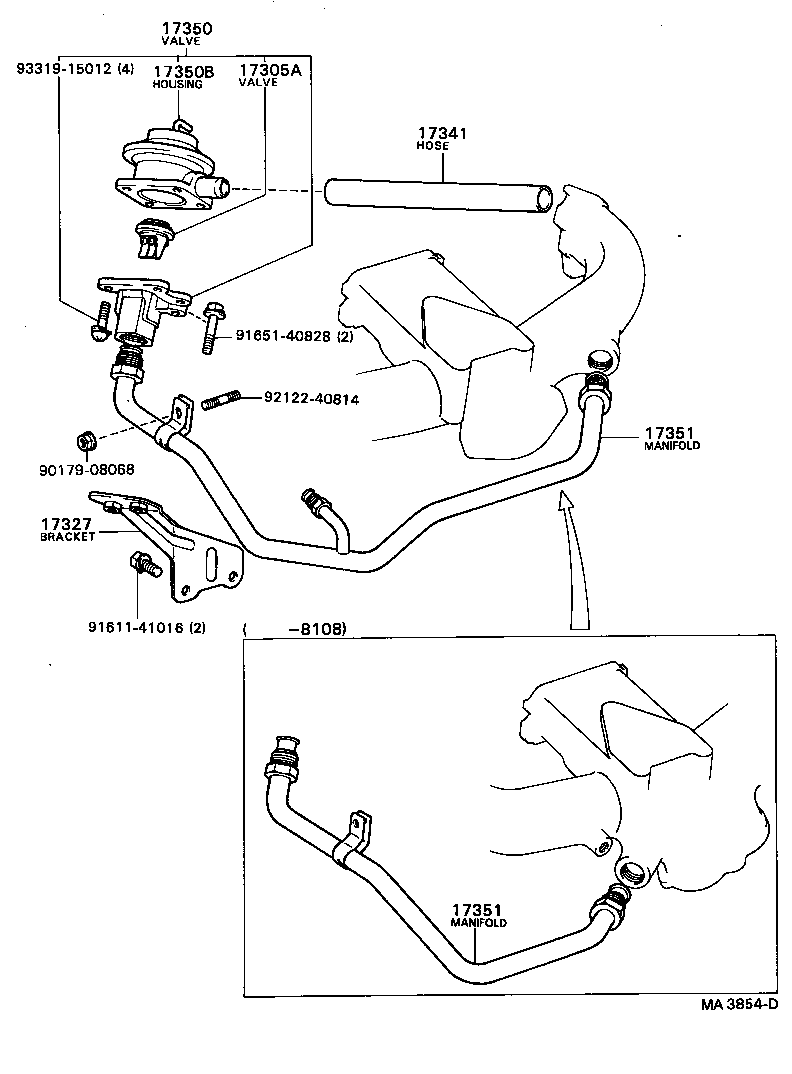

Figure MA3304A MA3304A 1979-03 → 1981-08 Figure MA5402C MA5402C 1981-08 → — Figure MA3854D MA3854D 1979-03 → — Figure MA4061 MA4061 1979-08 → 1981-08

Part groups

PNCDescription
17305A Valve Sub-assy, Reed
17327 Bracket, Reed Valve
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17350 Valve Assy, Reed
17350B Housing Sub-assy, Diaphragm
17351 Manifold, Air Injection
17368 Support, Air Tube
25720 Valve Assy, Electric Air Control
25720A Bracket, Electric Air Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
