Toyota Sprinter
1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan
Discontinued model
Data version 1983-12

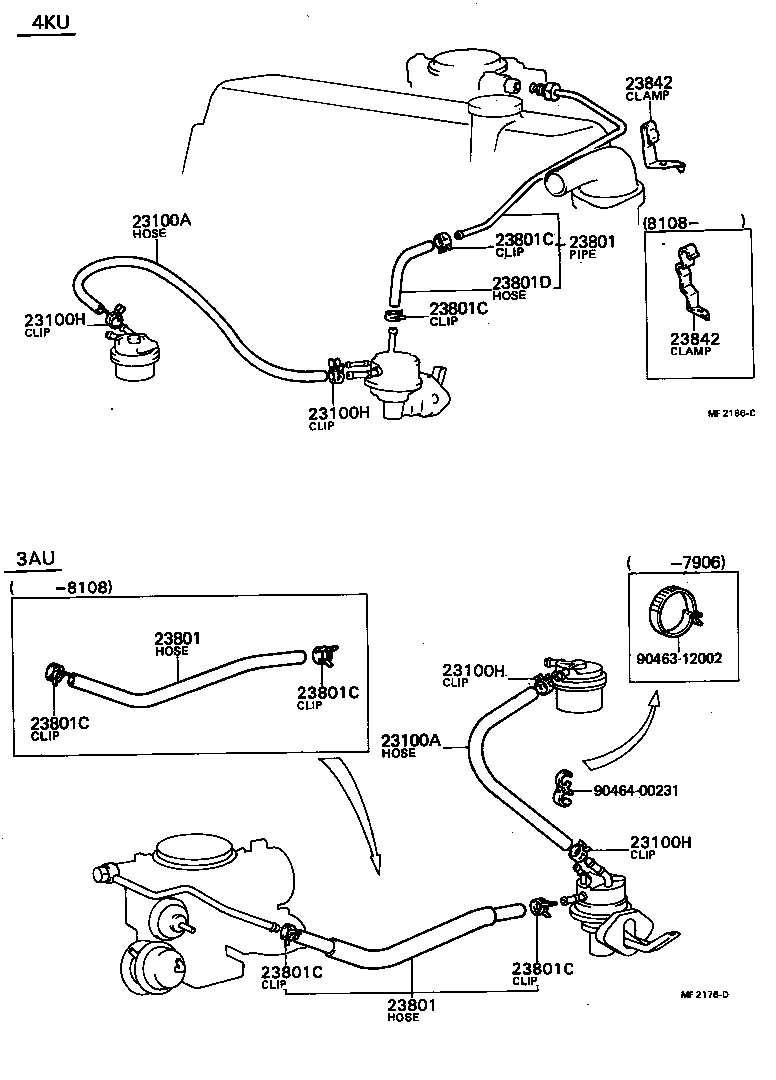

Fuel Pipe & Clamp
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 23100A | Hose, Fuel |
| 23100H | Clip(FOR FUEL HOSE) |
| 23801 | Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1 |
| 23801C | Clip(FOR CARBURETOR FUEL HOSE) |
| 23801D | Hose, Fuel Pipe, NO.1 |
| 23842 | Clamp, Fuel Pipe(HOSE), NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
