Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

160 part groups · 17 illustrations

Illustrations

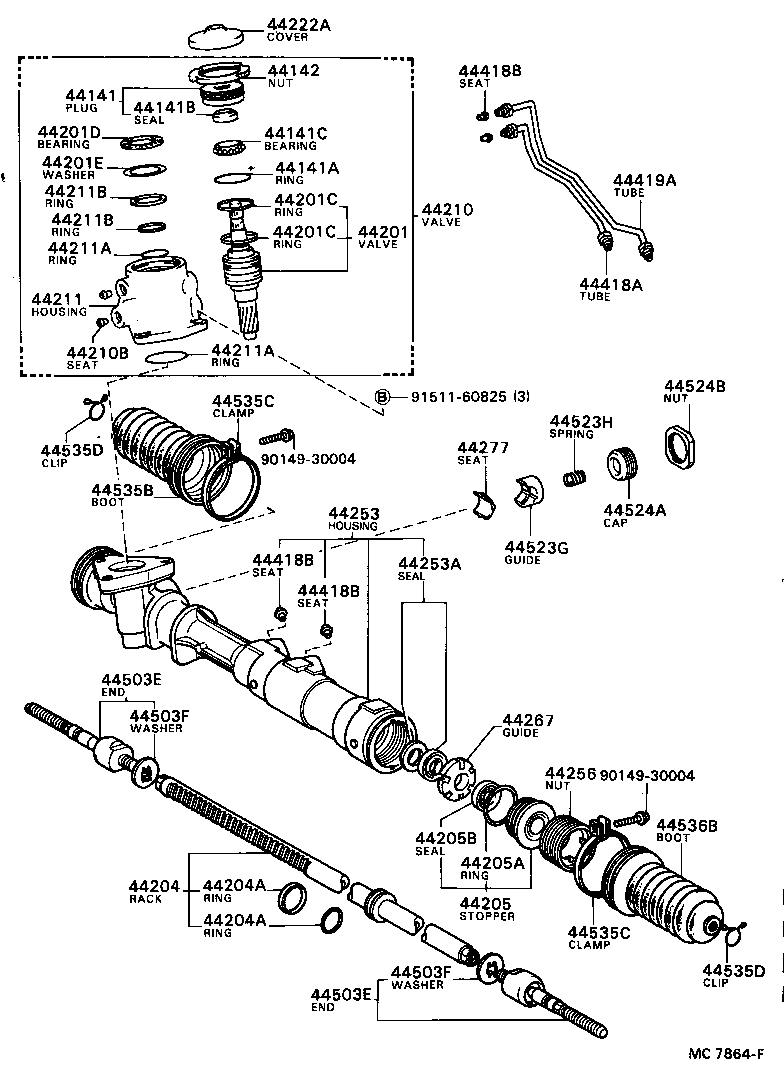

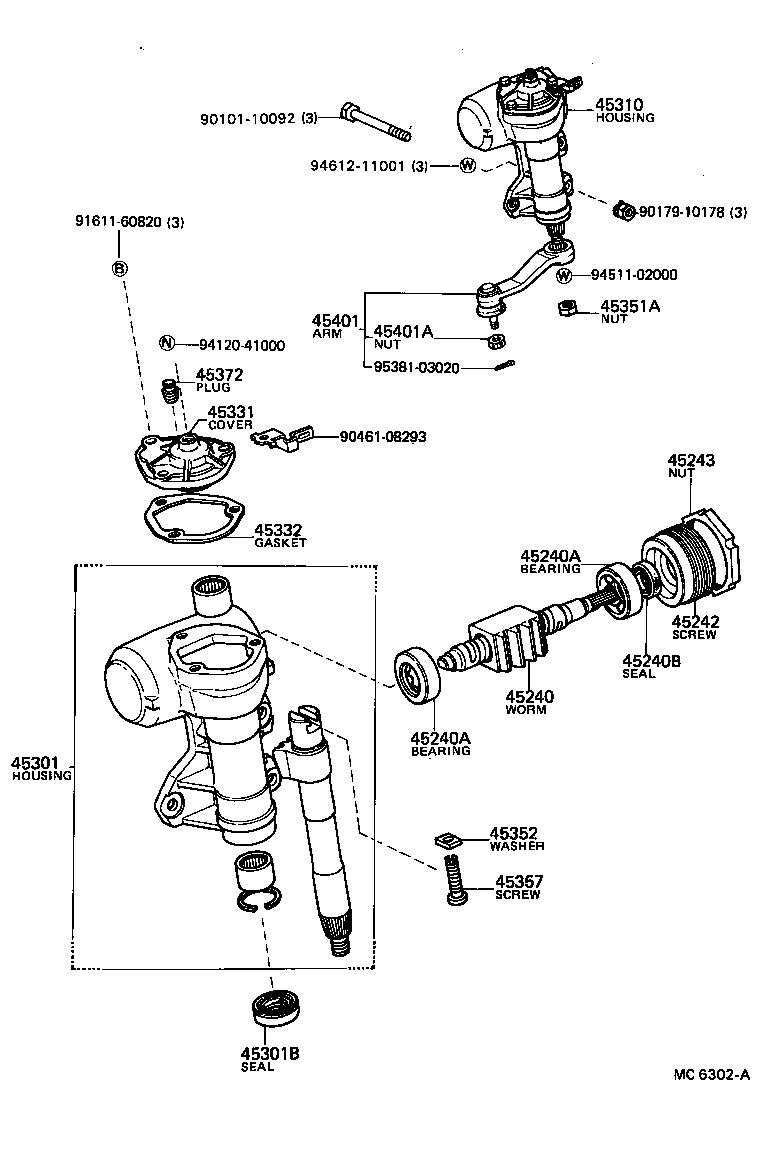

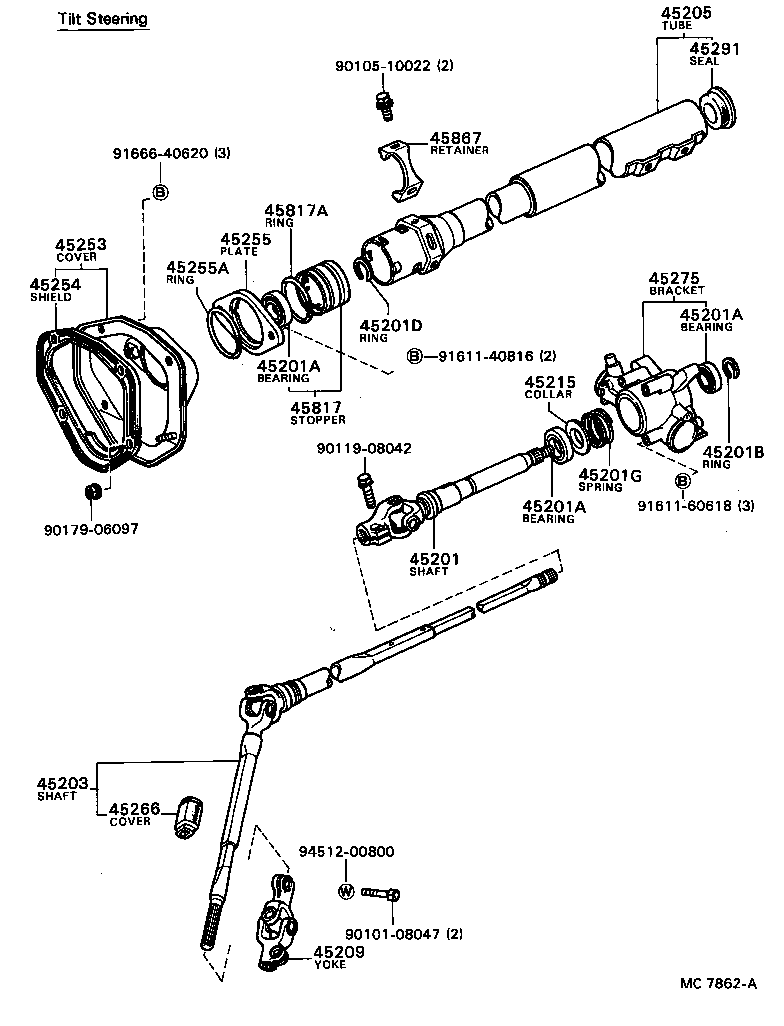

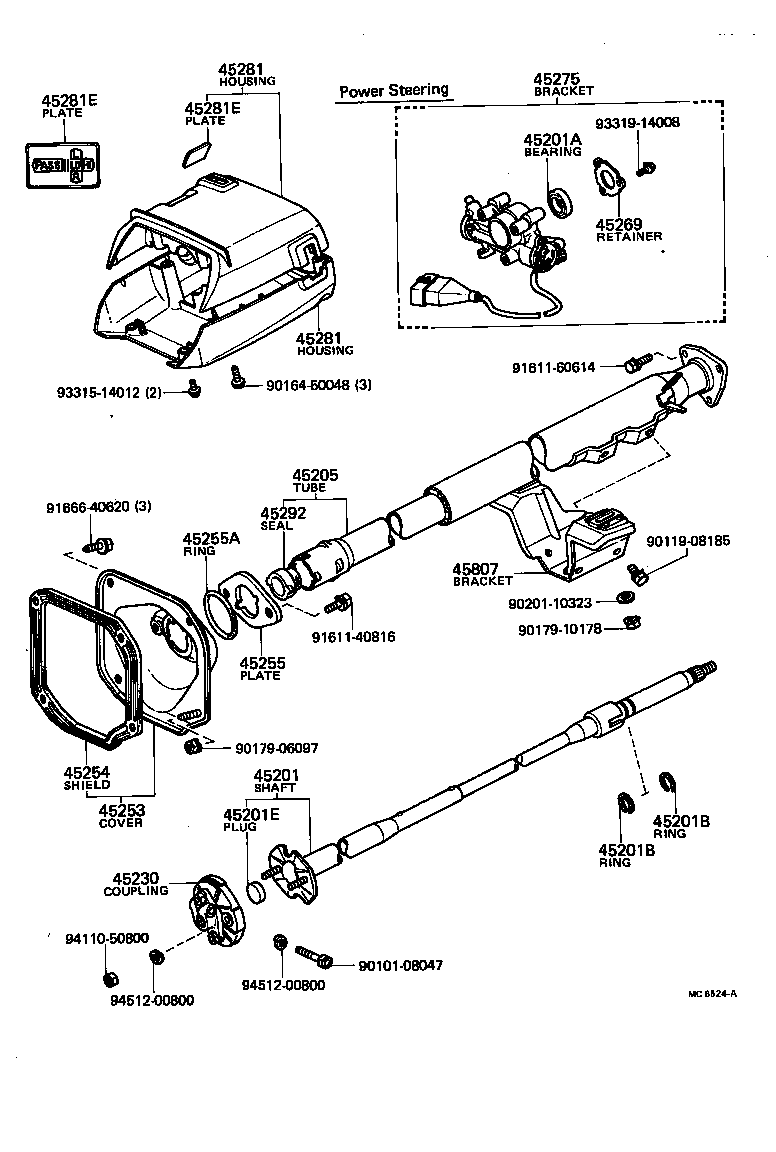

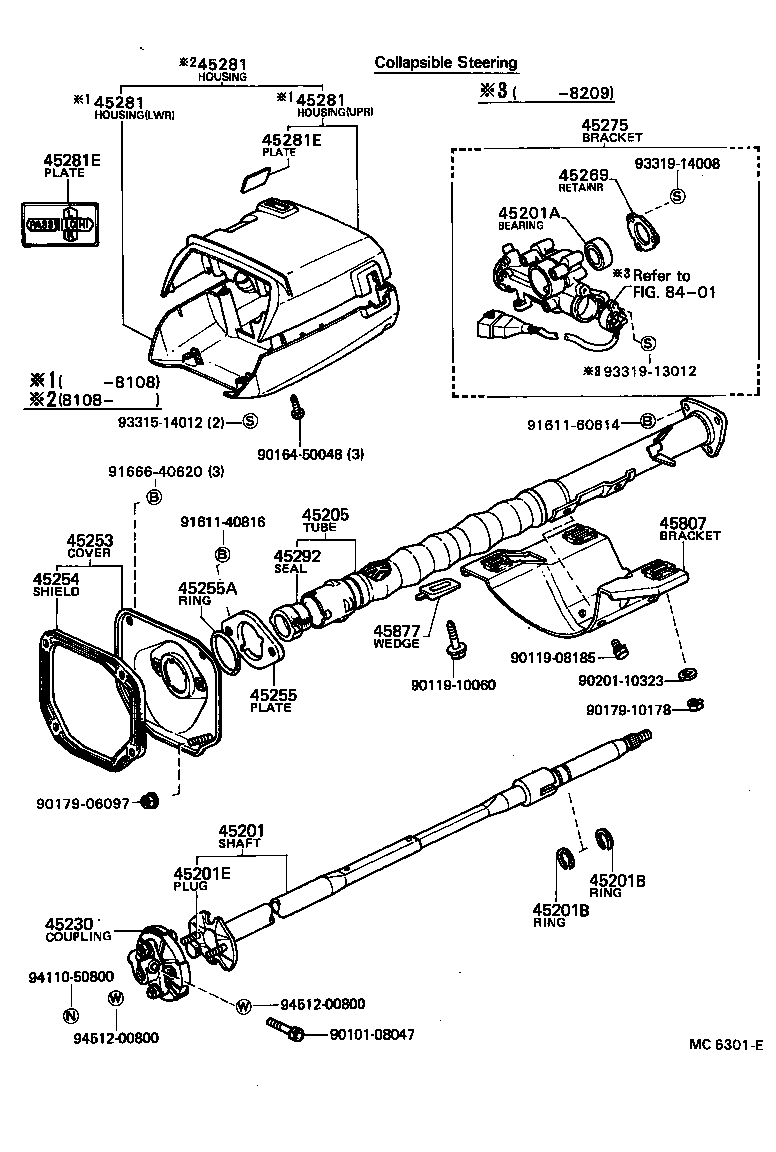

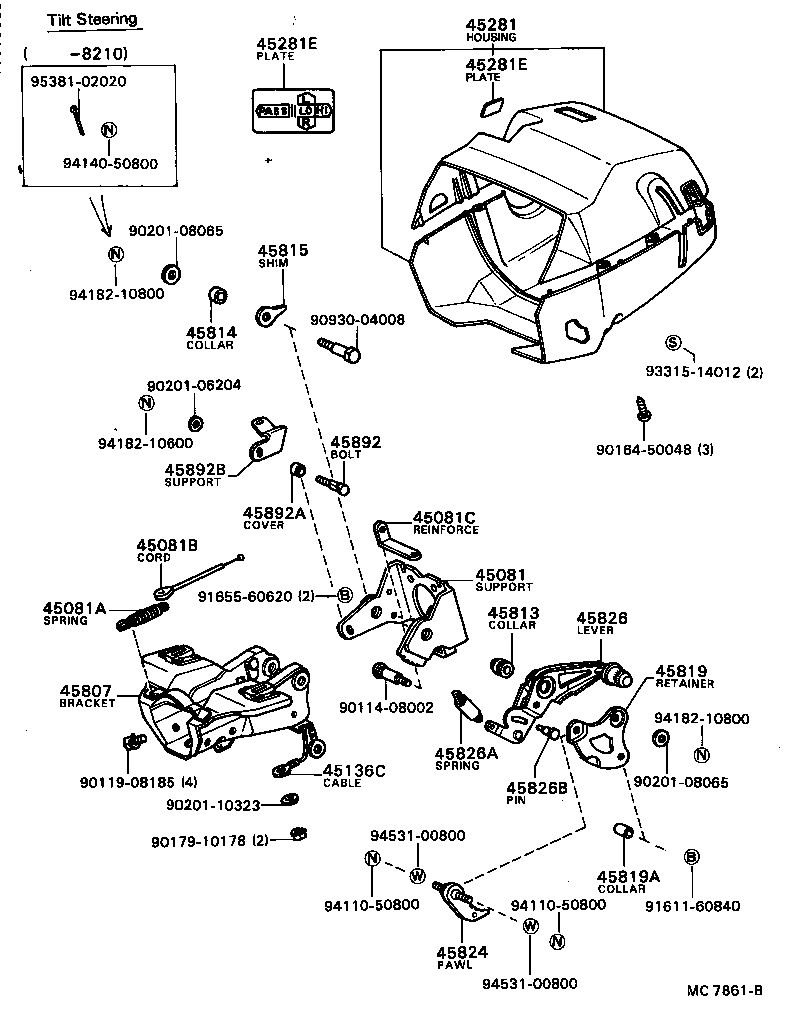

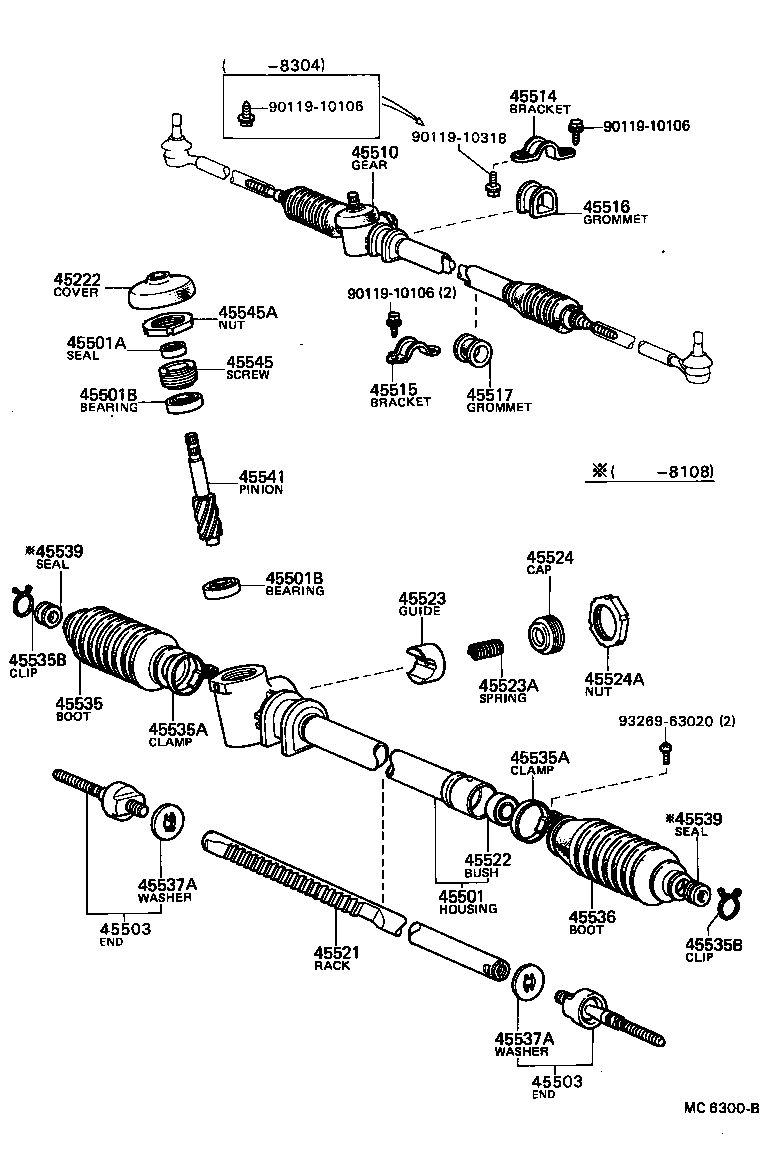

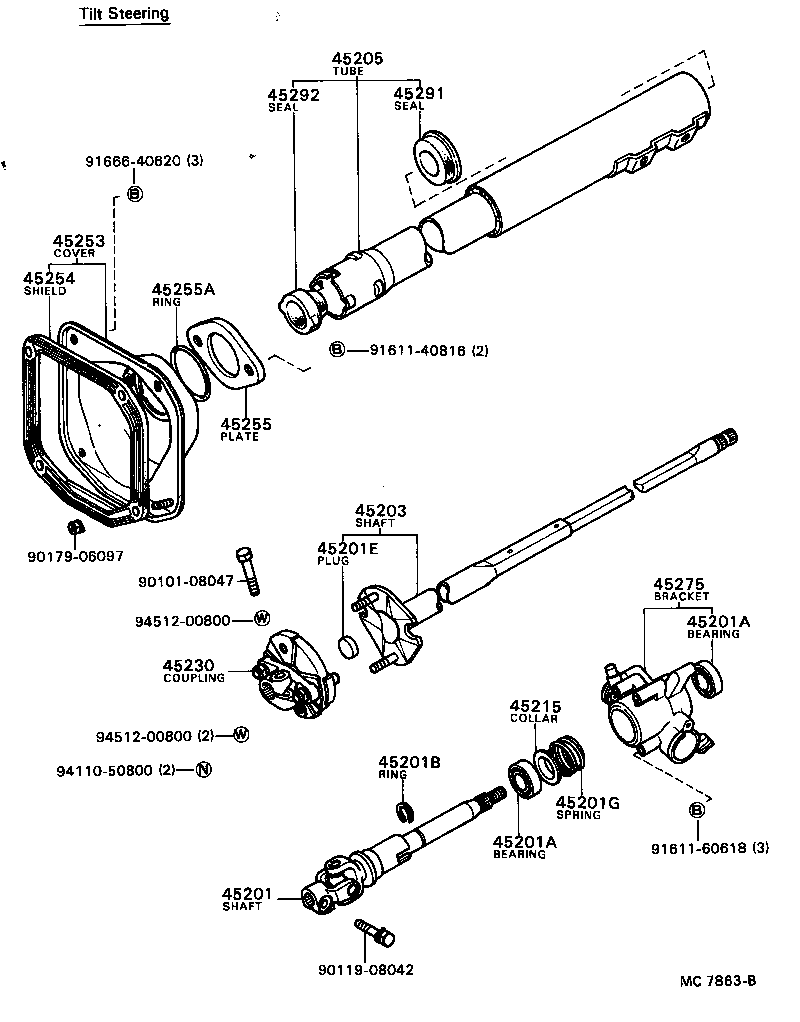

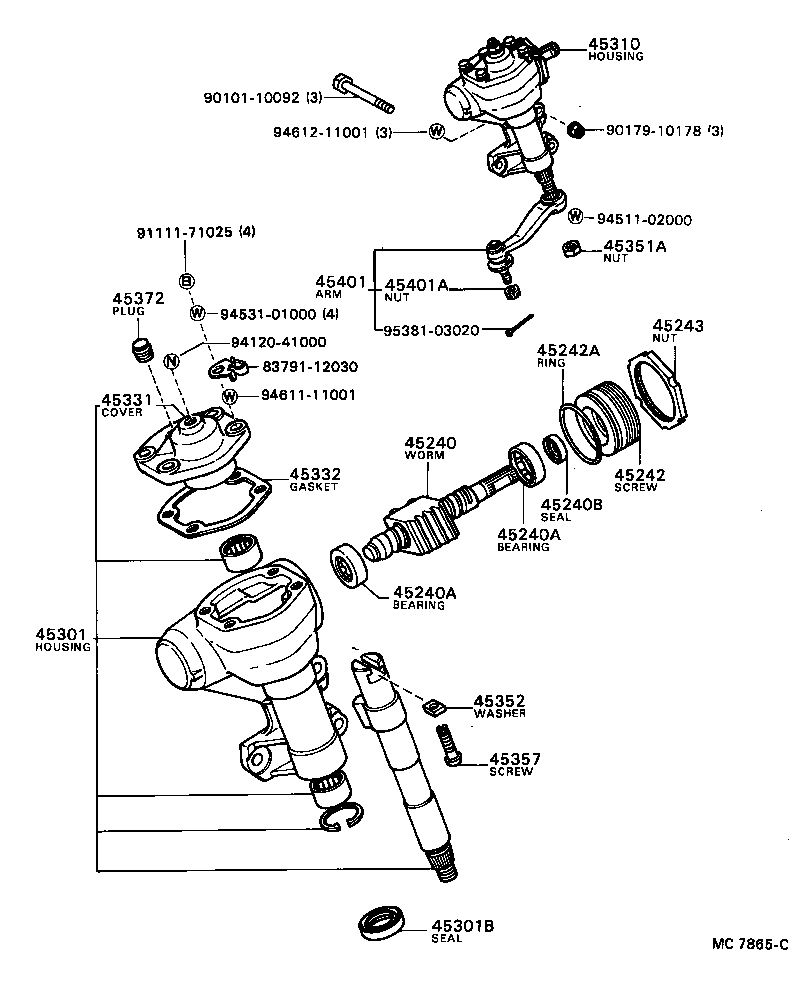

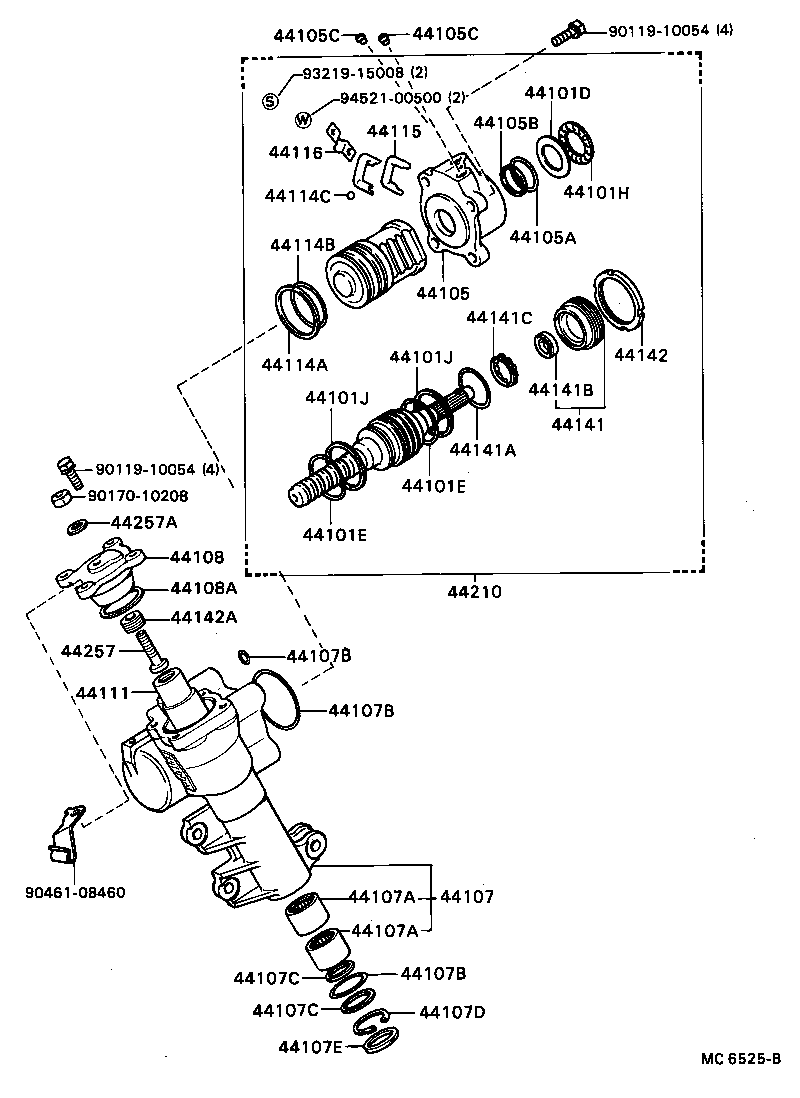

Figure MC6299F MC6299F 1979-03 → — Figure MC6299F MC6299F 1981-08 → — Figure MC6301E MC6301E 1979-03 → 1981-08 Figure MC6301E MC6301E 1981-08 → — Figure MC6524A MC6524A 1979-08 → 1981-08 Figure MC7861B MC7861B 1981-08 → — Figure MC7862A MC7862A 1981-08 → — Figure MC7863B MC7863B 1981-08 → — Figure MC6300B MC6300B 1979-03 → — Figure MC6300B MC6300B 1981-08 → — Figure MC8819B MC8819B 1981-08 → — Figure MC7864F MC7864F 1981-08 → — Figure MC6302A MC6302A 1979-03 → 1981-08 Figure MC6302A MC6302A 1982-02 → — Figure MC7865C MC7865C 1981-08 → — Figure MCA625 MCA625 1979-08 → 1981-08 Figure MC6525B MC6525B 1979-08 → 1981-08

Part groups

PNCDescription
44101D Washer, Plate(FOR STEERING WORM)
44101E Ring, O(FOR STEERING WORM)
44101H Bearing, Thrust Needle Roller(FOR STEERING WORM)
44101J Ring(FOR STEERING WORM)
44101K Worm Kit, Power Steering
44105 Housing Sub-assy, Valve
44105A Ring, O(FOR VALVE HOUSING)
44105B Ring(FOR VALVE HOUSING)
44105C Seat, Union(FOR VALVE BODY HOUSING)
44107 Housing Sub-assy, Power Steering Gear
44107A Bearing, Needle Roller(FOR POWER STEERING GEAR HOUSING)
44107B Ring, O(FOR POWER STEERING GEAR HOUSING)
44107C Ring(FOR POWER STEERING GEAR HOUSING)
44107D Ring, Hole Snap(FOR POWER STEERING GEAR HOUSING)
44107E Seal, Oil(FOR POWER STEERING GEAR HOUSING)
44108 Cover Sub-assy, Side
44108A Ring, O(FOR SIDE COVER)
44110 Gear Assy, Power Steering
44110K Gasket Kit, Power Steering Gear
44111 Shaft, Cross
44111A Nut, Hexagon(FOR CROSS SHAFT TO PITMAN ARM SETTING)
44111K Gasket Kit, Power Steering Cross Shaft Overhaul
44114A Ring(FOR POWER PISTON NUT)
44114B Ring, O(FOR POWER PISTON NUT)
44114C Ball(FOR POWER PISTON NUT)
44115 Guide, Ball
44116 Clamp, Ball Guide
44141 Plug, Adjuster
44141A Ring, O(FOR ADJUSTER PLUG)
44141B Seal, Oil(FOR ADJUSTER PLUG)
44141C Bearing(FOR ADJUSTER PLUG)
44142 Nut, Lock
44142A Nut, Lock, NO.1
44201 Valve Sub-assy, Power Steering Control
44201C Ring(FOR POWER STEERING CONTROL VALVE)
44201D Bearing, Thrust Needle Roller(FOR CONTROL VALVE)
44201E Washer, Plate(FOR POWER STEERING CONTROL VALVE)
44204 Rack Sub-assy, Power Steering
44204A Ring(FOR RACK STEERING PISTON)
44205 Stopper Sub-assy, Cylinder End
44205A Ring, O(FOR CYLINDER END STOPPER)
44205B Seal, Oil(FOR CYLINDER END STOPPER)
44210 Valve Assy, Power Steering Control
44210B Seat, Union(FOR POWER STEERING CONTROL VALVE)
44210K Gasket Kit, Power Steering Control Valve Overhaul
44211 Housing, Control Valve
44211A Ring, O(FOR CONTROL VALVE HOUSING)
44211B Ring(FOR CONTROL VALVE HOUSING)
44222A Cover, Dust(FOR POWER STEERING GEAR)
44250 Gear Assy, Power Steering(FOR RACK & PINION)
44250K Gasket Kit, Power Steering Gear(FOR RACK & PINION)
44251 Arm, Pitman
44251A Nut, Castle(FOR PITMAN ARM)
44253 Housing, Power Steering Rack
44253A Seal, Oil(FOR POWER STEERING RACK HOUSING)
44256 Nut, Cylinder End Stopper
44257 Screw, Cross Shaft Adjusting
44257A Washer, Seal(FOR CROSS SHAFT ADJUSTING SCREW)
44267 Guide, Rack End
44277 Seat, Rack Guide
44418A Tube, Steering Right Turn Pressure
44418B Seat, Union(FOR STEERING TURN PRESSURE TUBE)
44419A Tube, Steering Left Turn Pressure
44503E End Sub-assy, Steering Rack(FOR POWER STEERING)
44503F Washer, Claw(FOR POWER STEERING RACK END)
44523G Guide, Rack(FOR POWER STEERING)
44523H Spring(FOR POWER STEERING RACK GUIDE)
44524A Cap, Rack Guide Spring(FOR POWER STEERING)
44524B Nut(FOR POWER STEERING RACK GUIDE CAP)
44535B Boot, Steering Rack NO.1(FOR POWER STEERING)
44535C Clamp(FOR POWER STEERING RACK BOOT)
44535D Clip(FOR POWER STEERING RACK BOOT)
44536B Boot, Steering Rack NO.2(FOR POWER STEERING)
45081 Support Sub-assy, Tilt Steering
45081A Spring, Tension(FOR TILT STEERING)
45081B Cord(FOR TILT STEERING)
45081C Reinforce, Tilt Steering Support
45136C Cable, Bond(FOR HORN EARTH)
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D Ring(FOR STEERING MAIN SHAFT)
45201E Plug, Plate(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45202 Shaft Sub-assy, Steering Intermediate
45203 Shaft Sub-assy, Steering Intermediate, NO.2
45205 Tube Sub-assy, Steering Column
45209 Yoke Sub-assy, Steering Sliding
45215 Collar, Main Shaft Bearing Thrust
45222 Cover, Steering Gear Dust
45230 Coupling Assy, Flexible
45240 Worm Assy, Steering
45240A Bearing(FOR STEERING WORM)
45240B Seal, Oil(FOR STEERING WORM)
45242 Screw, Worm Bearing Adjusting
45242A Ring, O(FOR WORM BEARING ADJUSTING SCREW)
45243 Nut, Worm Bearing Adjusting Screw Lock
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45255 Plate, Steering Column Hole Cover
45255A Grommet OR Ring, O(FOR STEERING COLUMN CLAMP)
45266 Cover, Steering Intermediate Shaft Dust
45269 Retainer, Main Shaft Bearing
45275 Bracket, Steering Column, Upper
45281 Housing, Steering Column
45281E Plate, Safety Caution
45291 Seal, Main Shaft Upper Dust
45292 Seal, Main Shaft Lower Dust
45301 Housing Sub-assy, Steering Gear
45301B Seal, Oil(FOR SECTOR SHAFT)
45310 Housing Assy, Steering Gear
45331 Cover, Sector Shaft End
45332 Gasket, Sector Shaft End Cover
45351A Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352 Washer, Sector Shaft Thrust
45357 Screw, Sector Shaft Adjusting
45372 Plug, Steering Gear Housing Oil
45401 Arm Sub-assy, Pitman
45401A Nut, Castle(FOR PITMAN ARM)
45501 Housing Sub-assy, Steering Rack
45501A Seal, Type T Oil(FOR STEERING RACK HOUSING)
45501B Bearing, Radial Ball(FOR STEERING RACK HOUSING)
45503 End Sub-assy, Steering Rack
45510 Gear Assy, Steering
45514 Bracket, Steering Rack Housing, NO.1
45515 Bracket, Steering Rack Housing, NO.2
45516 Grommet, Steering Rack Housing, NO.1
45517 Grommet, Steering Rack Housing, NO.2
45521 Rack, Steering
45522 Bush, Steering Rack
45523 Guide, Rack(FOR STEERING GEAR)
45523A Spring(FOR STEERING GEAR RACK GUIDE)
45524 Cap, Steering Rack Guide Spring
45524A Nut(FOR STEERING RACK GUIDE SPRING CAP)
45535 Boot, Steering Rack, NO.1
45535A Clamp(FOR STEERING RACK BOOT)
45535B Clip(FOR STEERING RACK BOOT)
45536 Boot, Steering Rack, NO.2
45537A Washer, Claw(FOR STEERING RACK END LOCK)
45539 Guide, Rear Steering Control Cable, NO.1
45541 Pinion, Steering
45545 Screw, Pinion Bearing Adjusting
45545A Nut(FOR PINION BEARING ADJUSTING SCREW)
45807 Bracket Sub-assy, Steering Column Upper Support
45813 Collar, Tilt Steering Support, NO.1
45814 Collar, Tilt Steering Support, NO.2
45815 Shim, Tilt Steering Support
45817 Stopper, Steering Shaft Thrust
45817A Ring, O(FOR STEERING SHAFT THRUST STOPPER)
45819 Retainer, Tilt Lever
45819A Collar(FOR TILT LEVER RETAINER)
45824 Pawl, Tilt Steering
45826 Lever, Steering Tilt
45826A Spring, Tension(FOR STEERING TILT LEVER)
45826B Pin(FOR STEERING TILT LEVER)
45867 Retainer, Steering Main Shaft Stopper
45877 Wedge, Caster(FOR STEERING COLUMN TUBE SETTING)
45892 Bolt, Tilt Steering Support Stopper
45892A Cover, Tilt Steering Support Stopper
45892B Support, Tilt Steering Column Cover
