Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

13 part groups · 5 illustrations

Illustrations

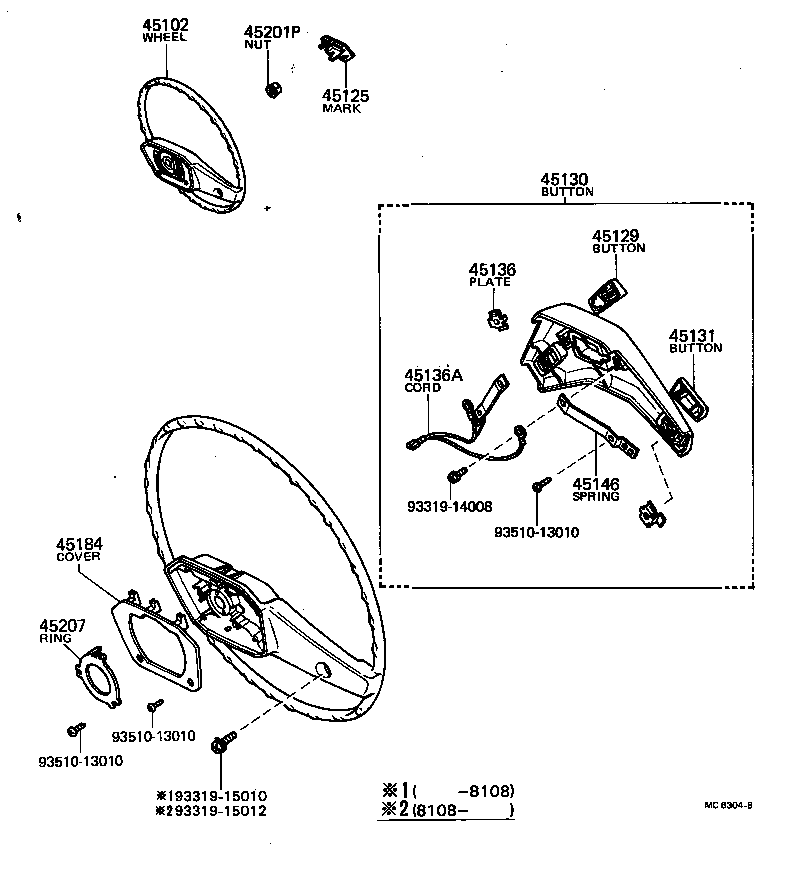

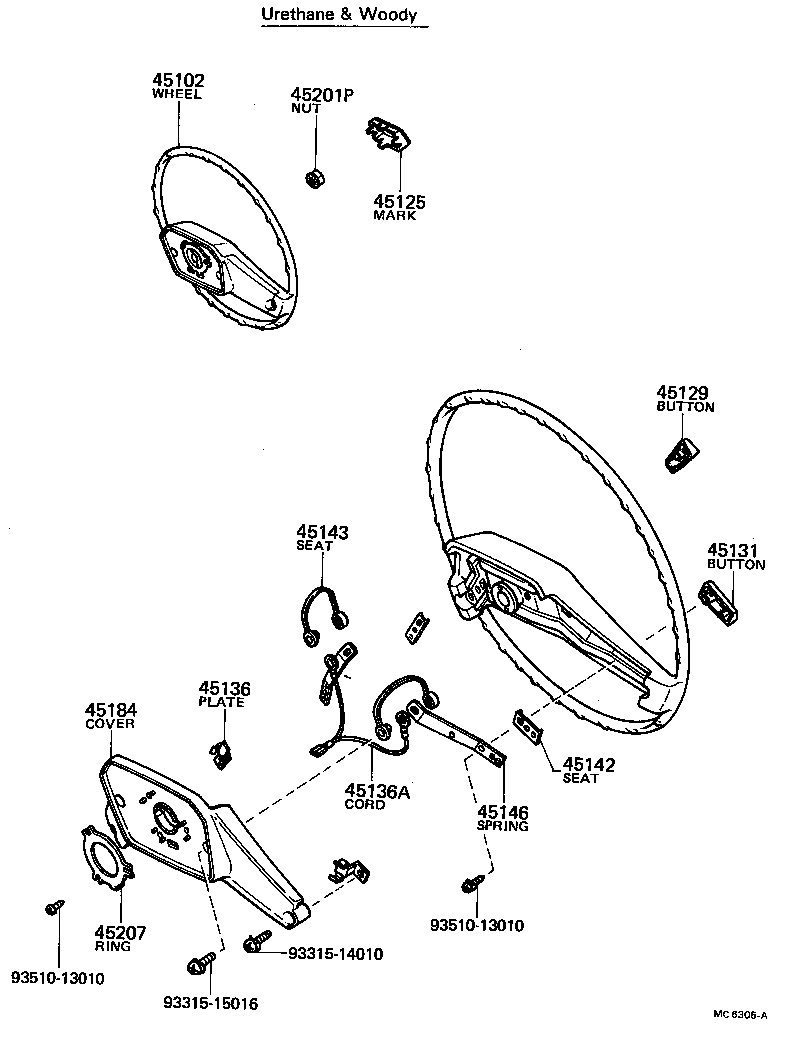

Figure MC6303 MC6303 1979-03 → 1981-08 Figure MC7905 MC7905 1981-08 → — Figure MC6304B MC6304B 1979-03 → — Figure MC6305A MC6305A 1979-03 → — Figure MC6305A MC6305A 1981-08 → —

Part groups

PNCDescription
45102 Wheel Sub-assy, Steering
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45142 Seat, Horn Button Contact, NO.1
45143 Seat, Horn Button Contact, NO.2
45146 Spring, Horn Button Contact
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
