Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

19 part groups · 4 illustrations

Illustrations

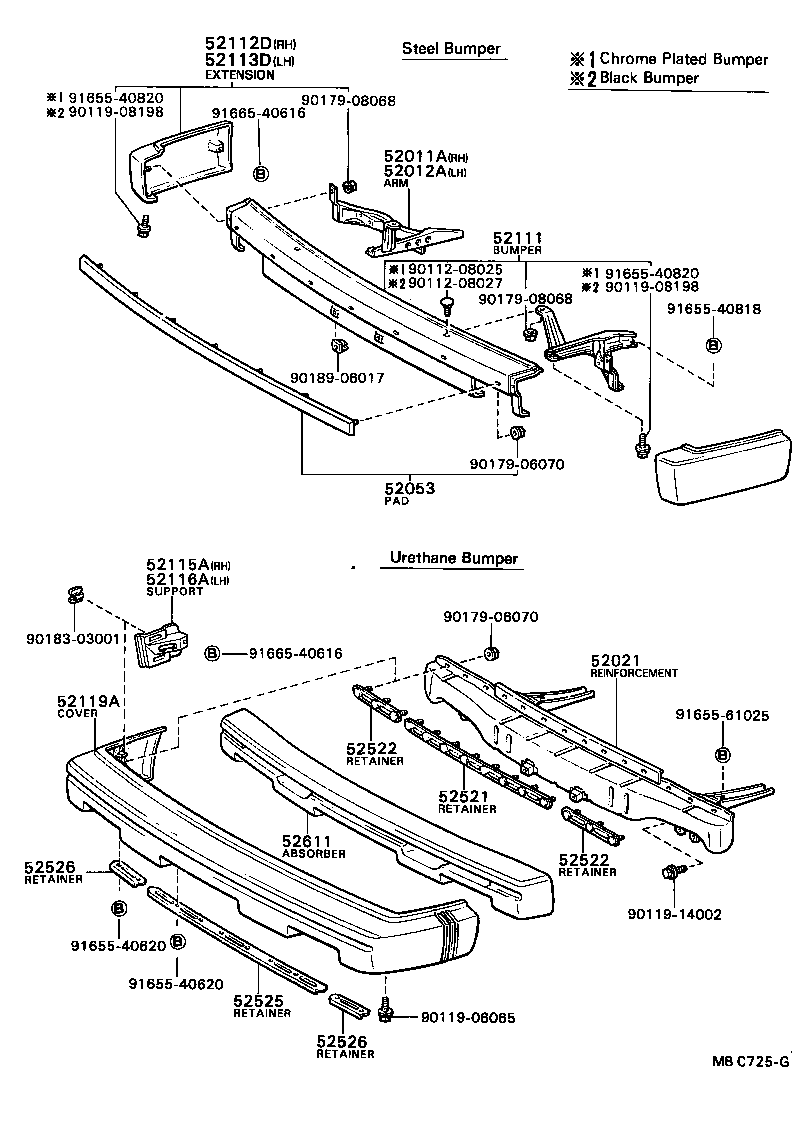

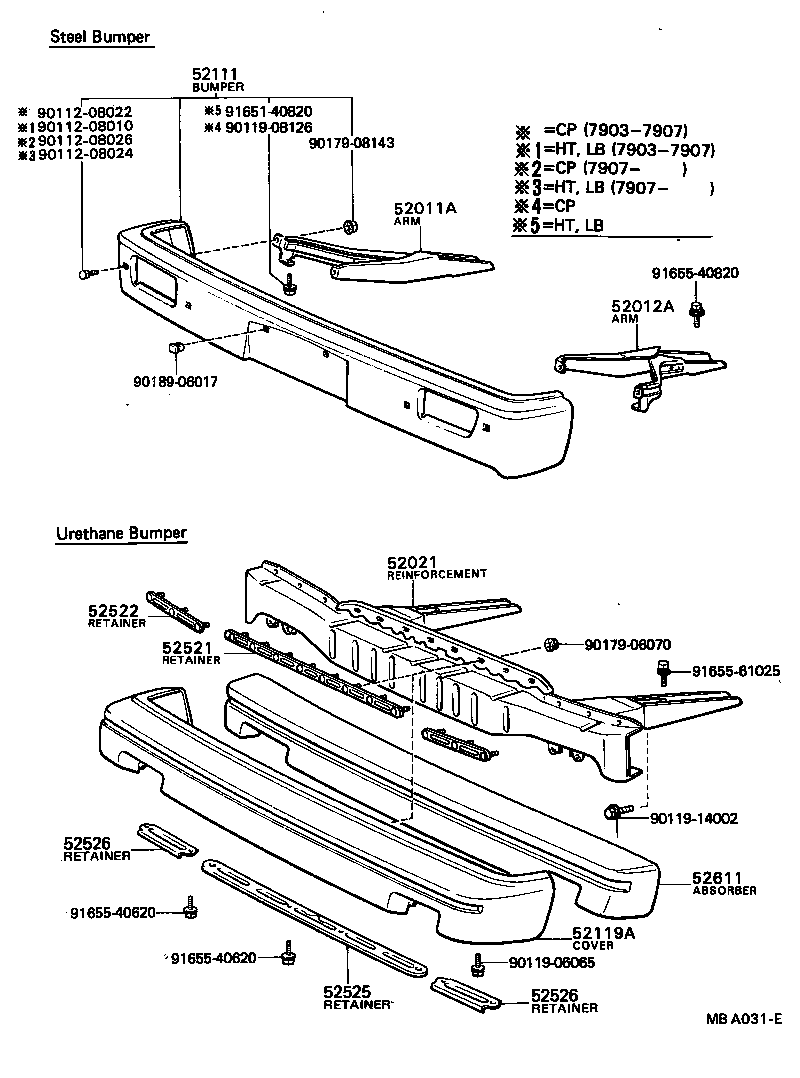

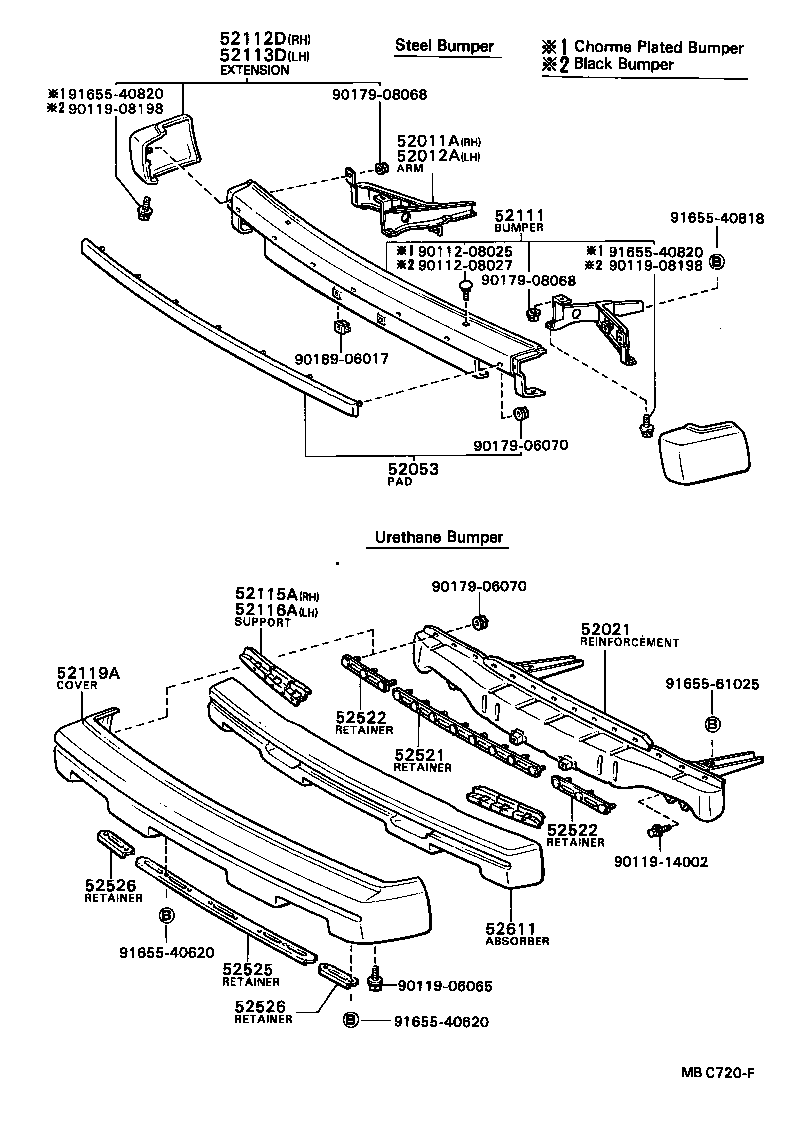

Figure MBA030E MBA030E 1979-03 → 1981-08 Figure MBC725G MBC725G 1981-08 → — Figure MBA031E MBA031E 1979-03 → 1981-08 Figure MBC720F MBC720F 1981-08 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52021 Reinforcement Sub-assy, Front Bumper
52053 Pad Sub-assy, Front Bumper
52111 Bumper Assy, Front
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52131 Retainer, Front Bumper Side, RH
52132 Retainer, Front Bumper Side, LH
52192 Plate, Bumper Moulding Mounting, Front
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52611 Absorber, Front Bumper Energy
52701 Moulding Sub-assy, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
