Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

8 part groups · 2 illustrations

Illustrations

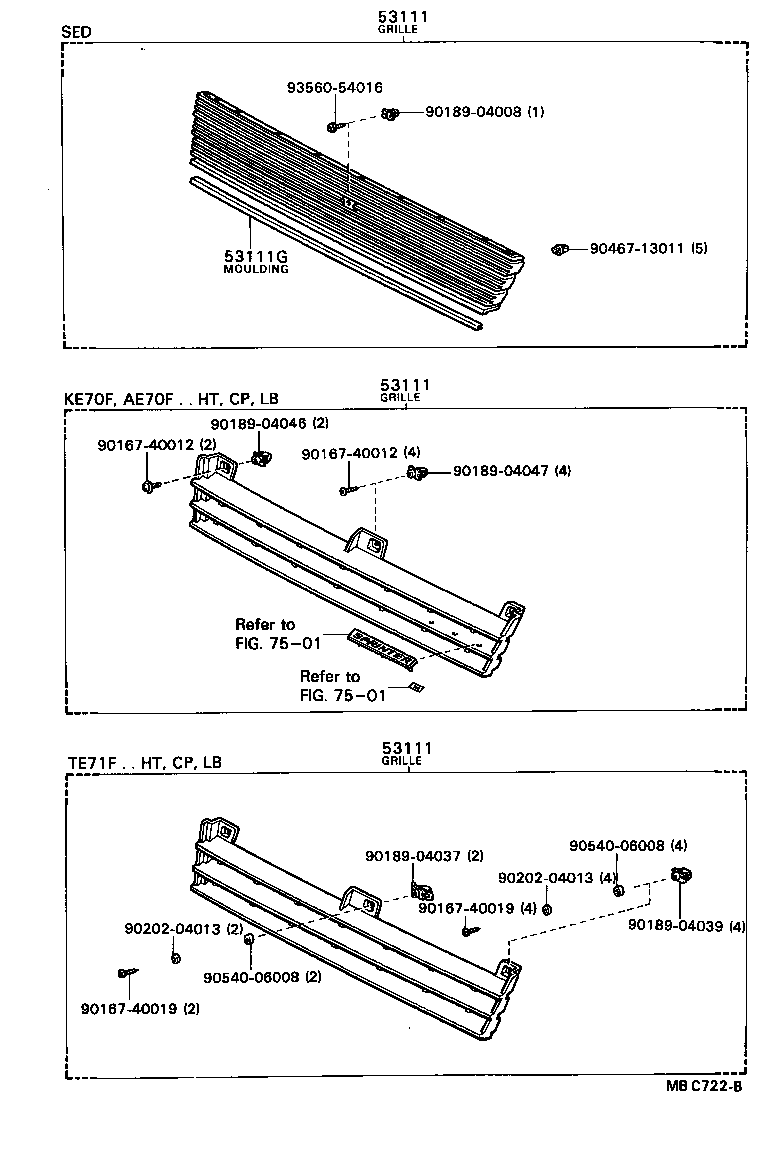

Figure MBA036B MBA036B 1979-03 → 1981-08 Figure MBC722B MBC722B 1981-08 → —

Part groups

PNCDescription
53031 Housing, Headlamp, RH
53032 Housing, Headlamp, LH
53111 Grille, Radiator
53111C Moulding, Radiator Grille, Upper
53111D Moulding, Radiator Grille, RH
53111E Moulding, Radiator Grille, LH
53111G Moulding, Radiator Grille, Lower
53111J Protector, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
