Toyota Sprinter
1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan
Discontinued model
Data version 1983-12

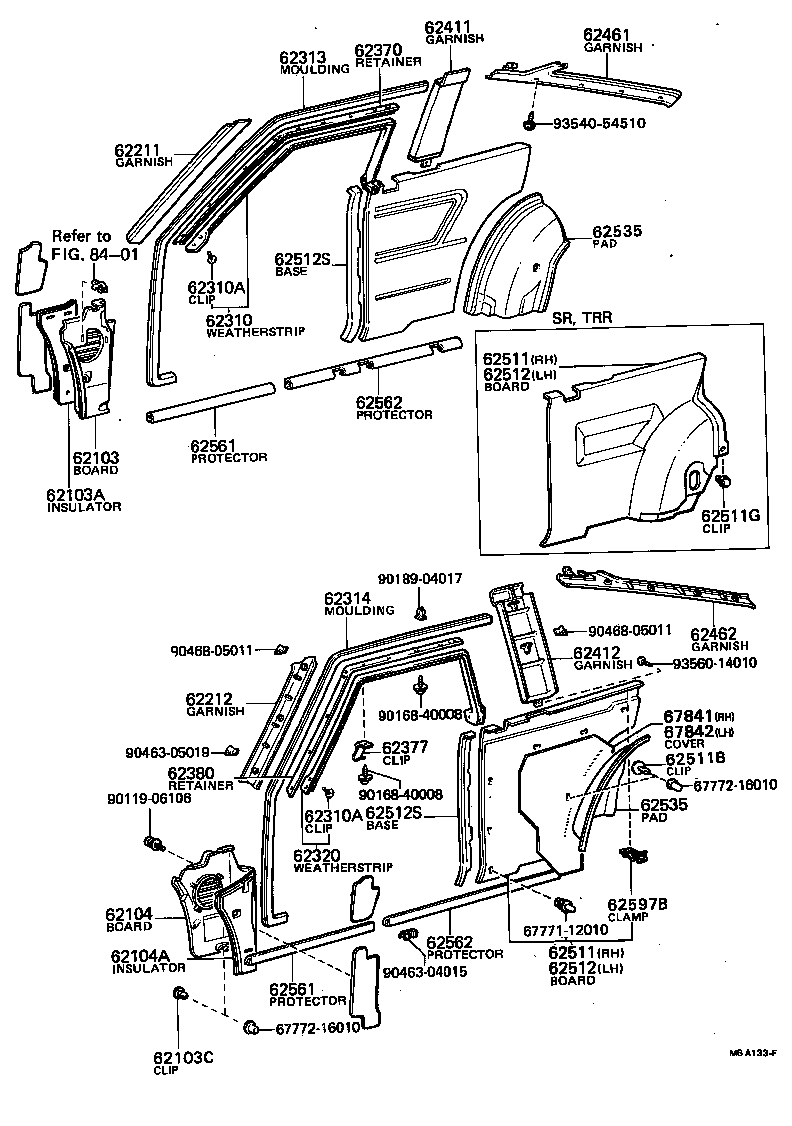

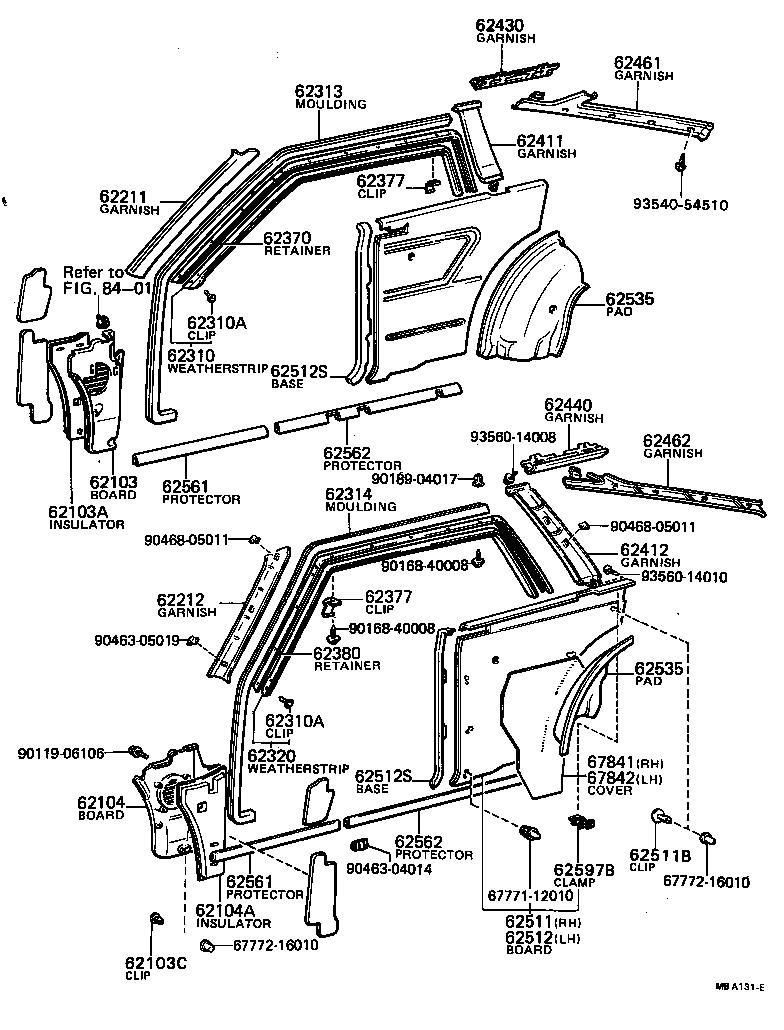

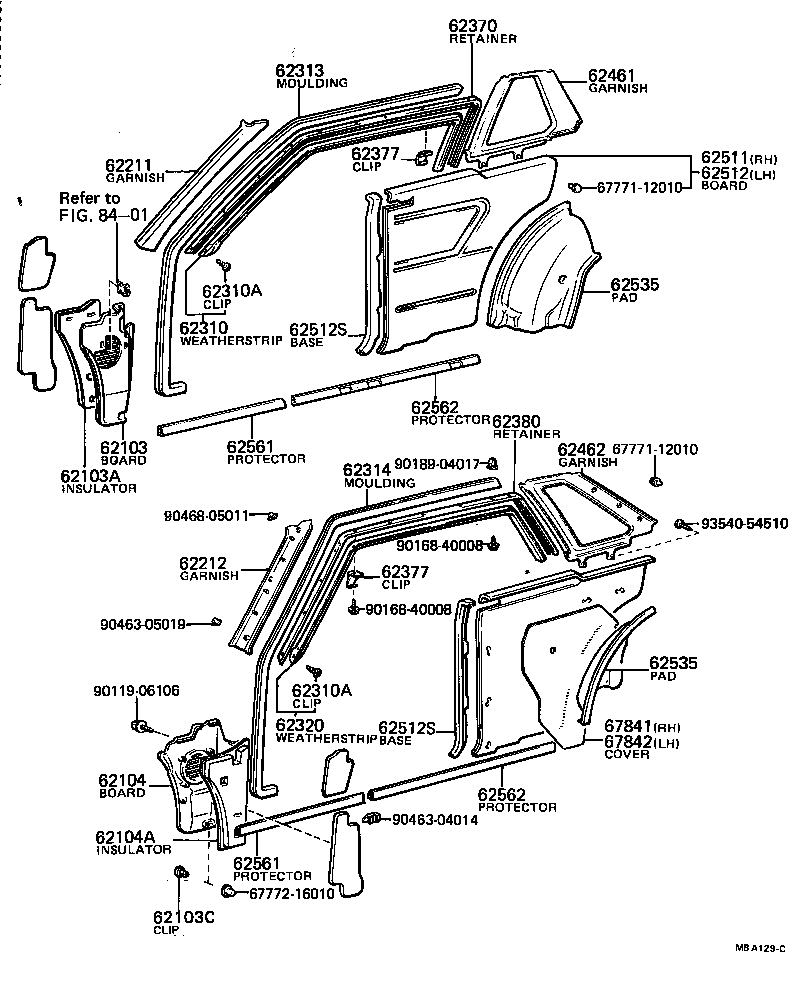

Inside Trim Board & Door Opening Trim Moulding
42 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62103A | Insulator Sub-assy, Cowl Side, RH |
| 62103C | Clip, Cowl Side Trim Board Set |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62104A | Insulator Sub-assy, Cowl Side, LH |
| 62161 | Cover, Cowl Side Trim Service Hole, Upper |
| 62162 | Cover, Cowl Side Trim Service Hole, Lower |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62310 | Weatherstrip, Roof Side Rail, RH |
| 62310A | Clip, Roof Side Rail Weatherstrip |
| 62313 | Moulding, Front Door Opening Trim, RH |
| 62314 | Moulding, Front Door Opening Trim, LH |
| 62315 | Moulding, Rear Door Opening Trim, RH |
| 62316 | Moulding, Rear Door Opening Trim, LH |
| 62320 | Weatherstrip, Roof Side Rail, LH |
| 62370 | Retainer Assy, Roof Side Rail Weatherstrip, RH |
| 62377 | Clip, Door Window Glass |
| 62380 | Retainer Assy, Roof Side Rail Weatherstrip, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412 | Garnish, Center Pillar, LH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62461 | Garnish, Roof Side Trim, RH |
| 62461C | Moulding, Quarter Vent Louver Garnish |
| 62461F | Clip (FOR ROOF SIDE TRIM GARNISH) |
| 62462 | Garnish, Roof Side Trim, LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511G | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 62512S | Base, Quarter Trim, Front |
| 62535 | Pad, Quarter Wheel House Trim |
| 62561 | Protector, Rocker Panel, Inner Front |
| 62562 | Protector, Rocker Panel, Inner Rear |
| 62597B | Clamp, Quarter Trim |
| 67841 | Cover, Quarter Service Hole, NO.1 RH |
| 67842 | Cover, Quarter Service Hole, NO.1 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
