Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

16 part groups · 3 illustrations

Illustrations

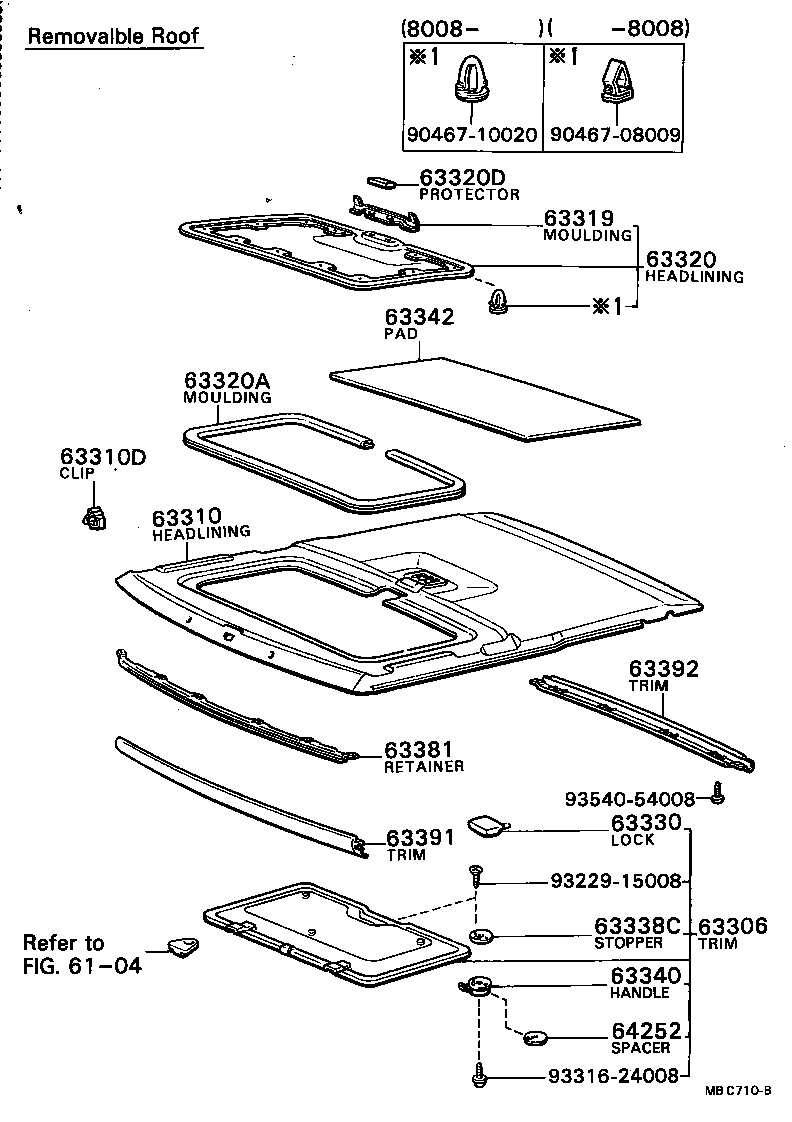

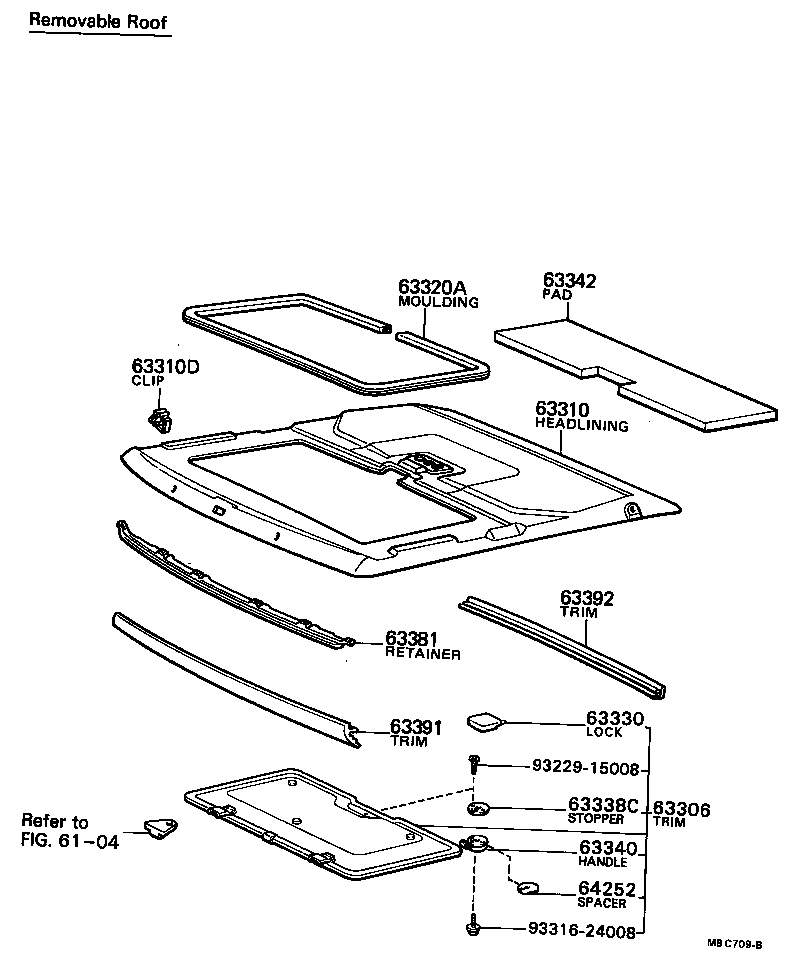

Figure MBA065A MBA065A 1979-03 → — Figure MBC709B MBC709B 1981-08 → — Figure MBC710B MBC710B 1979-08 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63319 Moulding, Roof Inner Board Set, Rear
63320 Headlining Assy, Sun Roof OR Removable Roof
63320A Moulding, Sun Roof OR Removable Roof Opening Trim
63320D Protector, Sunshade Trim
63330 Lock Assy, Sunshade Trim
63338C Stopper, Sunshade Lock, NO.2
63340 Handle Assy, Sunshade Trim Lock
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63381 Retainer, Headlining, Front
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
64252 Spacer, Sunshade Trim
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
