Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

17 part groups · 2 illustrations

Illustrations

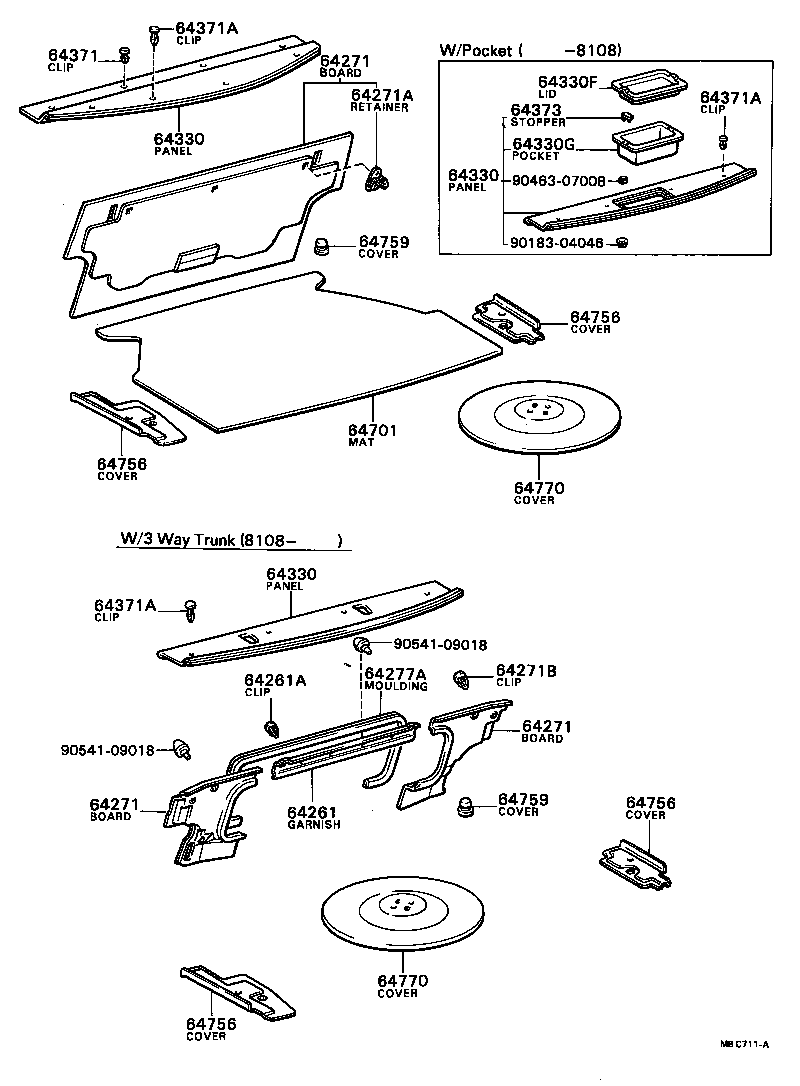

Figure MBA066B MBA066B 1979-03 → — Figure MBC711A MBC711A 1979-03 → —

Part groups

PNCDescription
64261 Garnish, Room Partition
64261A Clip(FOR ROOM PARTITION GARNISH)
64271 Board, Room Partition, NO.1
64271A Retainer, Room Partition Board
64271B Clip(FOR ROOM PARTITION BOARD)
64277A Moulding, Room Partition Trim
64330 Panel Assy, Package Tray Trim
64330F Lid Sub-assy, Package Tray Trim Pocket
64330G Pocket Sub-assy, Package Tray Trim
64371 Retainer, Package Tray Trim
64371A Clip(FOR PACKAGE TRAY TRIM)
64373 Stopper, Package Tray Trim
64383 Grille, Speaker, Rear
64701 Mat Sub-assy, Luggage Compartment
64756 Cover, Luggage Compartment Side
64759 Cover, Shock Absorber Head
64770 Cover Assy, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
