Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

30 part groups · 4 illustrations

Illustrations

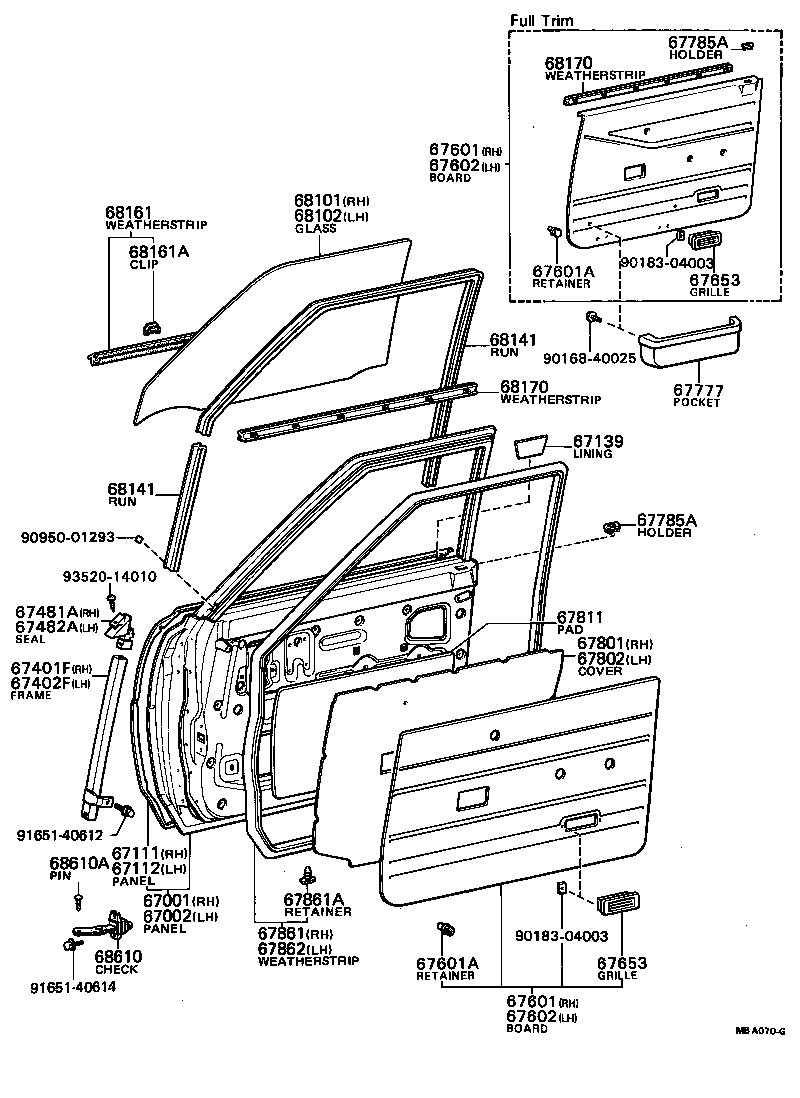

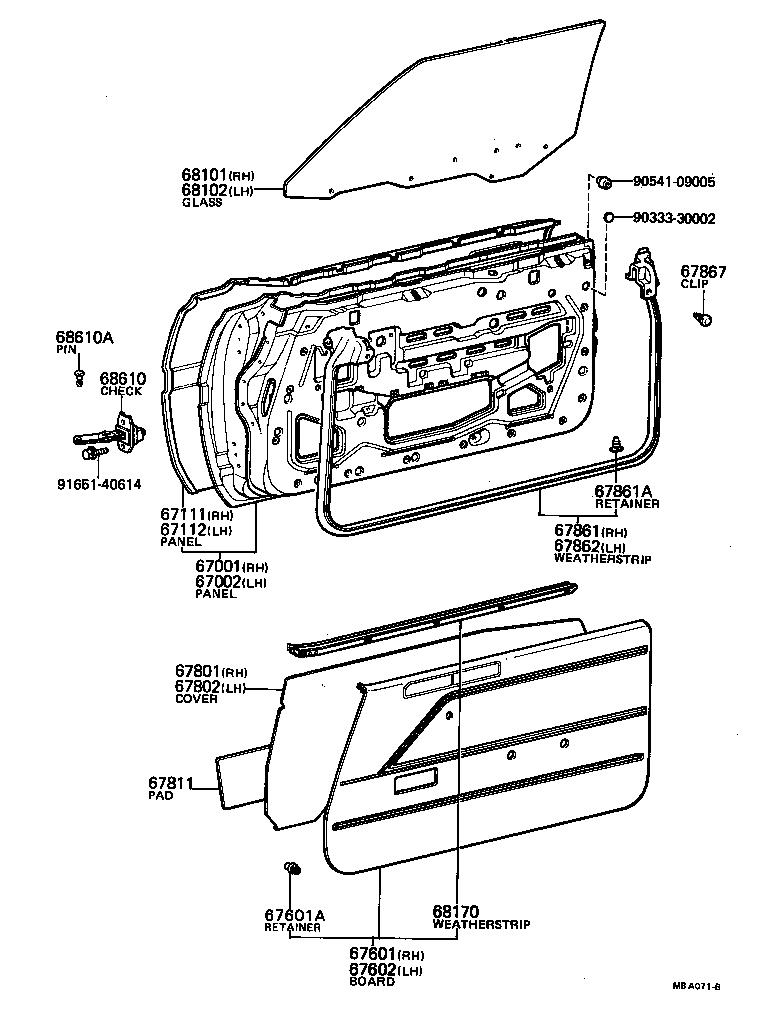

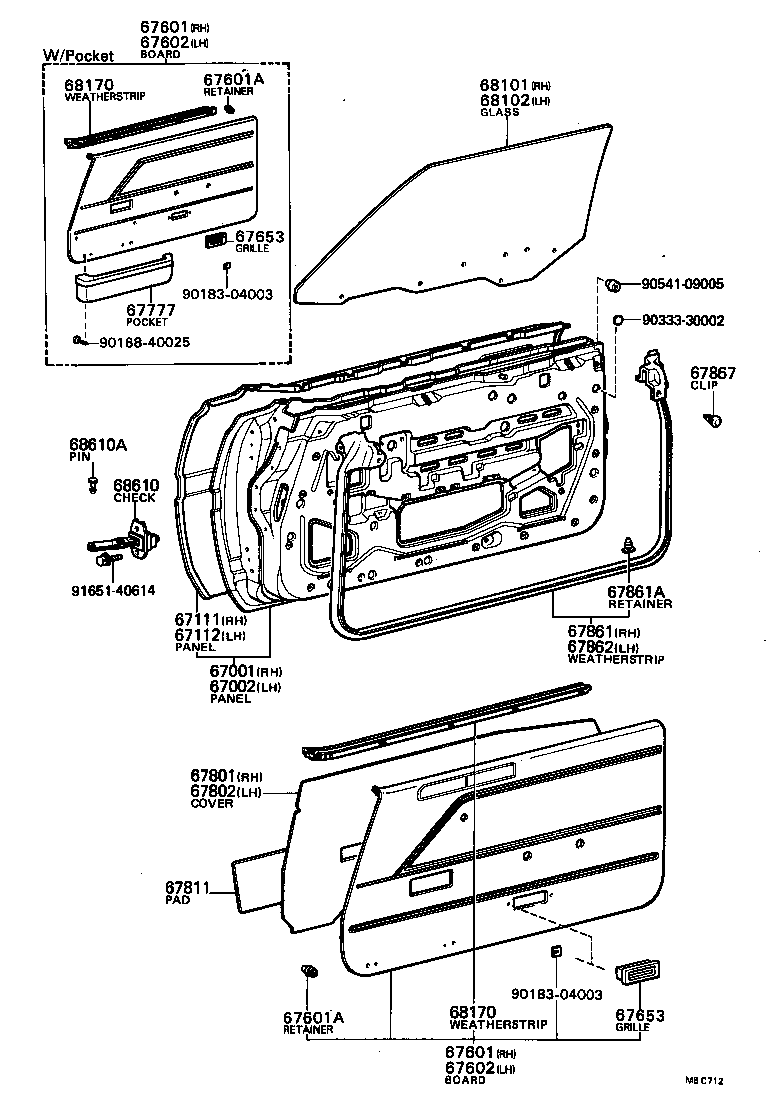

Figure MBA069F MBA069F 1979-03 → 1981-08 Figure MBA070G MBA070G 1981-08 → — Figure MBA071B MBA071B 1979-03 → 1981-08 Figure MBC712 MBC712 1981-08 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67139 Lining, Door Outside Panel Reinforcement
67401F Frame Sub-assy, Front Door, Front Lower RH
67402F Frame Sub-assy, Front Door, Front Lower LH
67481A Seal, Front Door Front Lower Frame, RH
67482A Seal, Front Door Front Lower Frame, LH
67601 Board Sub-assy, Front Door Trim, RH
67601A Retainer(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67653 Grille, Front Door, Ventilation
67777 Pocket, Front Door Trim, RH
67785A Holder, Door Locking Button Collar(FOR FRONT DOOR)
67801 Cover Sub-assy, Front Door Hole, NO.1 RH
67802 Cover Sub-assy, Front Door Hole, NO.1 LH
67811 Pad, Front Door Silencer
67861 Weatherstrip, Front Door, RH
67861A Retainer(FOR FRONT DOOR WEATHERSTRIP)
67862 Weatherstrip, Front Door, LH
67867 Clip, Door Weatherstrip
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141 Run, Front Door Glass
68161 Weatherstrip, Front Door Glass, Outer
68161A Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170 Weatherstrip Assy, Front Door Glass, Inner
68610 Check Assy, Front Door
68610A Pin(FOR FRONT DOOR CHECK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
