Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

6 part groups · 2 illustrations

Illustrations

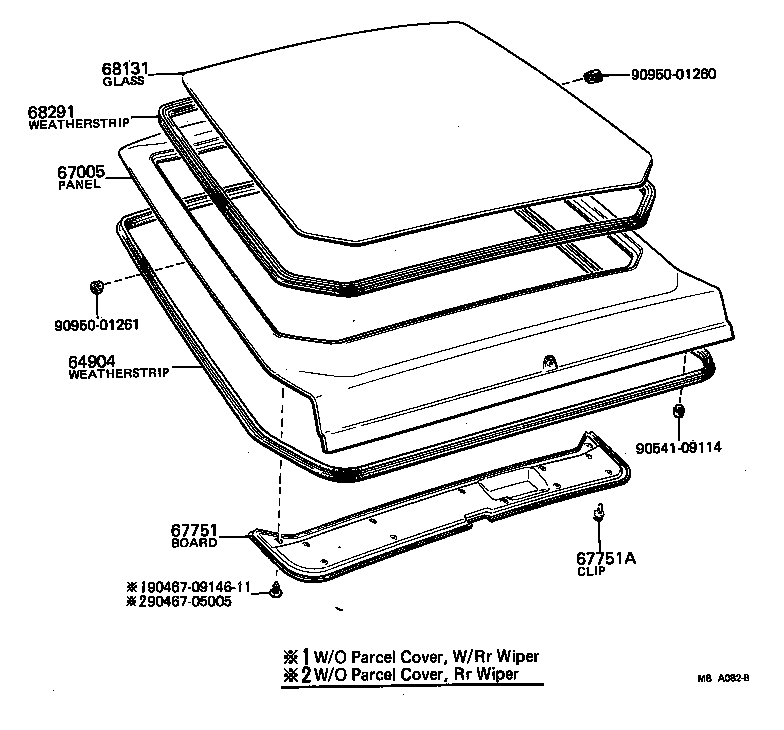

Figure MBA081A MBA081A 1979-03 → — Figure MBA082B MBA082B 1979-03 → —

Part groups

PNCDescription
64904 Weatherstrip Sub-assy, Back Door
67005 Panel Sub-assy, Back Door
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
68131 Glass, Back Door
68291 Weatherstrip, Back Door Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
