Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

39 part groups · 8 illustrations

Illustrations

MBC726A 1979-03 → 1981-08

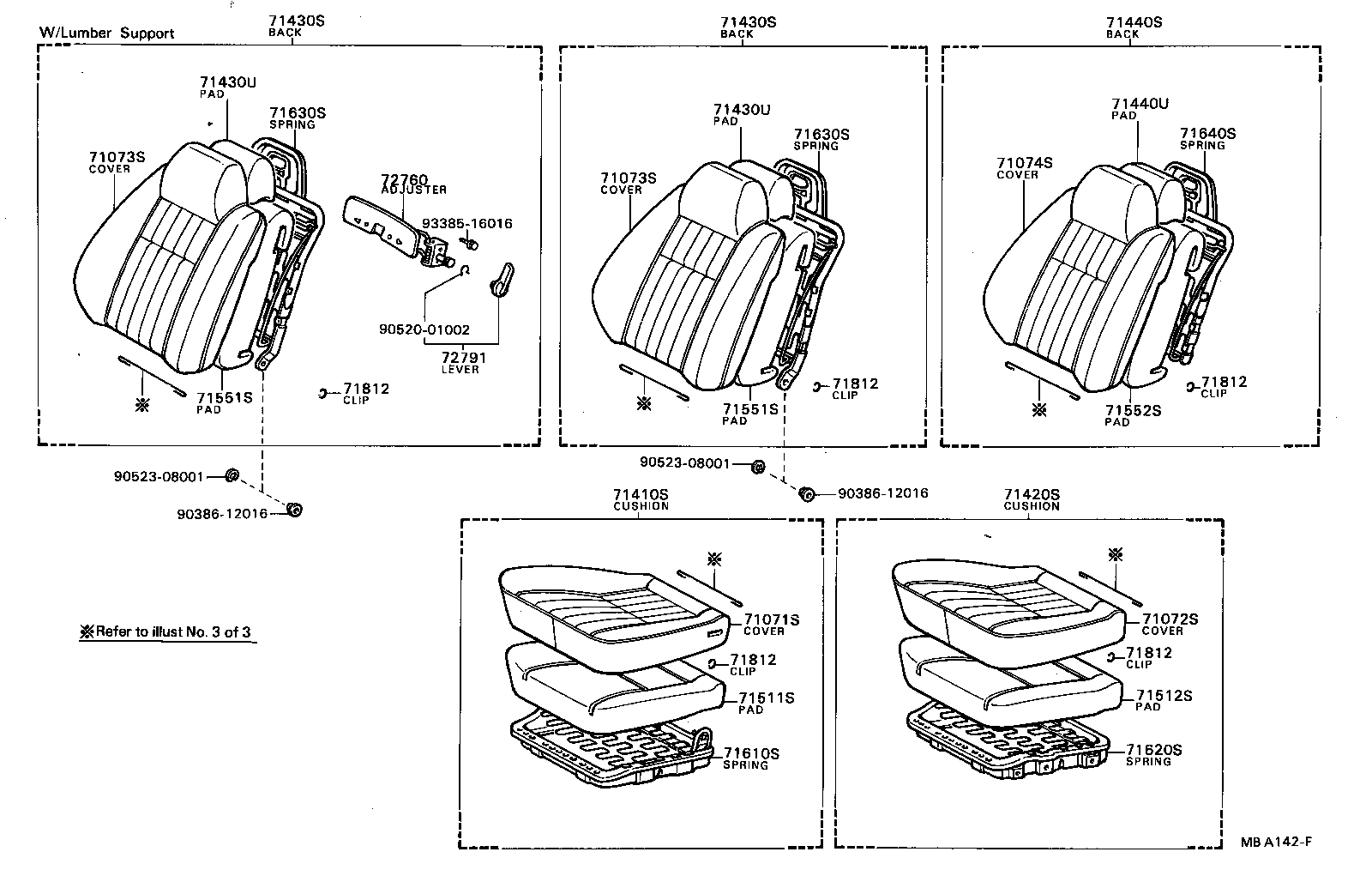

MBA142F 1981-08 → —

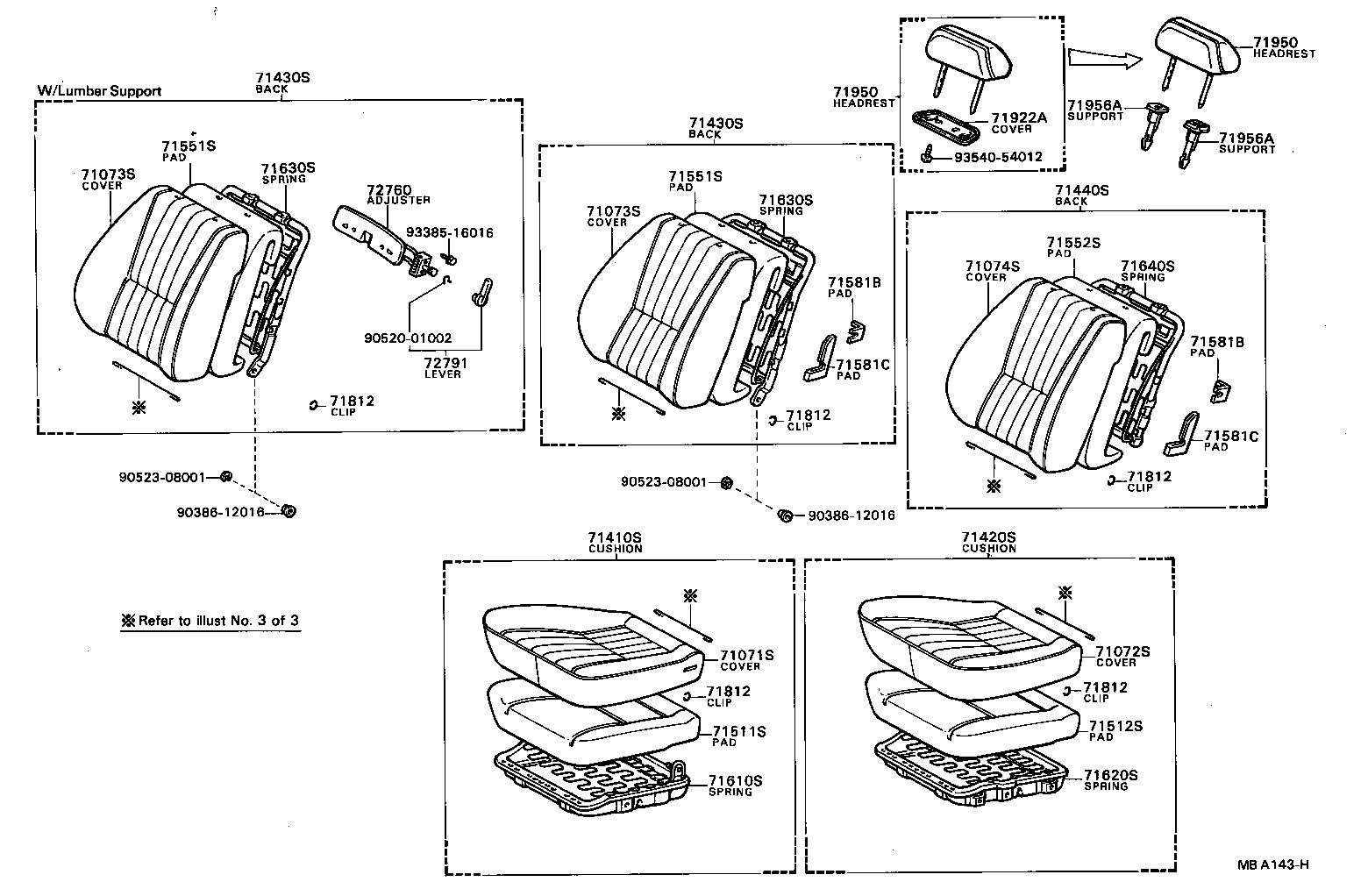

MBA143H 1981-08 → —

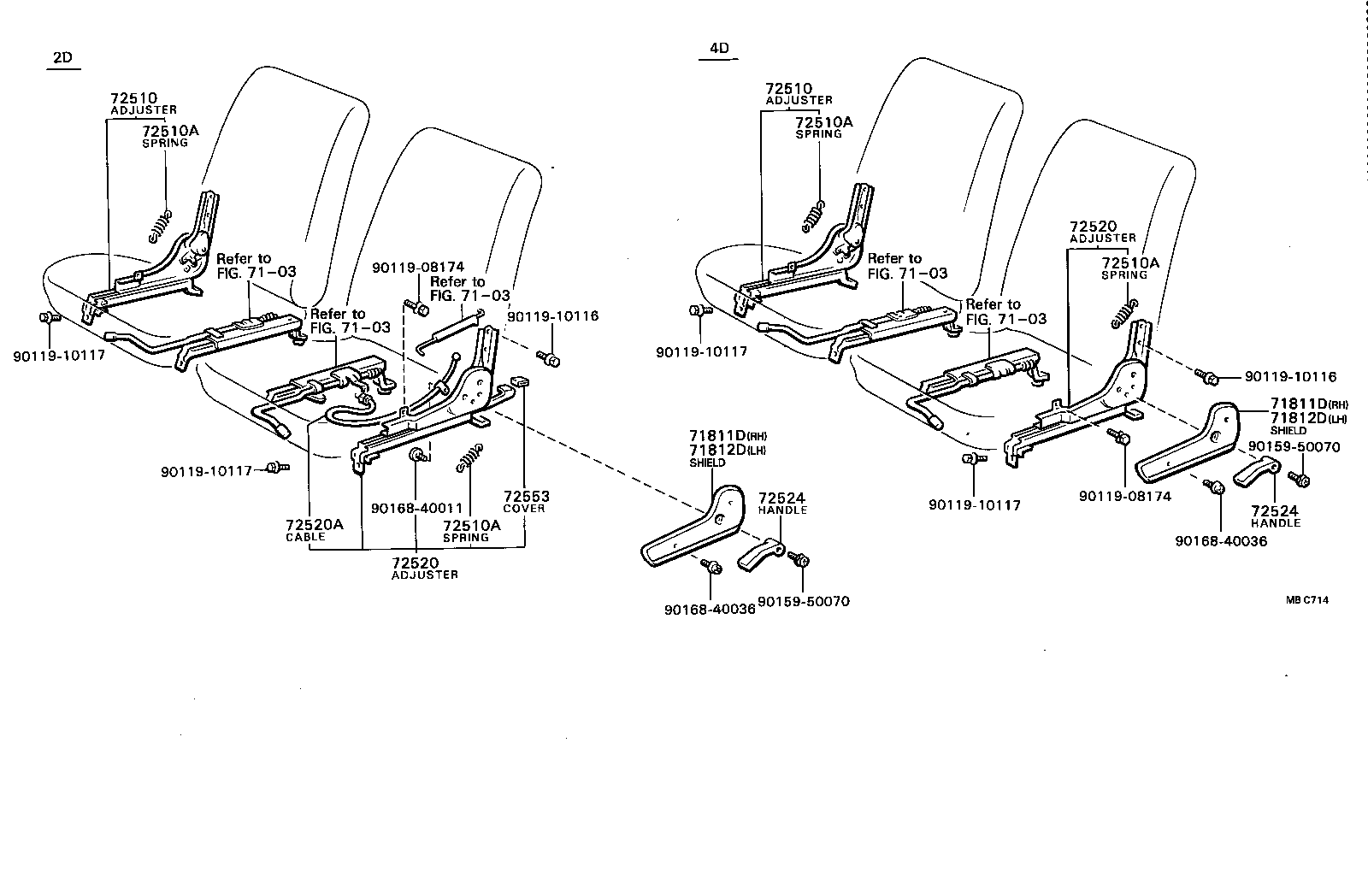

MBC714 1979-08 → 1981-08

Part groups

PNC	Description
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71430U	Pad, Front Seatback, RH NO.2(FOR SEPARATE TYPE)
71430V	Pad, Front Seatback, RH NO.3(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71440U	Pad, Front Seatback, LH NO.2(FOR SEPARATE TYPE)
71440V	Pad, Front Seatback, LH NO.3(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71521	Pad, Front Seat Cushion Silencer, A
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71581B	Pad, Front Seatback Corner, B
71581C	Pad, Front Seatback Corner, C
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71811D	Shield, Front Seat Cushion, RH
71812	Clip (FOR FRONT SEAT CUSHION COVER)
71812D	Shield, Front Seat Cushion, LH
71922A	Cover, Front Seat Headrest Under
71950	Headrest Assy, Front Seat
71956A	Support, Front Seat Headrest
72457A	Knob, Seat Adjuster
72510	Adjuster Assy, Reclining Seatback, RH
72510A	Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER)
72520	Adjuster Assy, Reclining Seatback, LH
72520A	Cable, Adjuster TO Seat Track
72524	Handle, Reclining Adjuster Release
72553	Cover, Reclining Pedal
72592	Knob, Reclining Adjuster
72760	Adjuster Assy, Lumbar Support, RH
72791	Lever, Lumbar Support

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
