Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

40 part groups · 14 illustrations

Illustrations

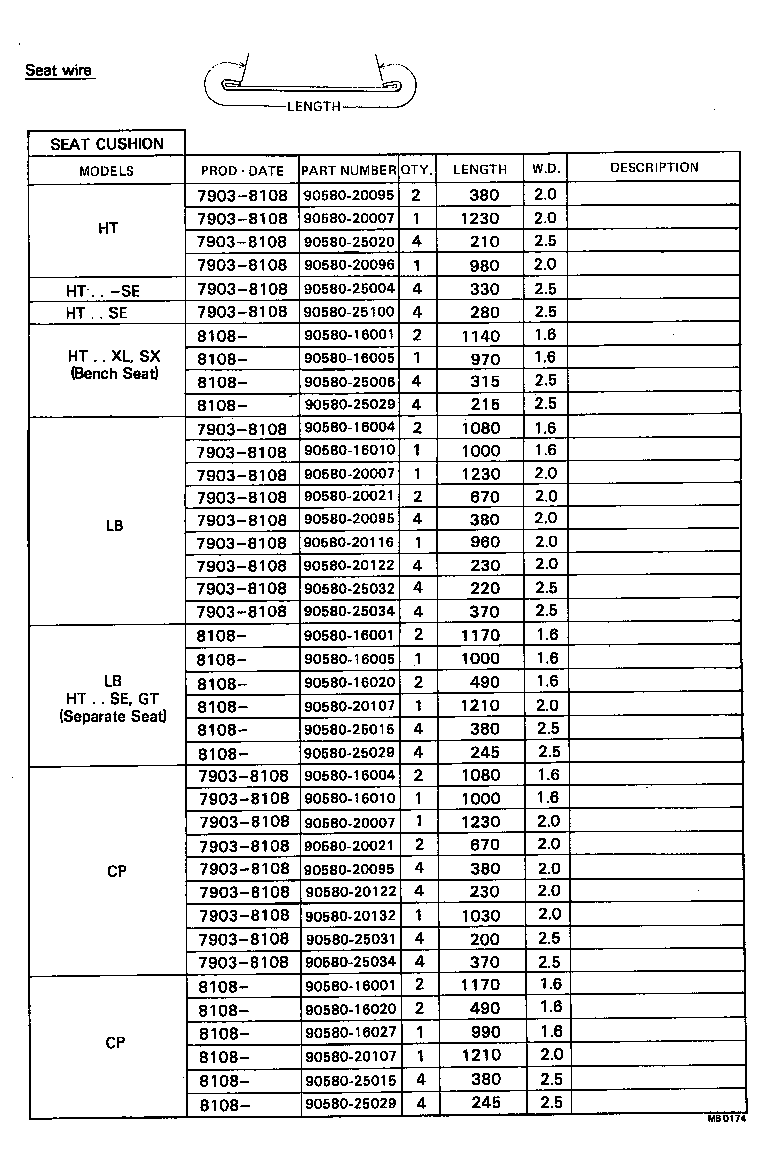

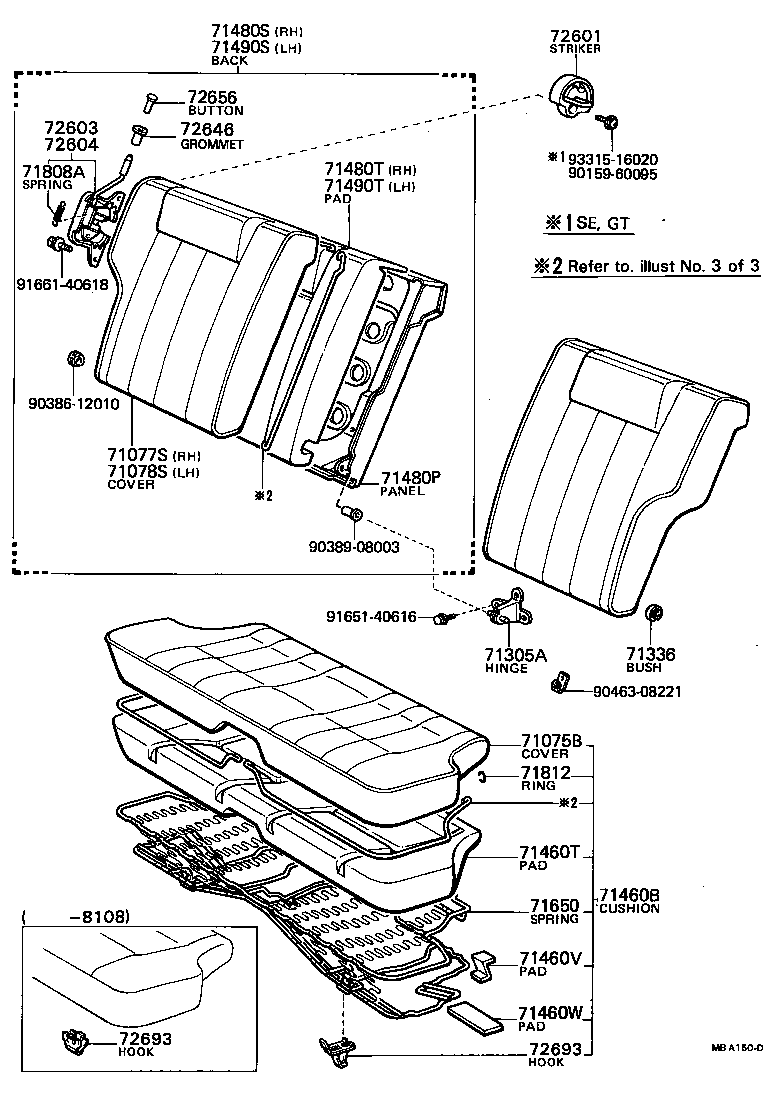

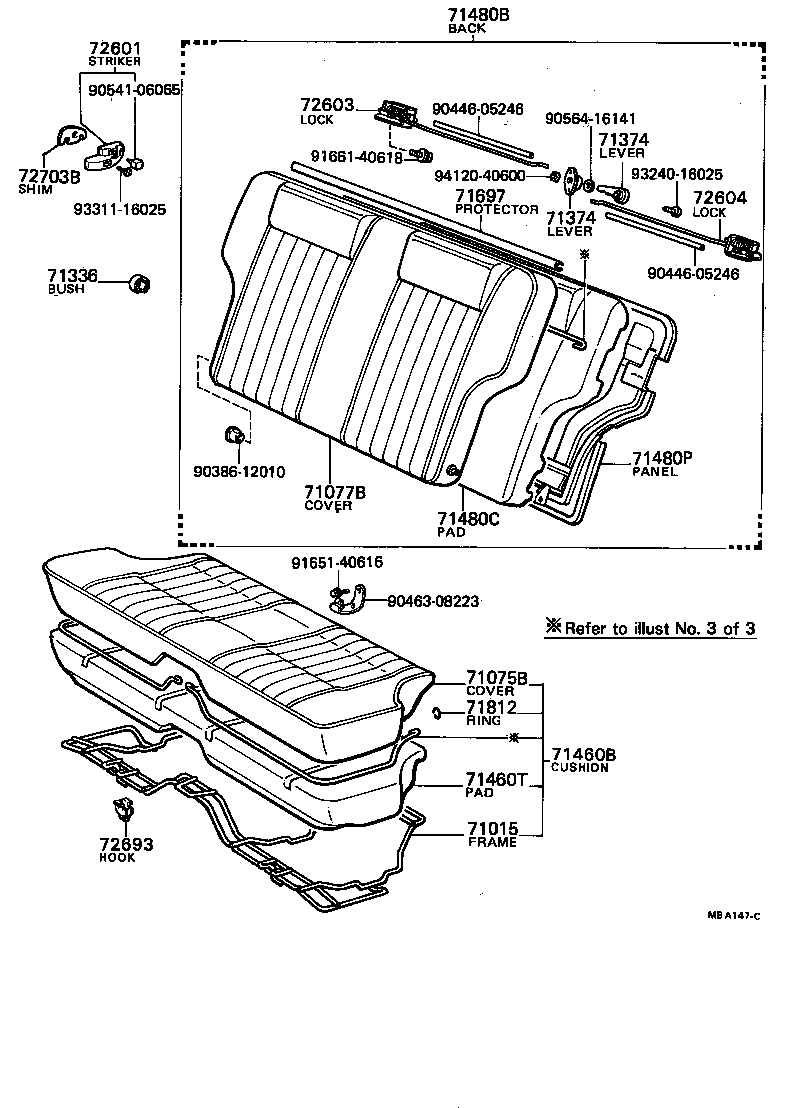

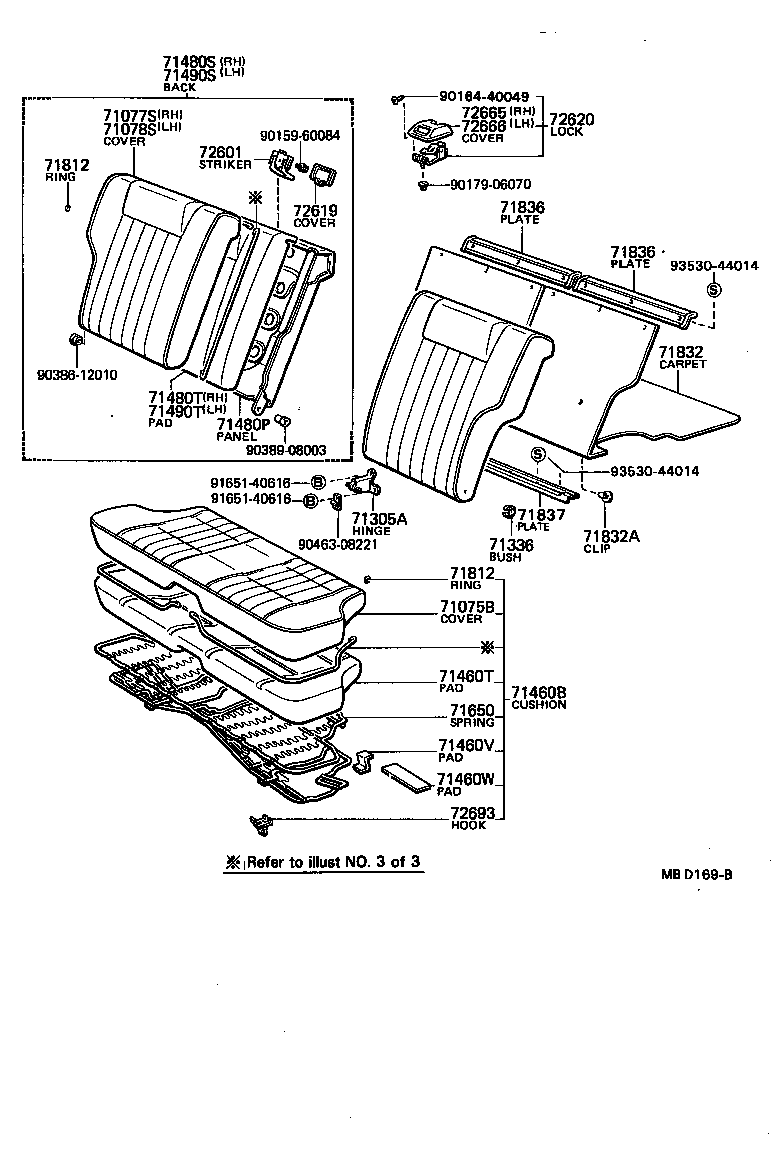

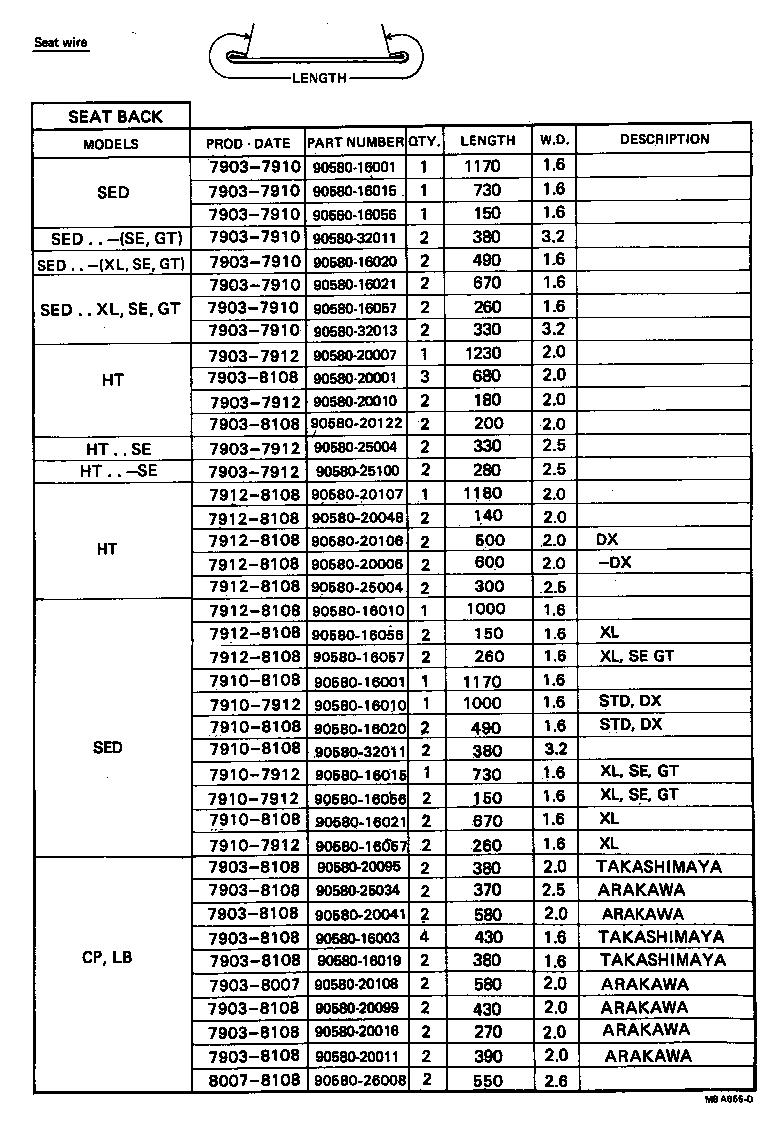

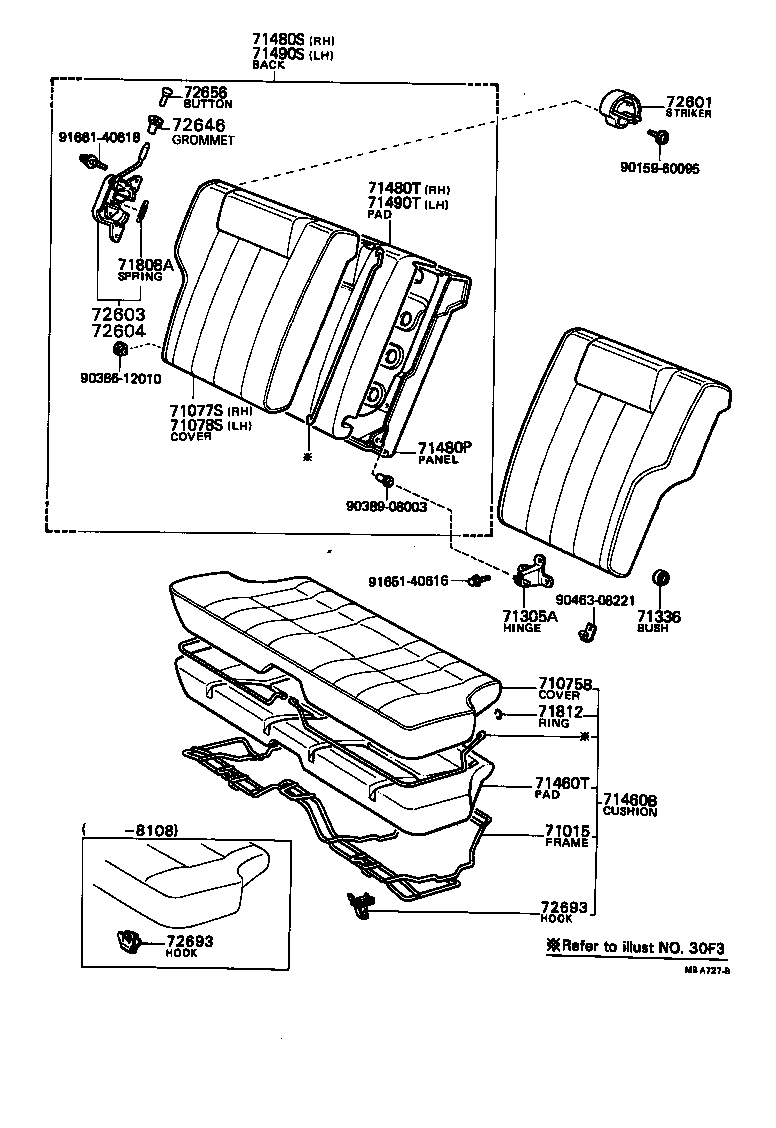

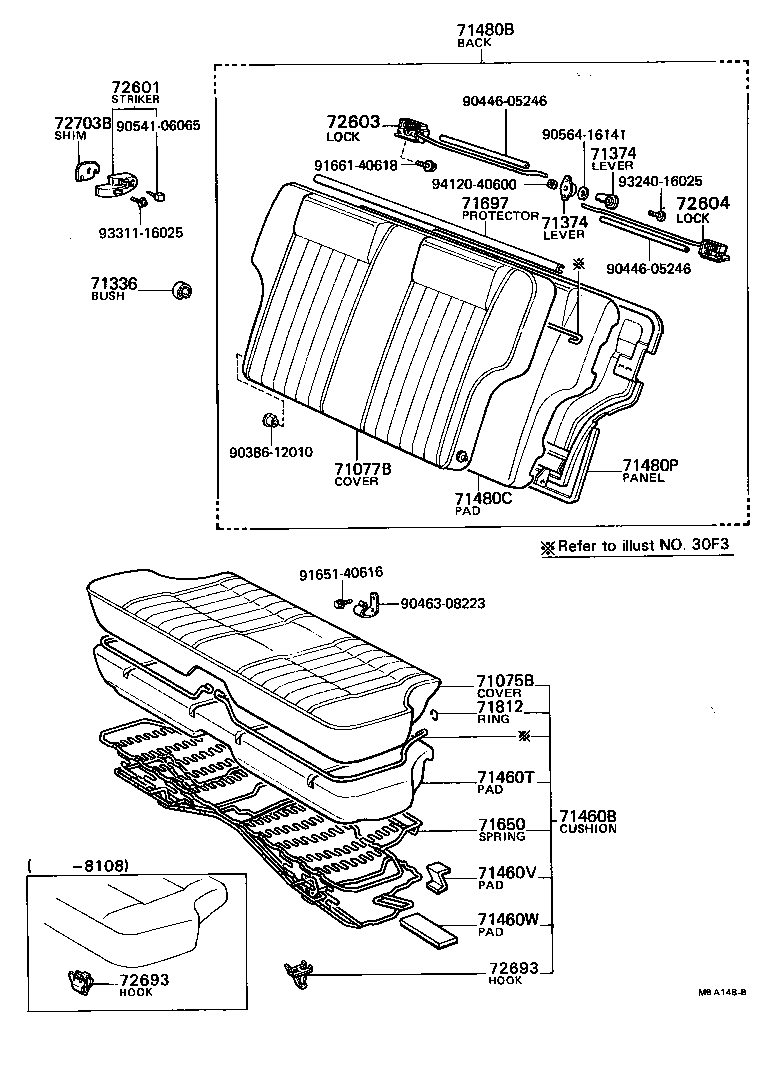

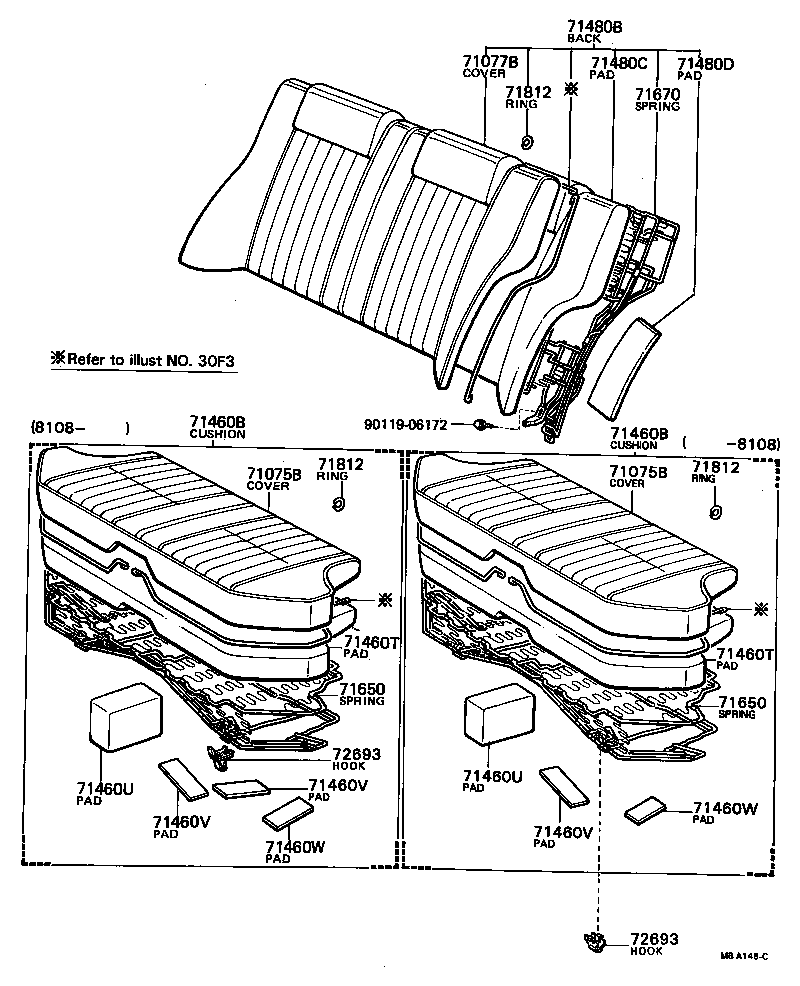

Figure MBA145A MBA145A 1979-03 → 1981-08 Figure MBA146C MBA146C 1979-03 → 1981-08 Figure MBA146C MBA146C 1981-08 → — Figure MBD169B MBD169B 1981-08 → — Figure MBA147C MBA147C 1979-03 → 1981-08 Figure MBA147C MBA147C 1981-08 → — Figure MBA148B MBA148B 1979-03 → — Figure MBA727B MBA727B 1979-03 → 1981-08 Figure MBA727B MBA727B 1981-08 → — Figure MBA150D MBA150D 1979-03 → — Figure MBA653C MBA653C 1979-03 → — Figure MBD174 MBD174 1979-03 → — Figure MBA655D MBA655D 1979-03 → 1981-08 Figure MBC775A MBC775A 1981-08 → —

Part groups

PNCDescription
71015 Frame Sub-assy, Rear Seat Cushion
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71305A Hinge Sub-assy, Rear Seatback, Center
71336 Bush OR Spacer, Rear Seatback Hinge
71374 Lever, Rear Seatback Rod Control
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460T Pad Sub-assy, Rear Seat Cushion, NO.1
71460U Pad Sub-assy, Rear Seat Cushion, NO.2
71460V Pad, Rear Seat Cushion Silencer, NO.3
71460W Pad, Rear Seat Cushion Silencer, NO.4
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480C Pad Sub-assy, Rear Seatback, NO.1 (FOR BENCH TYPE)
71480D Pad, Rear Seatback, NO.2 (FOR BENCH TYPE)
71480P Panel Sub-assy, Rear Seatback
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71480T Pad, Rear Seatback, RH (FOR SEPARATE SEAT)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71490T Pad, Rear Seatback, LH (FOR SEPARATE SEAT)
71650 Spring Assy, Rear Seat Cushion
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71697 Protector, Rear Seatback Edge
71808A Spring, Rear Seatback Stopper
71832 Carpet OR Mat, Rear Seatback
71832A Clip, Rear Seatback Carpet OR Mat
71836 Plate, Rear Seatback Carpet OR Mat Support, Upper
71837 Plate, Rear Seatback Mat Support, Lower
72601 Striker Sub-assy, Rear Seat Lock
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72619 Cover, Rear Seatback Lock Striker
72620 Lock Assy, Rear Seatback
72646 Grommet, Rear Seatback Stop Button
72656 Button, Rear Seatback Stop Release
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72693 Hook, Rear Seat Cushion Lock
72703B Shim, Rear Seatback Stopper Striker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
