Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Truck

4 part groups · 2 illustrations

Illustrations

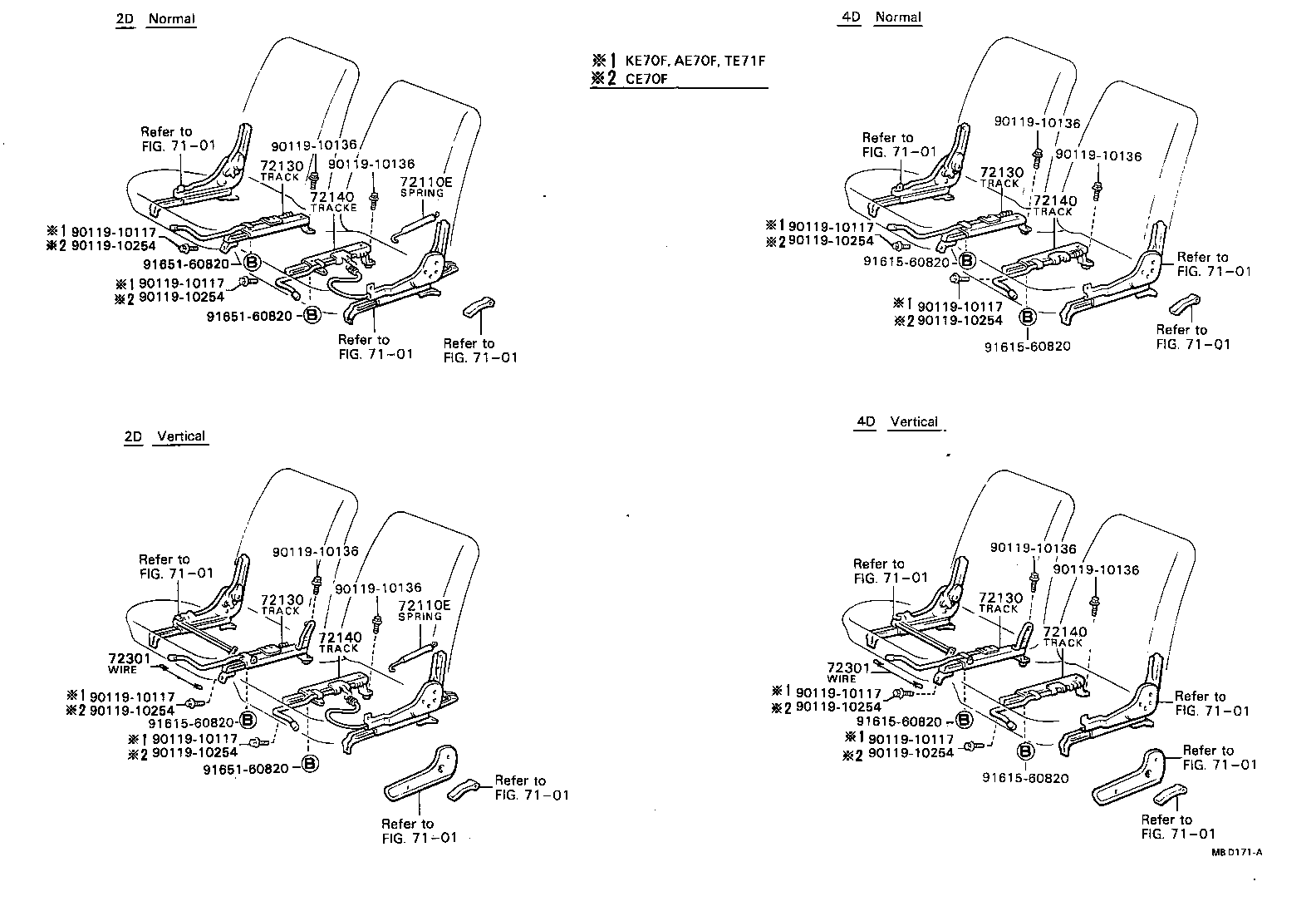

Figure MBA139D MBA139D 1979-03 → 1981-08 Figure MBD171A MBD171A 1981-08 → —

Part groups

PNCDescription
72110E Spring, Tension, NO.1 (FOR SEAT TRACK)
72130 Track Assy, RH Seat, Inner
72140 Track Assy, LH Seat, Inner
72301 Wire Sub-assy, Seat Track Equalizing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
