Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

12 part groups · 2 illustrations

Illustrations

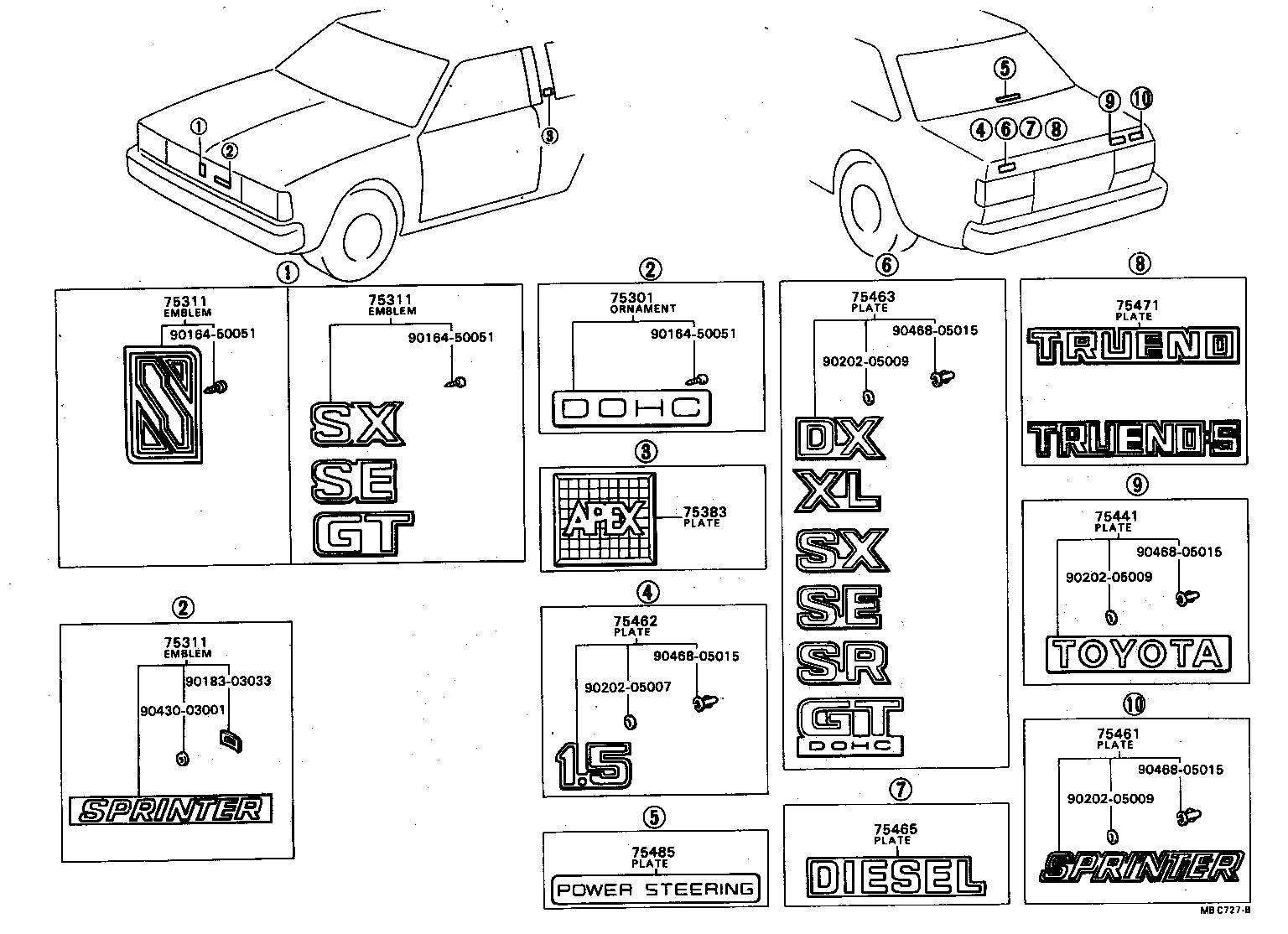

Figure MBA096D MBA096D 1979-03 → 1981-08 Figure MBC727B MBC727B 1981-08 → —

Part groups

PNCDescription
55518 Plate, Remote Control Mirror Name
75301 Ornament, Radiator Grille (OR FRONT PANEL)
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75341 Plate, Instrument Panel Name, NO.1
75383 Plate, Quarter Panel OR Side Panel Name (GRADE MARK)
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75462 Plate, Rear Name, NO.3 (DISPLACEMENT)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
75471 Plate, Rear Body Name, NO.1(MODEL MARK)
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
