Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

18 part groups · 8 illustrations

Illustrations

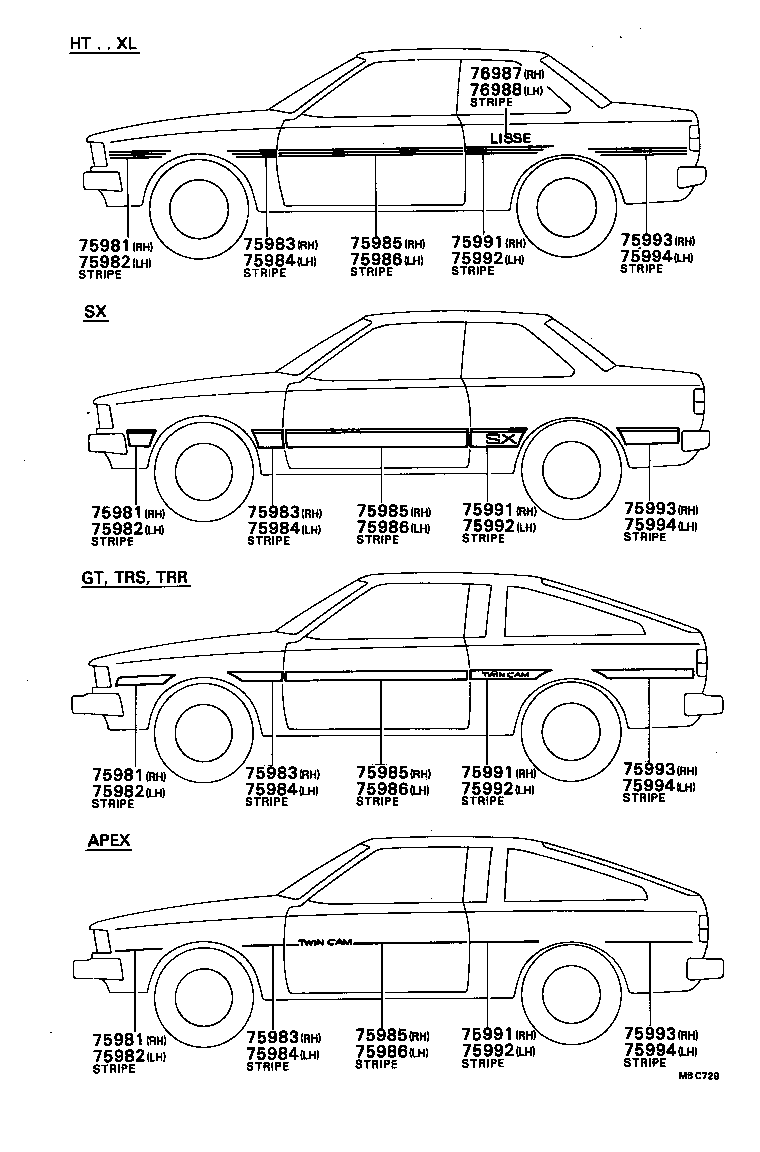

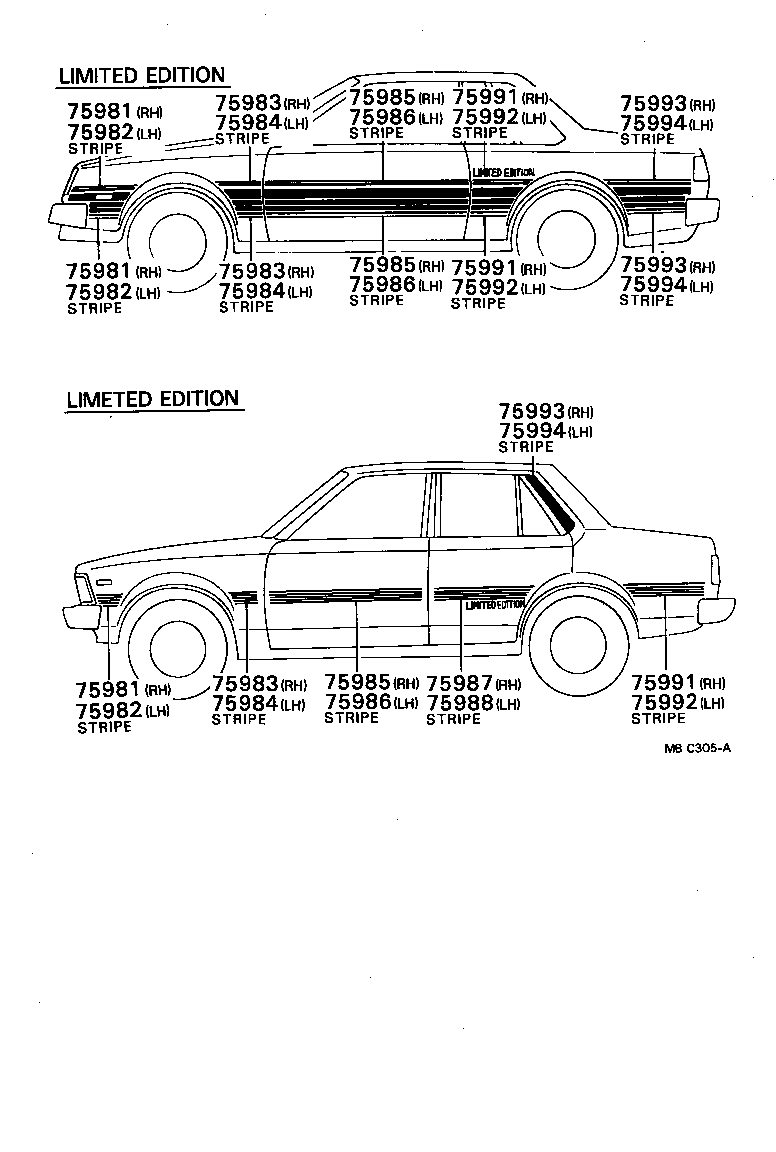

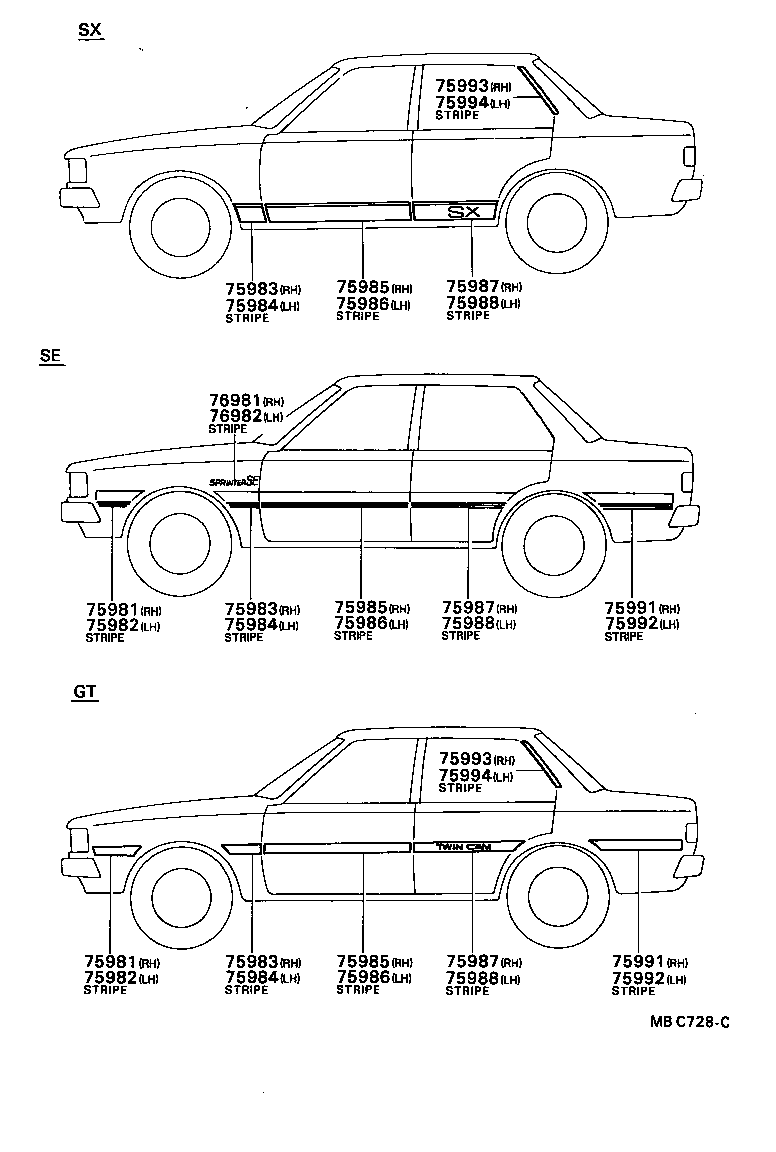

Figure MBA112E MBA112E 1979-03 → 1981-08 Figure MBC522A MBC522A 1980-05 → 1981-08 Figure MBC305A MBC305A 1980-07 → 1980-07 Figure MBC305A MBC305A 1980-10 → 1980-10 Figure MBC305A MBC305A 1980-11 → 1980-11 Figure MBC728C MBC728C 1981-08 → — Figure MBC729 MBC729 1981-08 → — Figure MBD868 MBD868 1982-02 → 1982-02

Part groups

PNCDescription
75981 Stripe, Front Fender, RH NO.1
75982 Stripe, Front Fender, LH NO.1
75983 Stripe, Front Fender, RH NO.2
75984 Stripe, Front Fender, LH NO.2
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75987 Stripe, Rear Door, RH
75988 Stripe, Rear Door, LH
75991 Stripe, Quarter, RH NO.1
75992 Stripe, Quarter, LH NO.1
75993 Stripe, Quarter, RH NO.2
75994 Stripe, Quarter, LH NO.2
76981 Stripe, Front Fender Mark, RH
76982 Stripe, Front Fender Mark, LH
76983 Stripe, Front Door Mark, RH
76984 Stripe, Front Door Mark, LH
76987 Stripe, Quarter Mark, RH
76988 Stripe, Quarter Mark, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
