Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

25 part groups · 3 illustrations

Illustrations

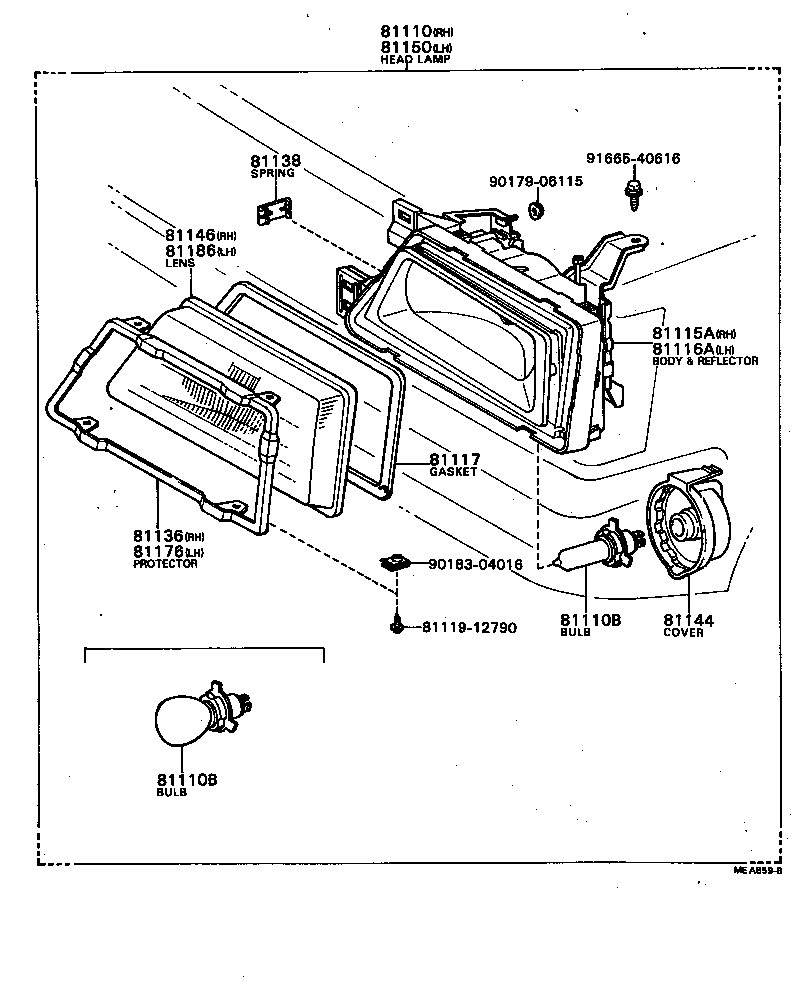

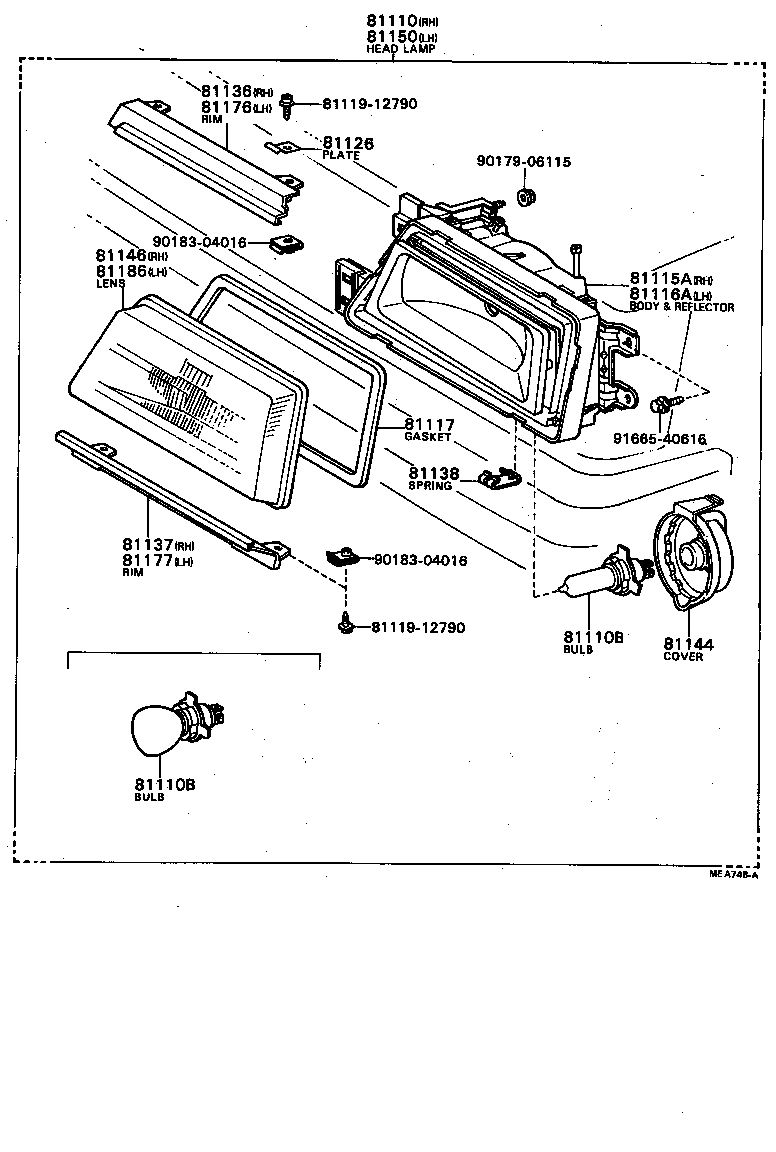

Figure ME7853B ME7853B 1979-03 → 1981-08 Figure MEA748A MEA748A 1981-08 → — Figure MEA859B MEA859B 1981-08 → —

Part groups

PNCDescription
81105A Bracket Sub-assy, Headlamp, RH
81106A Bracket Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111A Ring, Sealed Beam Retaining, NO.1 RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81115A Body And Reflector Sub-assy, Headlamp, RH
81116A Body And Reflector Sub-assy, Headlamp, LH
81117 Packing, Headlamp Housing
81121 Spring, Headlamp Tension
81126 Plate, Headlamp
81131 Screw, Headlamp Adjusting
81132 Nut, Headlamp Self Locking
81136 Protector, Headlamp, NO.1 RH
81137 Protector, Headlamp, NO.2 RH
81138 Spring, Headlamp
81144 Cover, Headlamp, NO.1
81146 Lens, Headlamp, RH
81150 Headlamp Assy, LH
81151A Ring, Sealed Beam Retaining, NO.1 LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81176 Protector, Headlamp, NO.1 LH
81177 Protector, Headlamp, NO.2 LH
81186 Lens, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
