Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

10 part groups · 8 illustrations

Illustrations

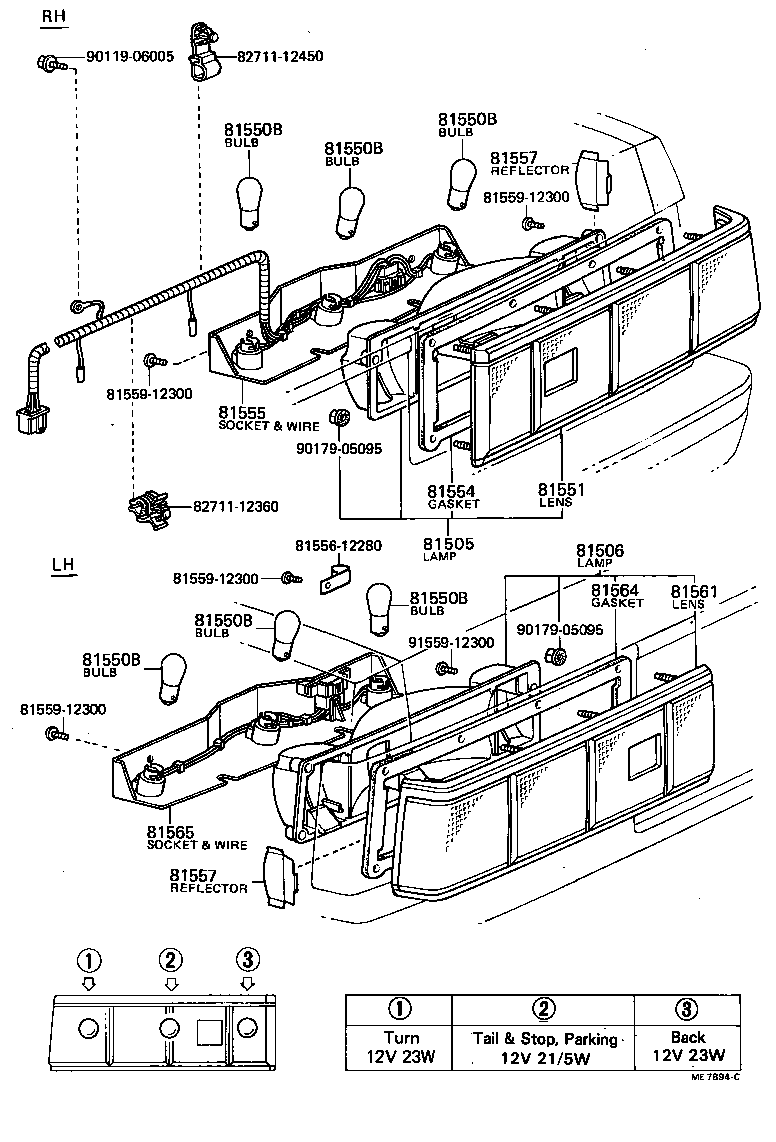

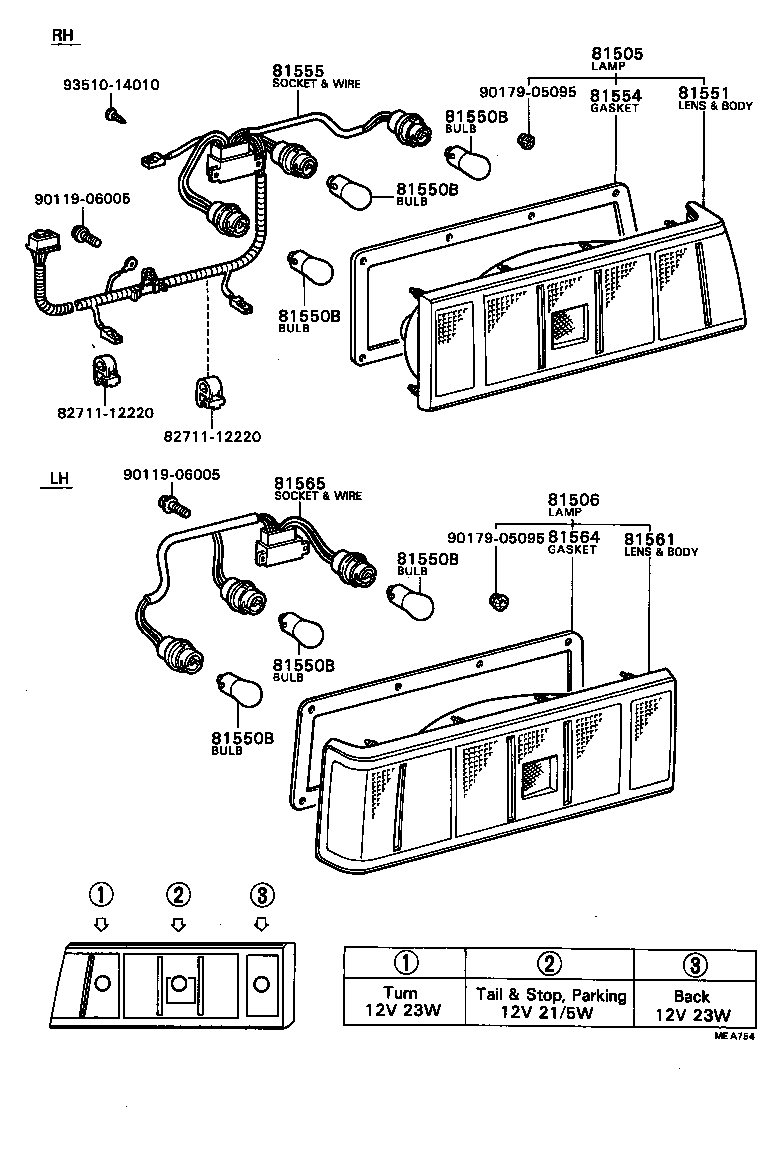

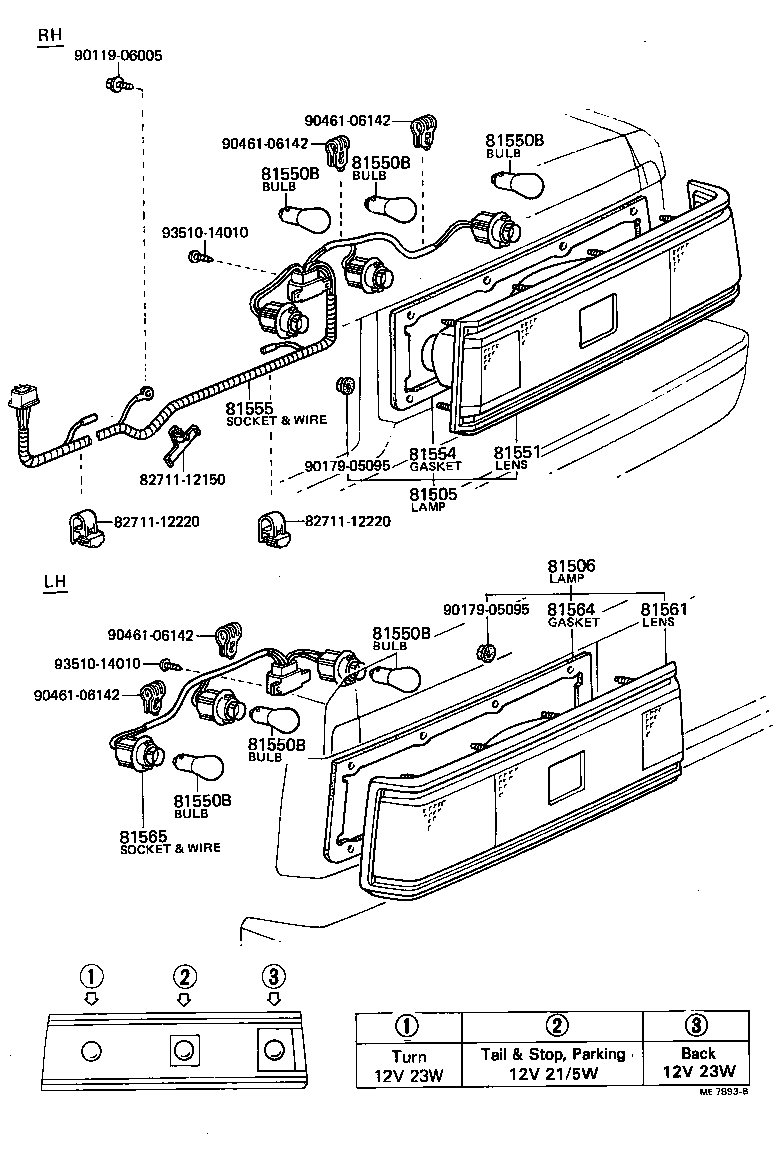

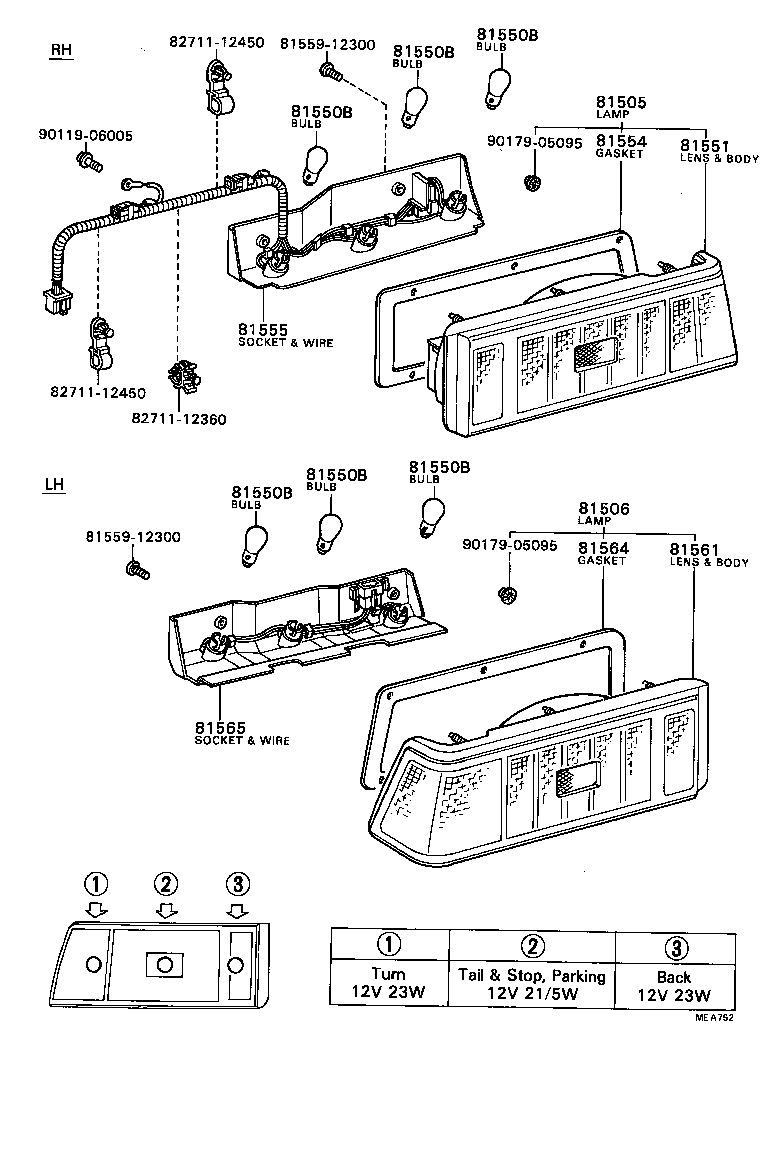

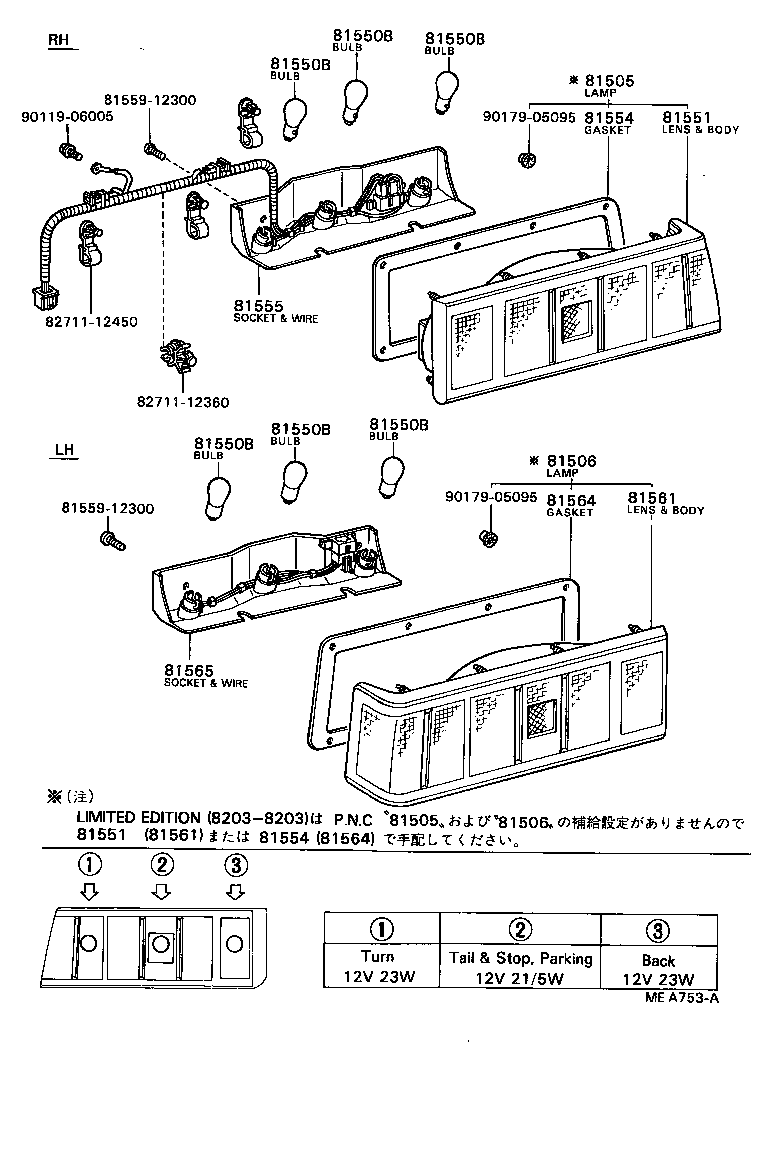

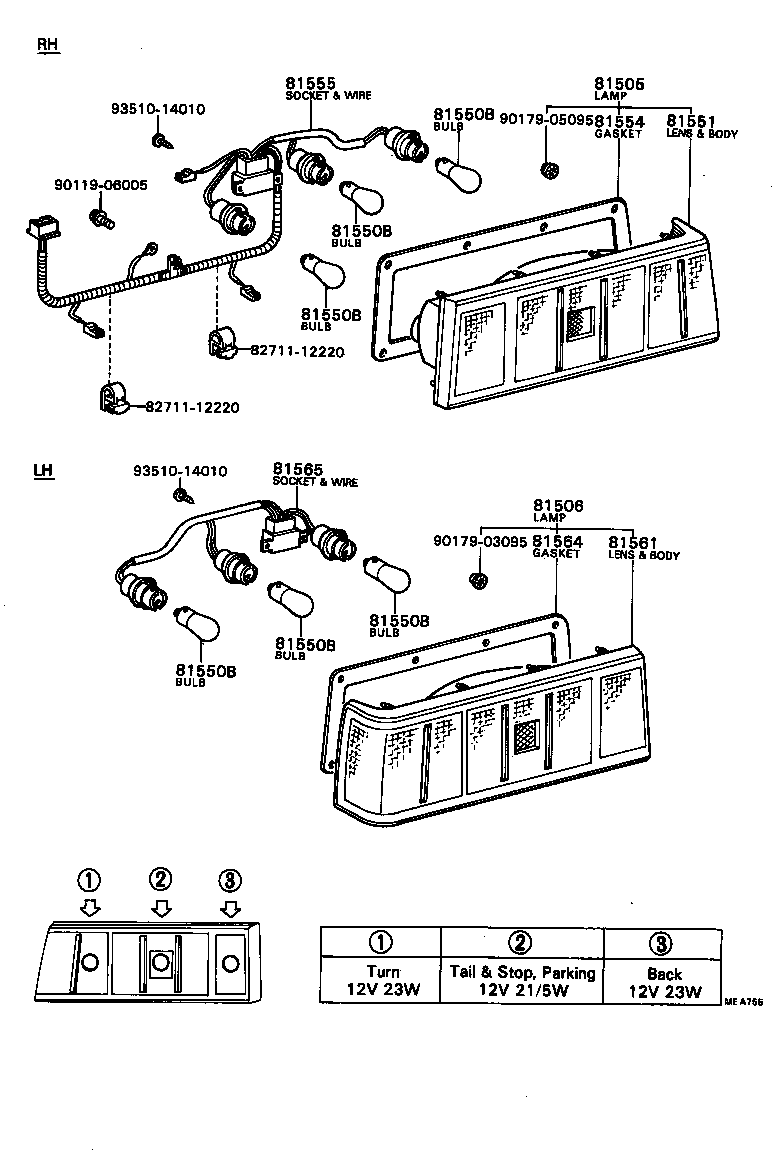

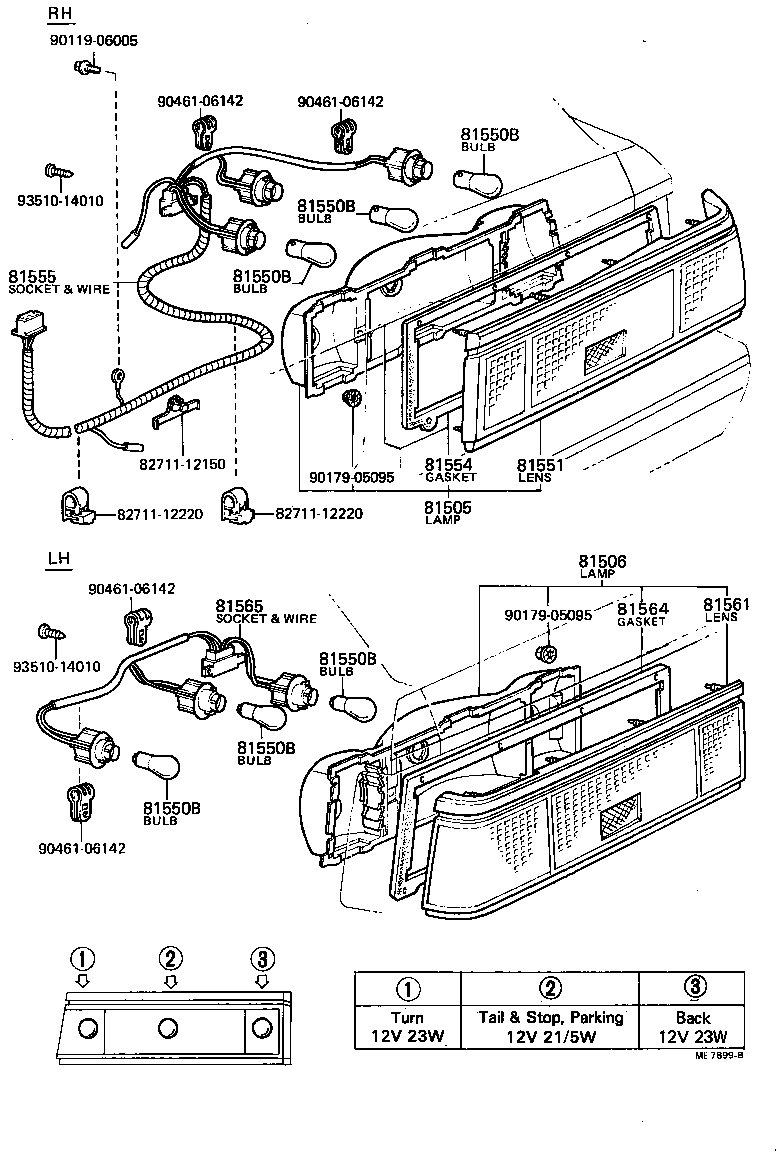

Figure ME7898C ME7898C 1979-03 → 1981-08 Figure MEA752 MEA752 1981-08 → — Figure ME7894C ME7894C 1979-03 → 1981-08 Figure MEA753A MEA753A 1981-08 → — Figure ME7899B ME7899B 1979-03 → 1981-08 Figure MEA754 MEA754 1981-08 → — Figure ME7893B ME7893B 1979-03 → 1981-08 Figure MEA755 MEA755 1981-08 → —

Part groups

PNCDescription
81505 Lamp Sub-assy, Rear Combination, RH
81506 Lamp Sub-assy, Rear Combination, LH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81557 Reflector, Rear Combination Lamp Reflex
81561 Lens, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
