Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

38 part groups · 8 illustrations

Illustrations

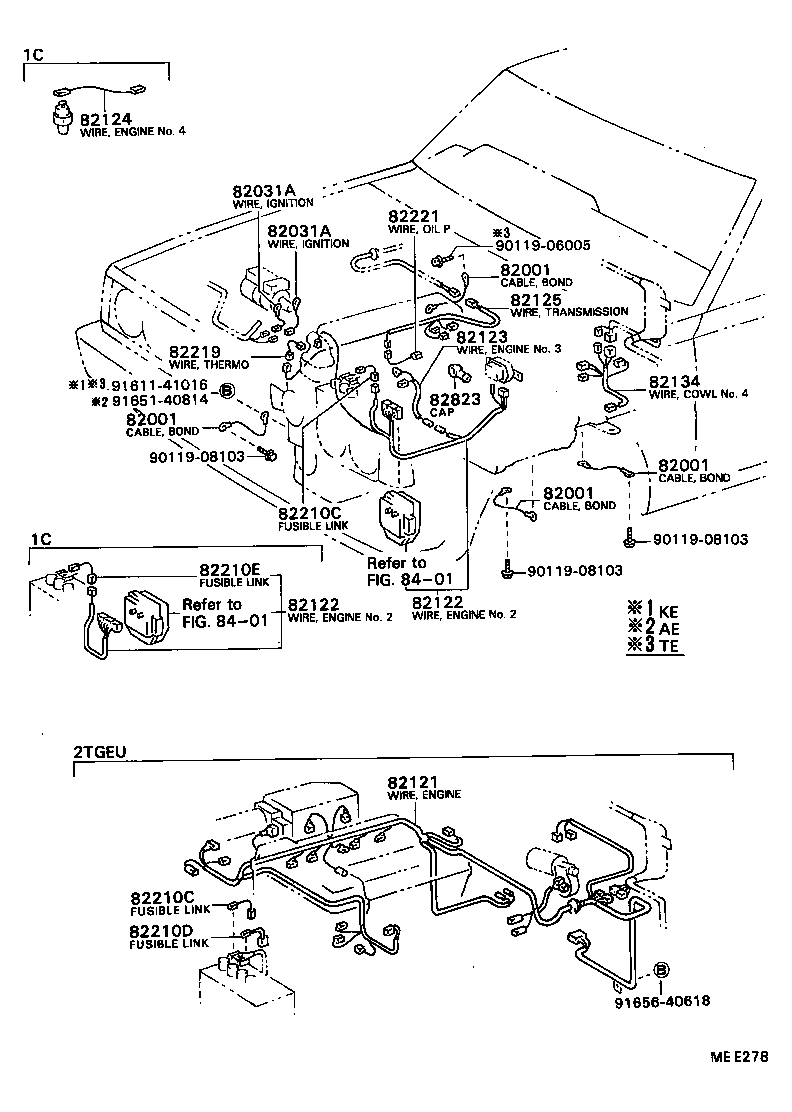

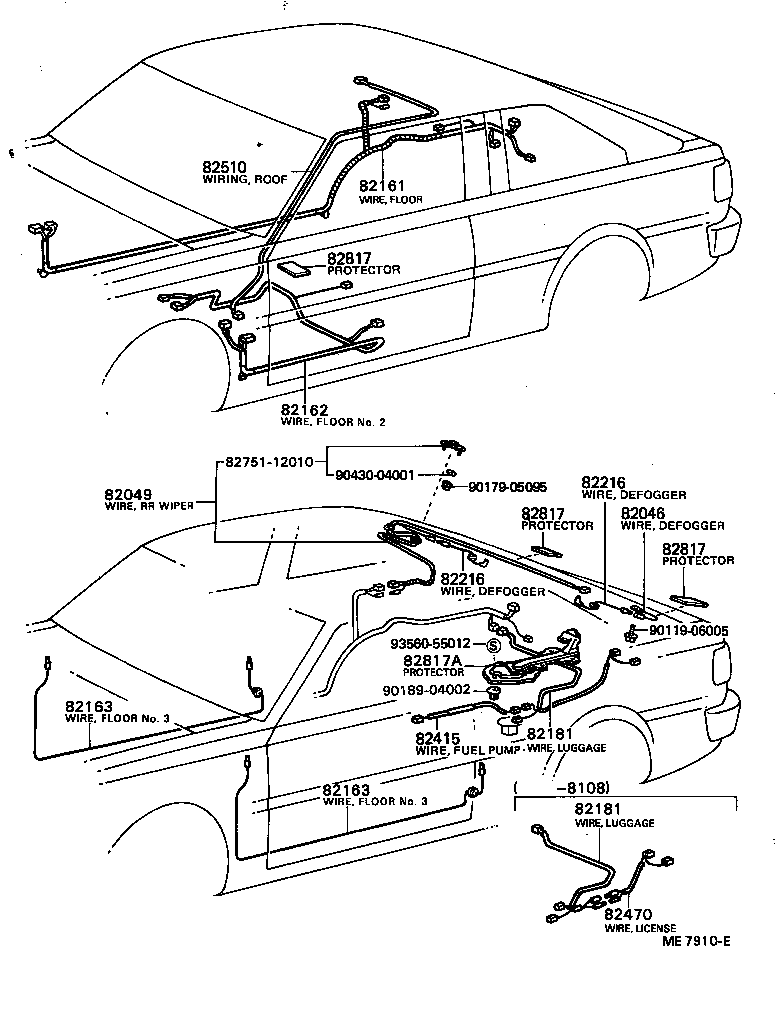

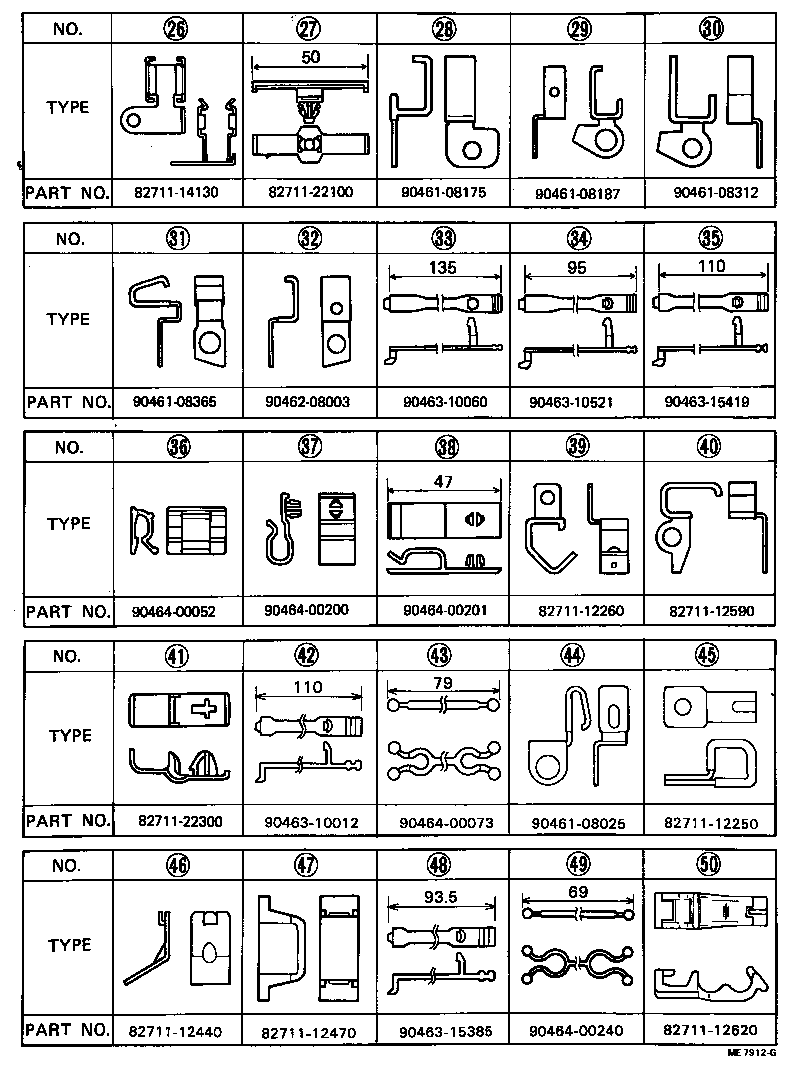

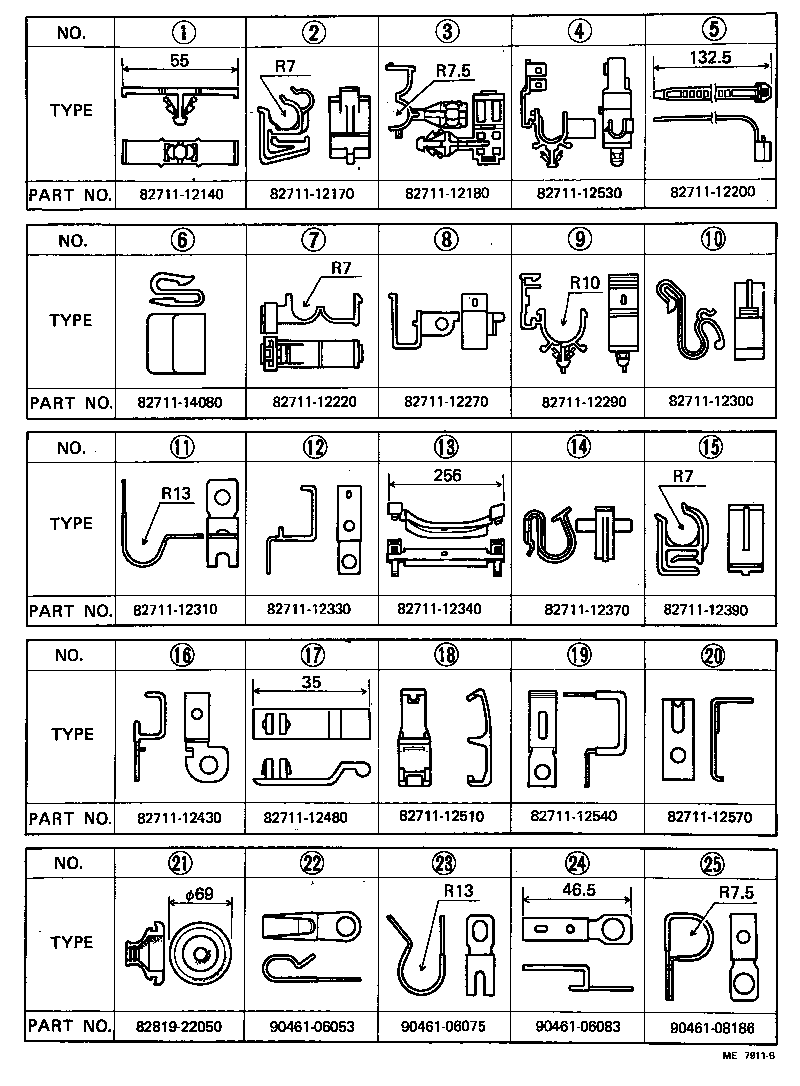

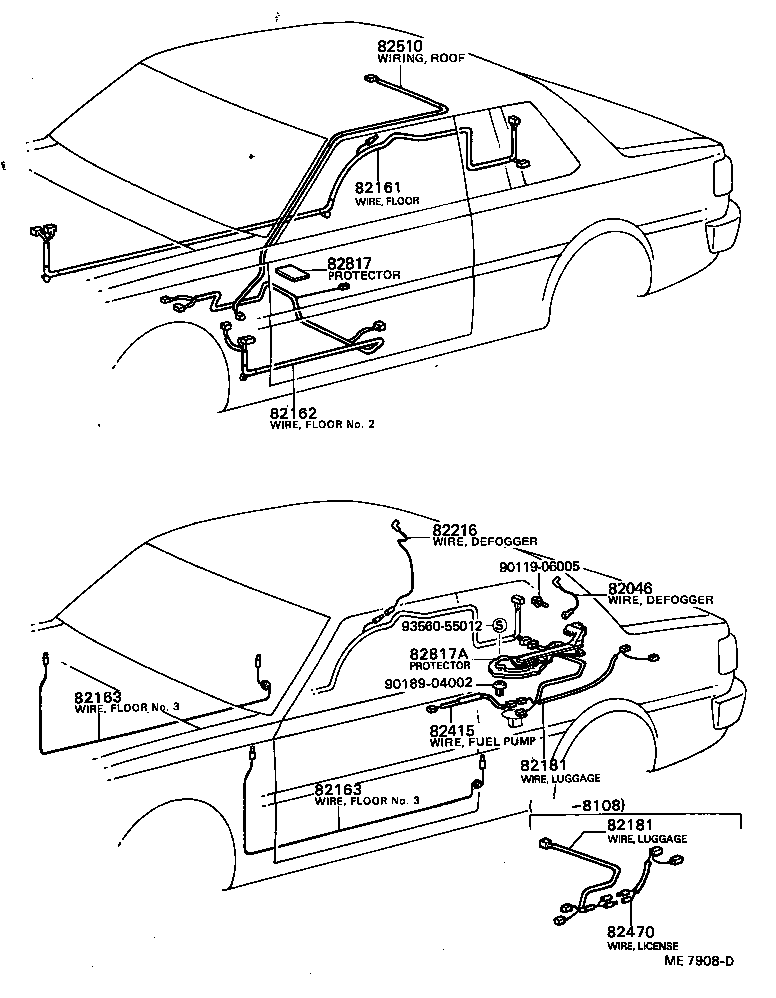

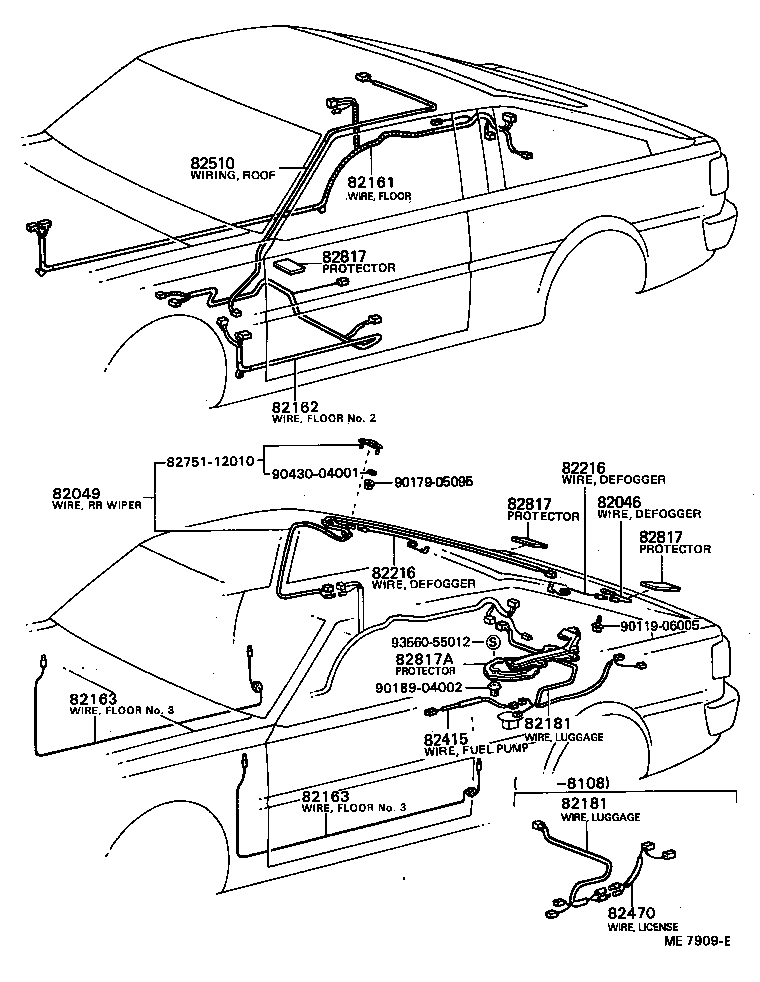

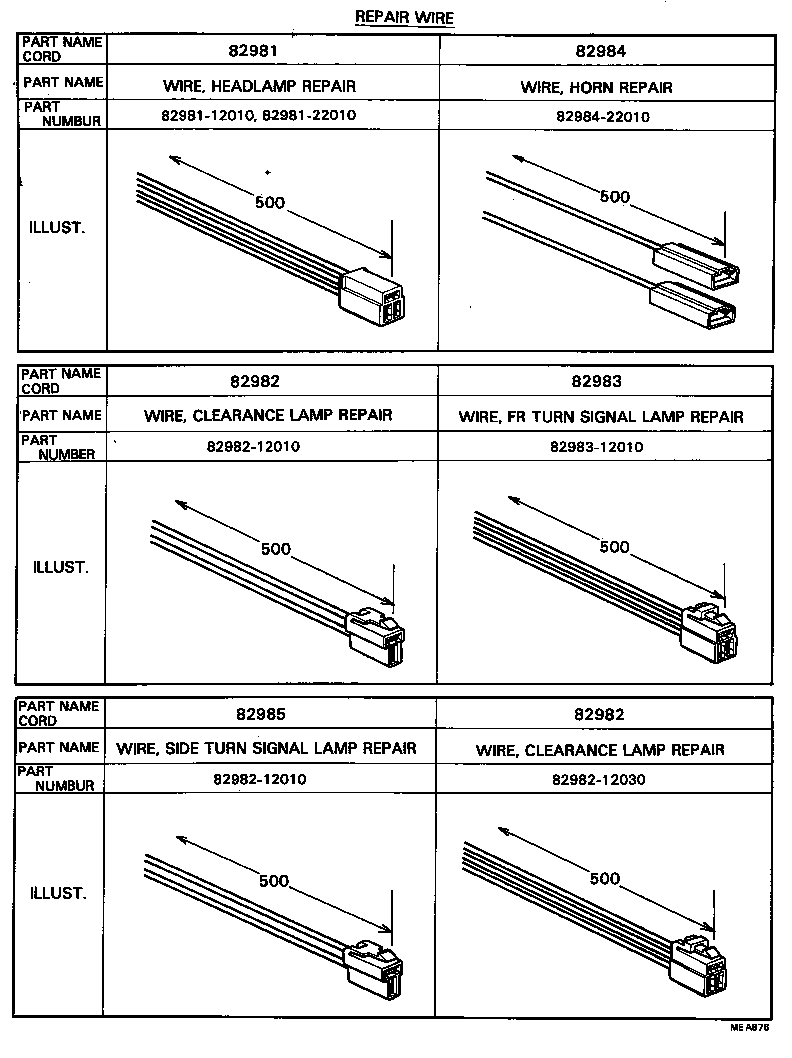

Figure ME8707F ME8707F 1979-03 → — Figure MEE278 MEE278 1979-03 → — Figure ME7908D ME7908D 1979-03 → — Figure ME7909E ME7909E 1979-03 → — Figure ME7910E ME7910E 1979-03 → — Figure MEA876 MEA876 1979-03 → — Figure ME7911B ME7911B 1979-03 → — Figure ME7912G ME7912G 1979-03 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82031 Wire Sub-assy, Ignition Coil
82031A Wire, Ignition Coil
82046 Wire Sub-assy, Rear Window Defogger Earth
82049 Wiring Sub-assy, Rear Wiper
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82134 Wire, Cowl, NO.4
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82181 Wire, Luggage Room, NO.1
82210C Fusible Link
82210D Fusible Link
82210E Fusible Link
82216 Wire, Rear Window Defogger
82219 Wire, Thermo Sensor
82221 Wire, Oil Pressure Switch
82233 Wire, Computer
82241C Wire, Relay
82415 Wire, Fuel Pump
82470 Wire Assy, License Lamp Feed
82510 Wiring Assy, Roof
82670 Block Assy, Junction, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
