Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

13 part groups · 2 illustrations

Illustrations

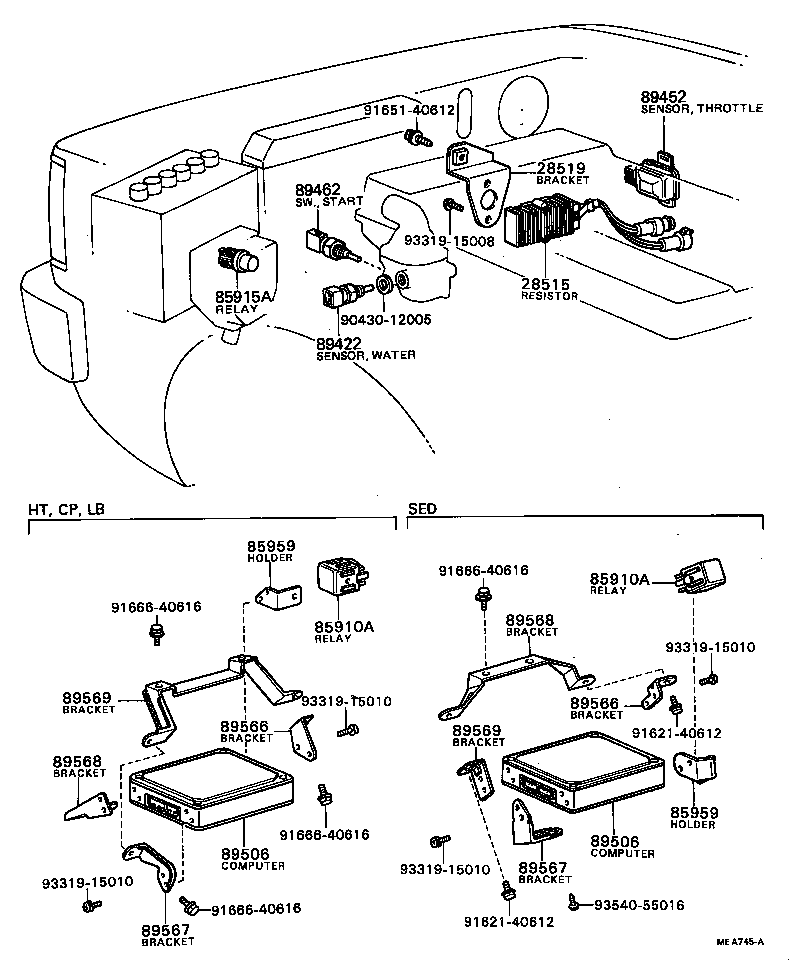

Figure ME7888B ME7888B 1979-03 → 1981-08 Figure MEA745A MEA745A 1981-08 → —

Part groups

PNCDescription
28515 Resistor, Solenoid
28519 Bracket, Solenoid Resistor
85910A Relay Assy, Circuit Opening (FOR EFI)
85915A Relay, Main
85959 Holder, Relay
89422 Sensor, Water Temperature (FOR E.F.I.)
89452 Sensor, Throttle Position (FOR E.F.I.)
89462 Switch, Start Injector Time
89506 Computer Set, Fuel Injection
89566 Bracket, Fuel Injection Computer
89567 Bracket, Fuel Injection Computer
89568 Bracket, Fuel Injection Computer
89569 Bracket, Fuel Injection Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
