Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

27 part groups · 7 illustrations

Illustrations

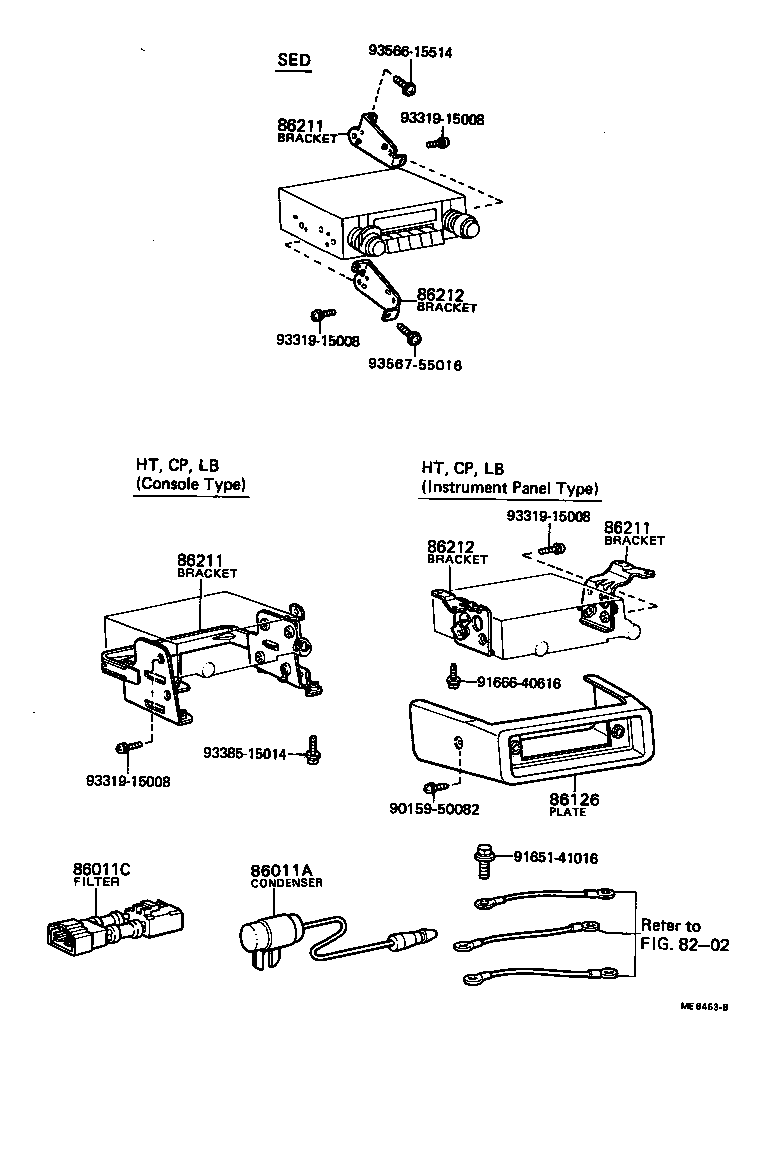

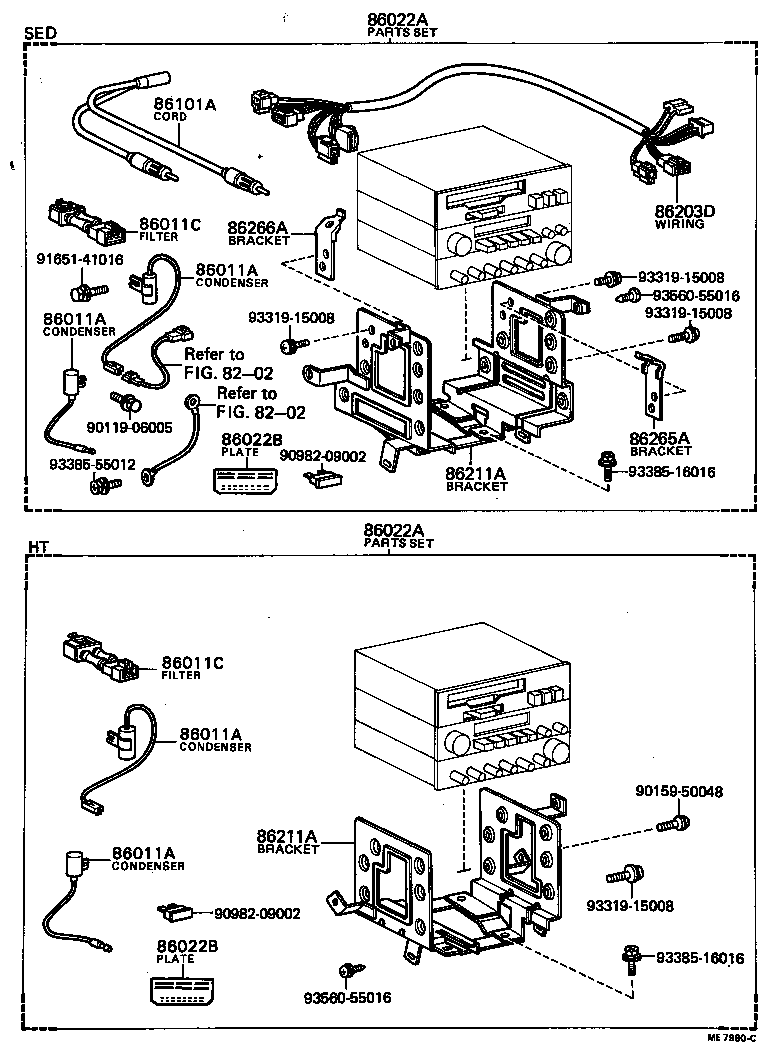

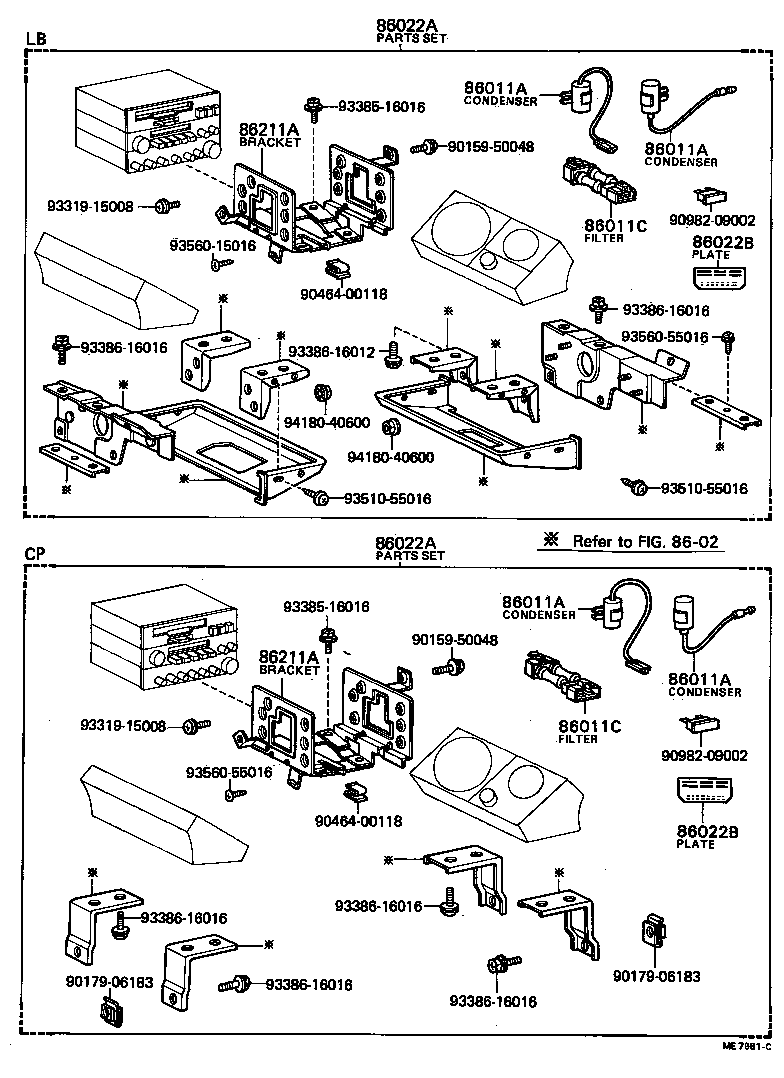

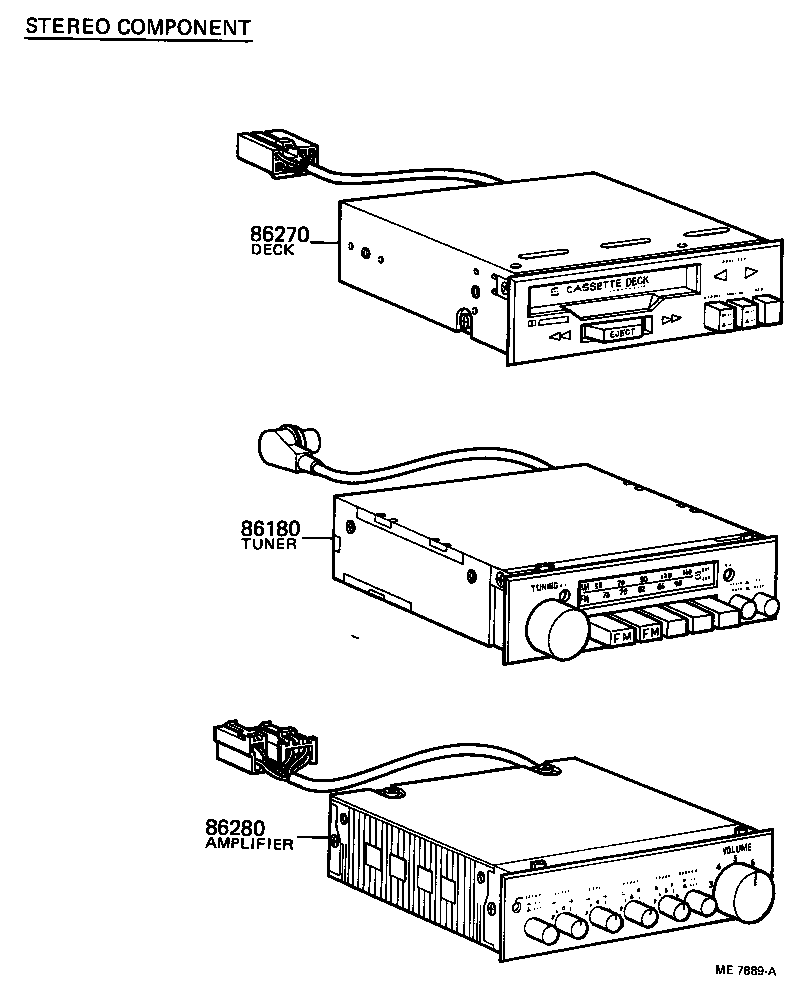

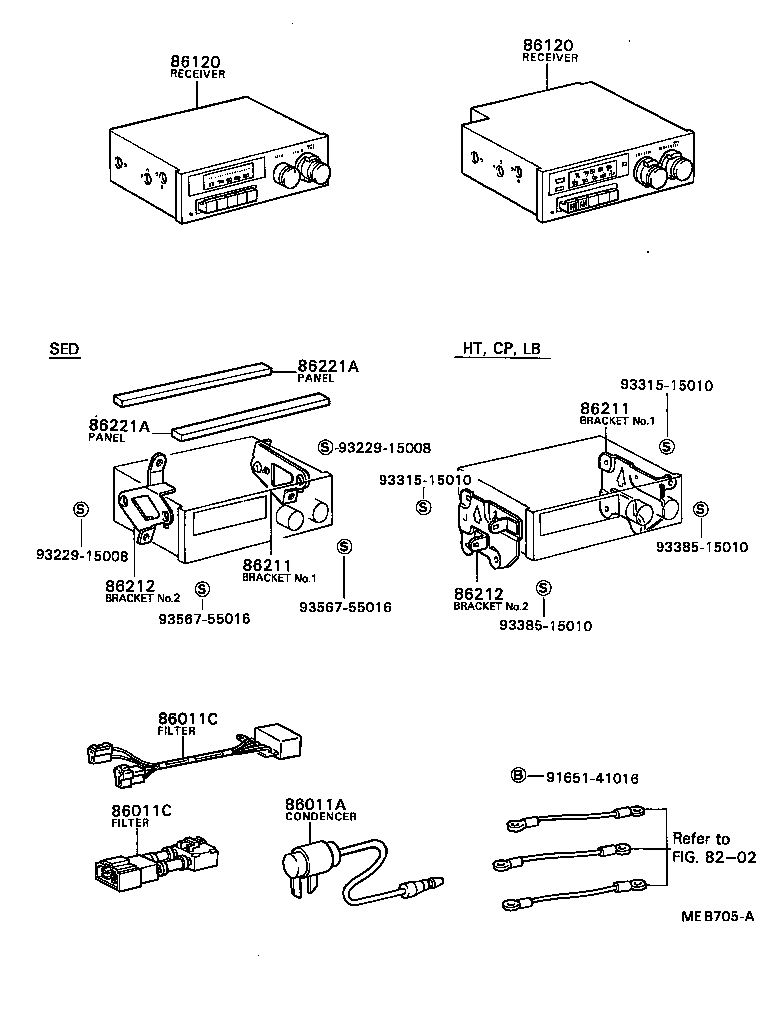

Figure ME7883B ME7883B 1979-03 → 1981-08 Figure ME8453B ME8453B 1979-03 → 1981-08 Figure ME8282B ME8282B 1979-03 → 1981-08 Figure ME7889A ME7889A 1979-03 → 1981-08 Figure ME7980C ME7980C 1979-03 → 1981-08 Figure ME7981C ME7981C 1979-03 → 1981-08 Figure MEB705A MEB705A 1981-08 → —

Part groups

PNCDescription
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86011C Filter, Noise
86021 Tape Player And Setting Parts Set
86022A Parts Set, Stereo Component Setting
86022B Plate, Caution
86101A Cord Sub-assy, Antenna, NO.1
86120 Receiver Assy, Radio
86124 Knob, Radio Receiver Control
86125 Knob, Radio Receiver Switch
86126 Plate, Radio Receiver
86180 Tuner Assy, Stereo Component
86202B Wire, Tape Player
86203D Wire, Stereo Component, NO.1
86211 Bracket, Radio, NO.1
86211A Bracket, Stereo Component, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86260 Tape Player Assy
86265 Bracket, Tape Player, NO.1
86265A Bracket, Stereo Component, NO.4
86266 Bracket, Tape Player, NO.2
86266A Bracket, Stereo Component, NO.5
86267 Bracket, Tape Player, NO.3
86268 Bracket, Tape Player, NO.4
86270 Deck Assy, Stereo Component
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
