Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

9 part groups · 3 illustrations

Illustrations

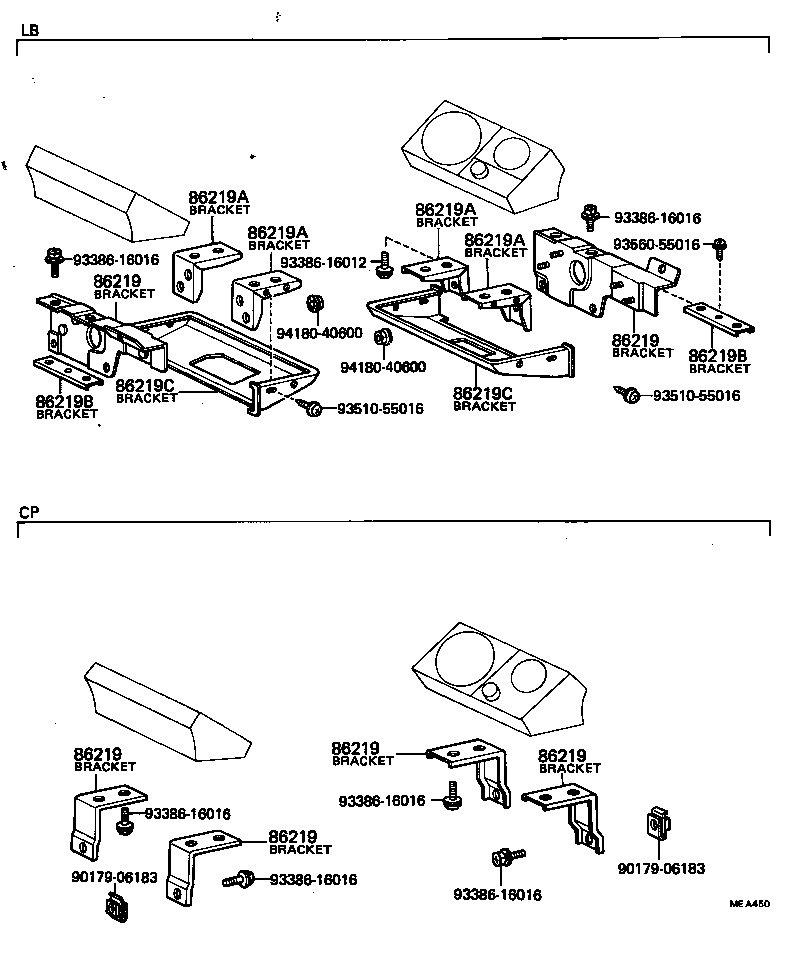

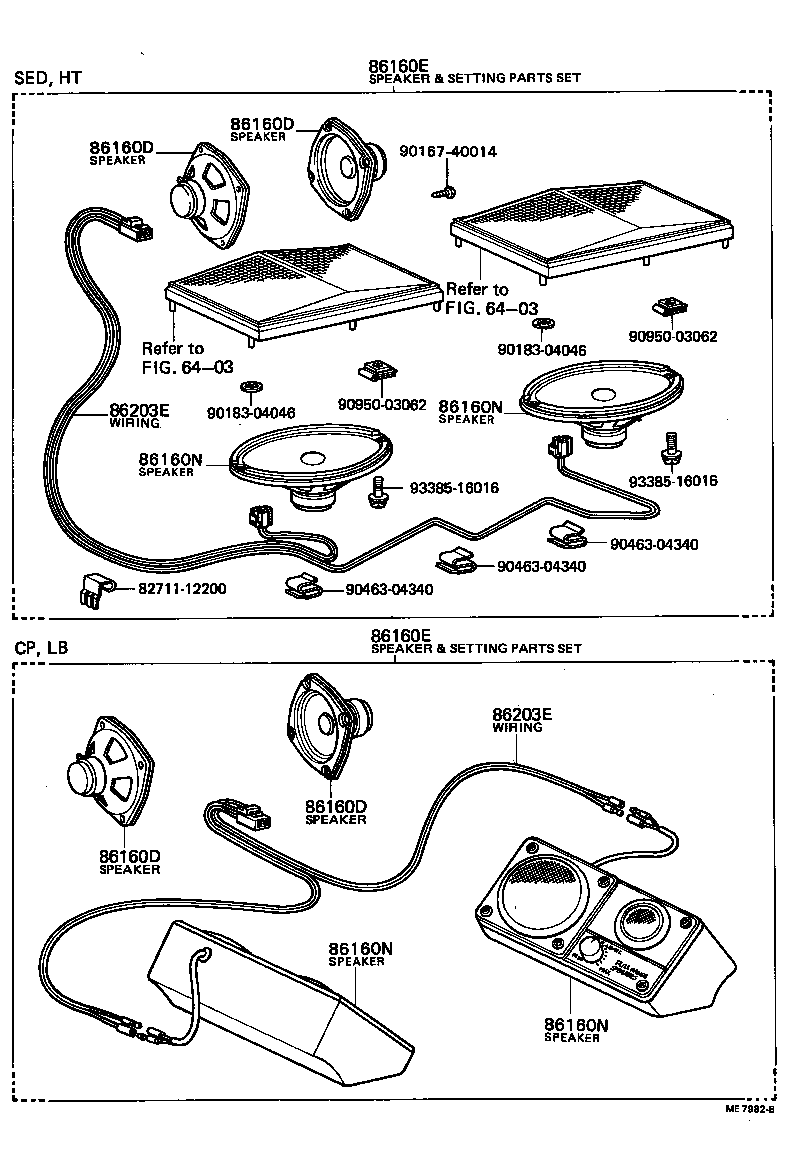

Figure ME8222B ME8222B 1979-03 → — Figure ME7982B ME7982B 1979-03 → 1981-08 Figure MEA450 MEA450 1979-03 → 1981-08

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160D Speaker Assy, Stereo Component, Front
86160E Speaker Set, Stereo Component
86160N Speaker Assy, Stereo Component, Rear
86203E Wire, Stereo Component Speaker, NO.1
86219 Bracket, Stereo Component Speaker, NO.1
86219A Bracket, Stereo Component Speaker, NO.2
86219B Bracket, Stereo Component Speaker, NO.3
86219C Bracket, Stereo Component Speaker, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
