Heating & Air Conditioning - Cooler Unit

18 part groups · 3 illustrations

Illustrations

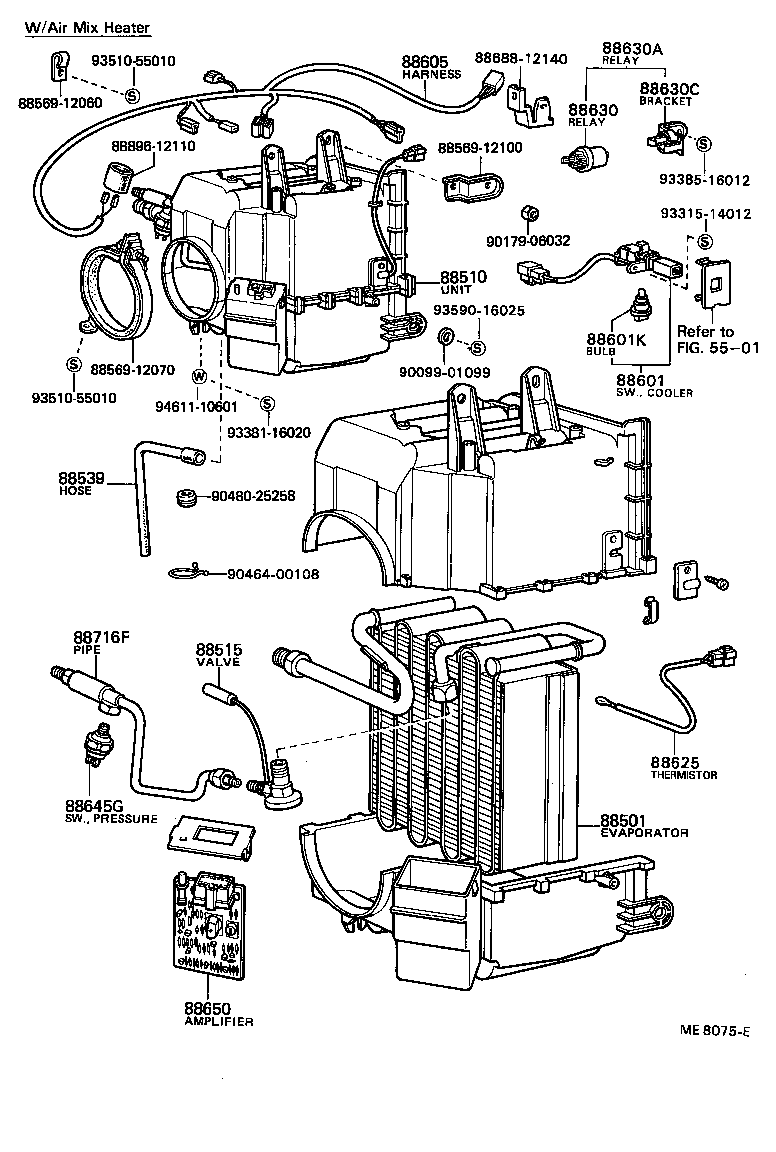

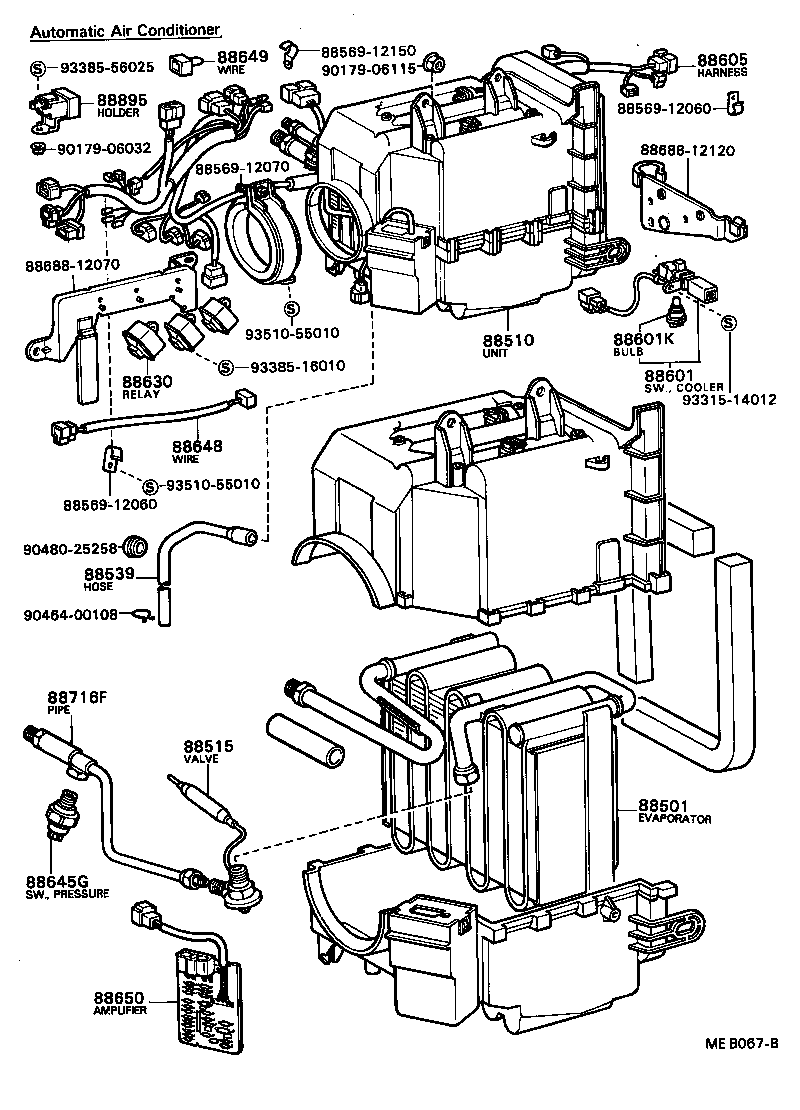

Figure ME8074E ME8074E 1979-03 → — Figure ME8075E ME8075E 1979-03 → — Figure MEB067B MEB067B 1981-08 → —

Part groups

PNCDescription
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88601 Switch Sub-assy, Cooler Control
88601K Bulb(FOR COOLER SWITCH)
88605 Harness Sub-assy, Cooler Wiring, NO.1
88611 Knob, Cooler Control Switch
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630C Bracket, Cooler Relay
88645G Switch, Pressure
88648 Wiring, Cooler, NO.1
88649 Wiring, Cooler, NO.2
88650 Amplifier Assy, Cooler Stabilizer
88716F Pipe, Cooler Refrigerant Liquid, F
88895 Holder, Fuse
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
