Toyota Sprinter Trueno

1983-05 → 1987-04 · chassis AE8# · catalogue 162150 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

6 part groups · 2 illustrations

Illustrations

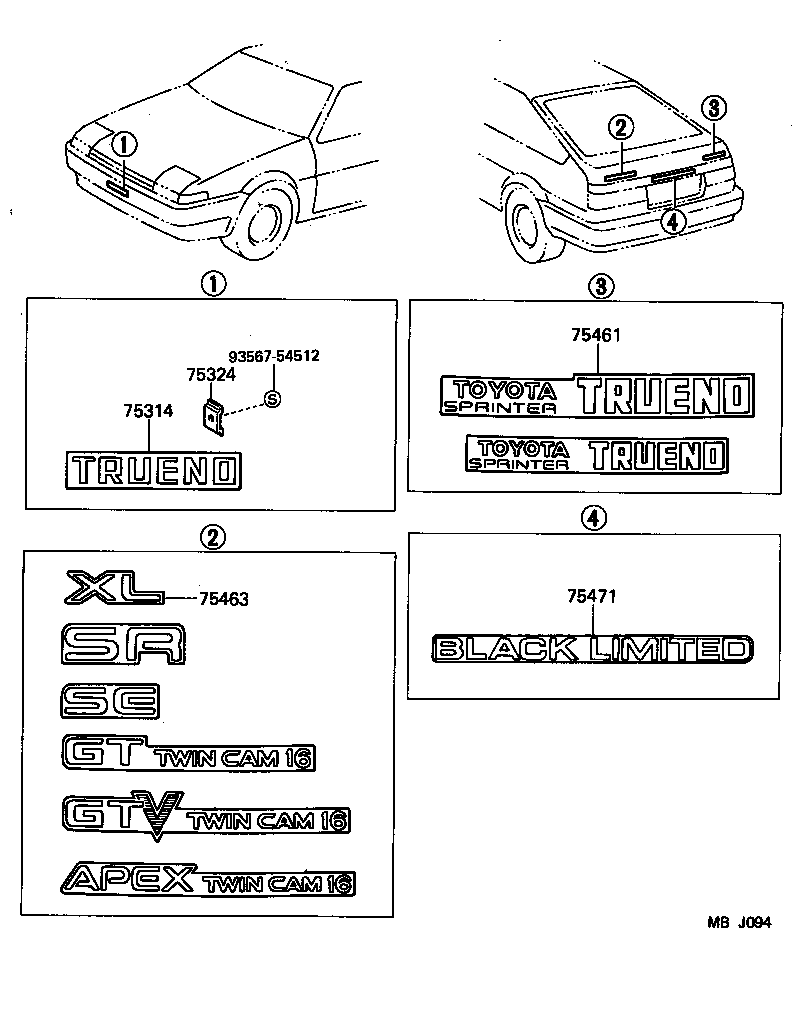

Figure MBF066D MBF066D 1983-05 → 1985-05 Figure MBJ094 MBJ094 1985-05 → —

Part groups

PNCDescription
75314 Emblem, Front Bumper
75324 Retainer, Front Bumper Emblem
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75462 Plate, Rear Name, NO.3 (DISPLACEMENT)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75471 Plate, Rear Body Name, NO.1(MODEL MARK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
