Toyota Wish

2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan

Supported model Data version 2009-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

11 part groups · 4 illustrations

Illustrations

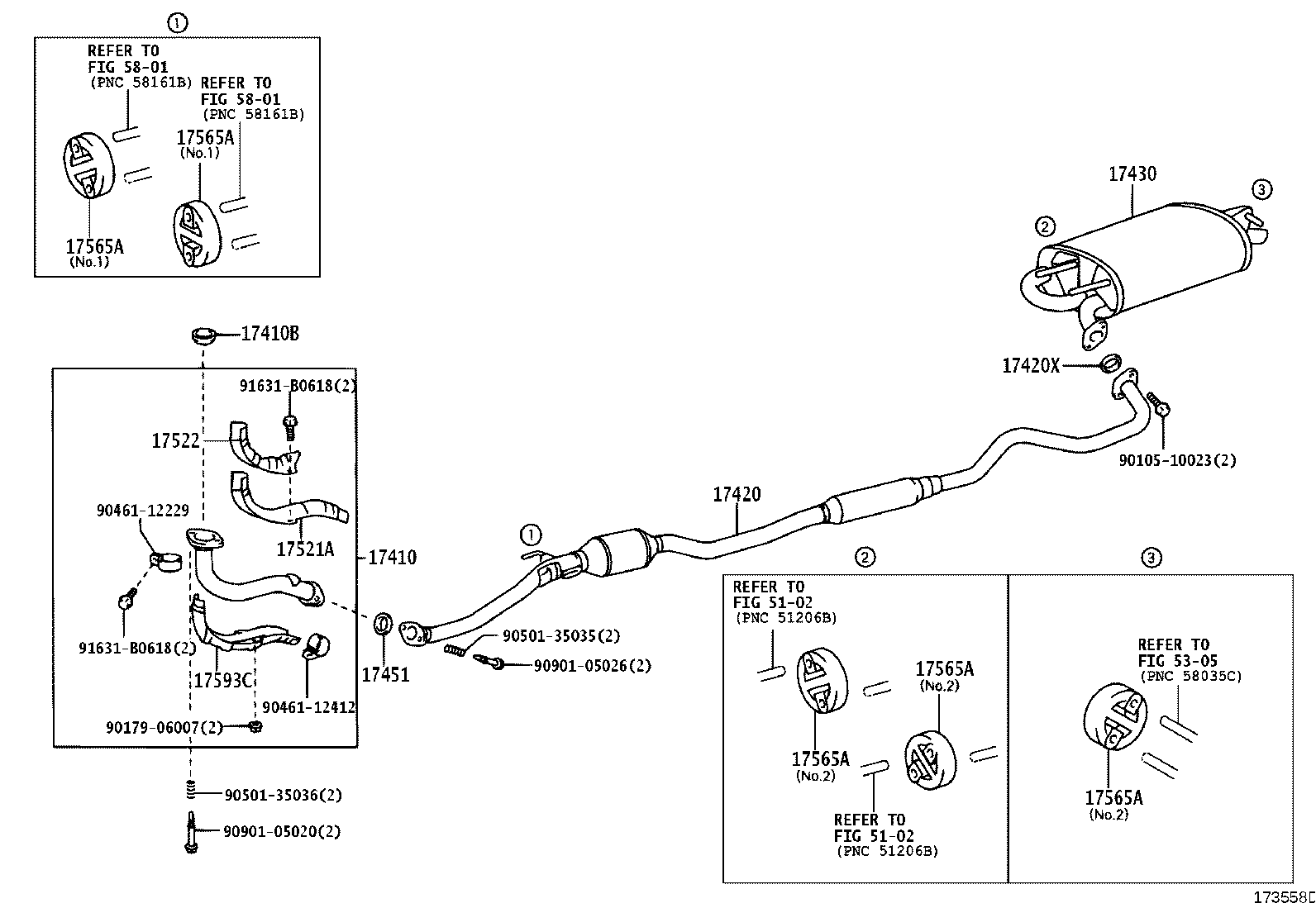

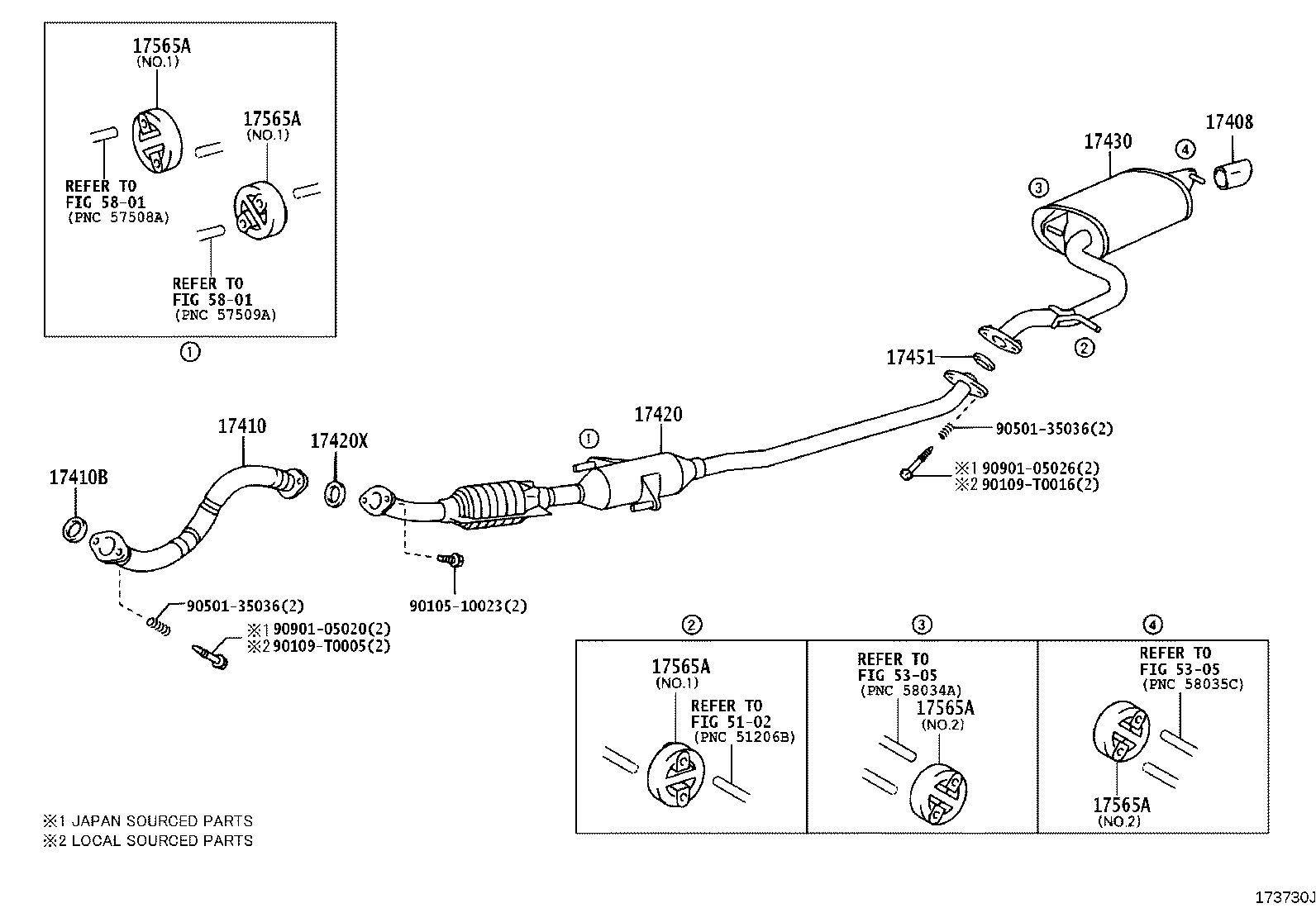

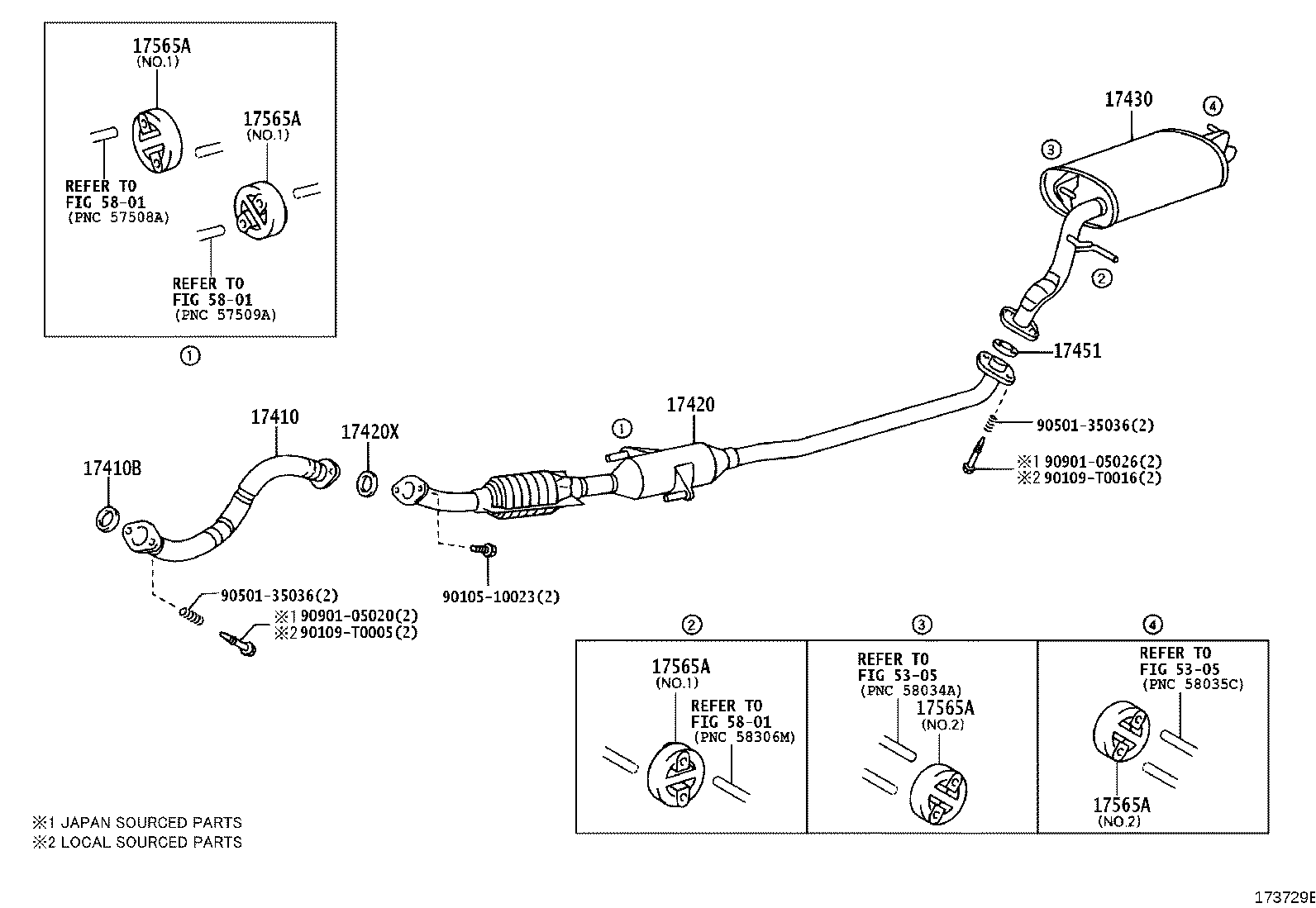

Figure 173557A 173557A 2003-01 → — Figure 173558D 173558D 2003-01 → — Figure 173729E 173729E 2003-04 → — Figure 173730J 173730J 2003-04 → —

Part groups

PNCDescription
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17521A Protector, Exhaust Pipe, Upper NO.1
17522 Protector, Exhaust Pipe, Upper NO.2
17565A Support, Exhaust Pipe, NO.4
17593C Protector, Exhaust Pipe, Lower NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
