Toyota Wish

2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan

Supported model Data version 2009-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

11 part groups · 2 illustrations

Illustrations

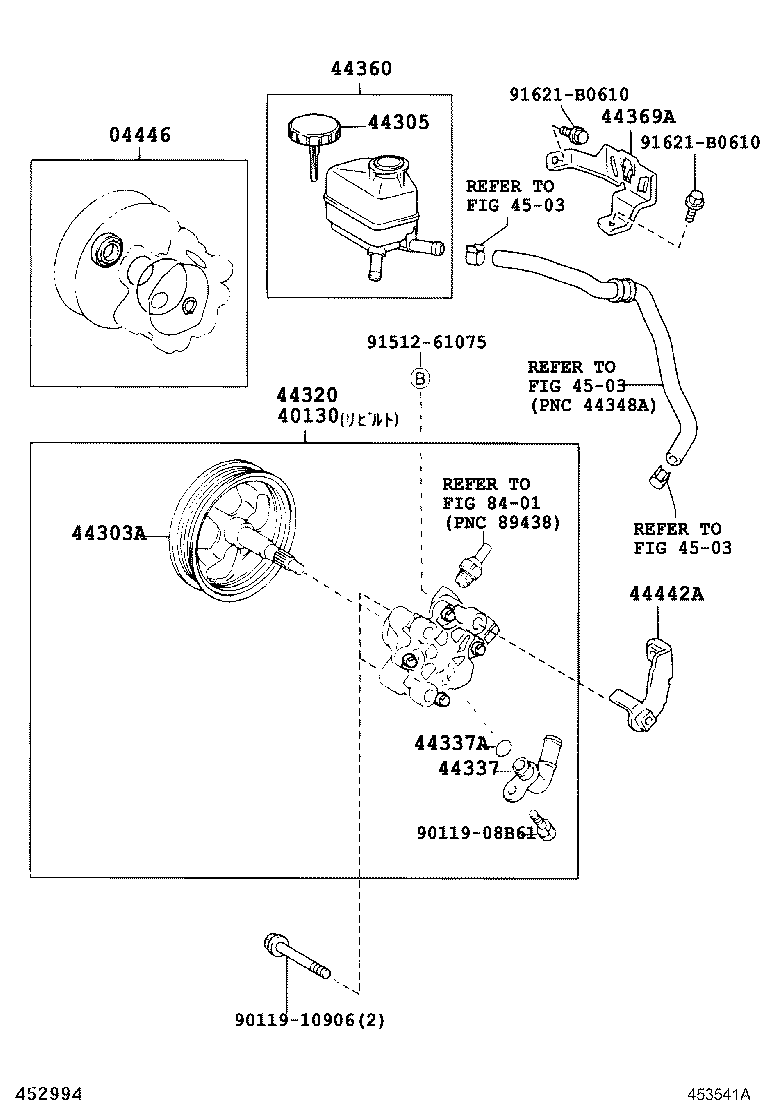

Figure 453432A 453432A 2003-01 → — Figure 453541A 453541A 2003-04 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
40130 Pump Assy,Vane Rebuilt
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44360 Reservoir Assy, Vane Pump Oil
44369A Bracket, Oil Reservoir, NO.1
44393 Insulator, Power Steering Pump Heat
44442A Bracket, Vane Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
