Toyota Wish

2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan

Supported model Data version 2009-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

11 part groups · 2 illustrations

Illustrations

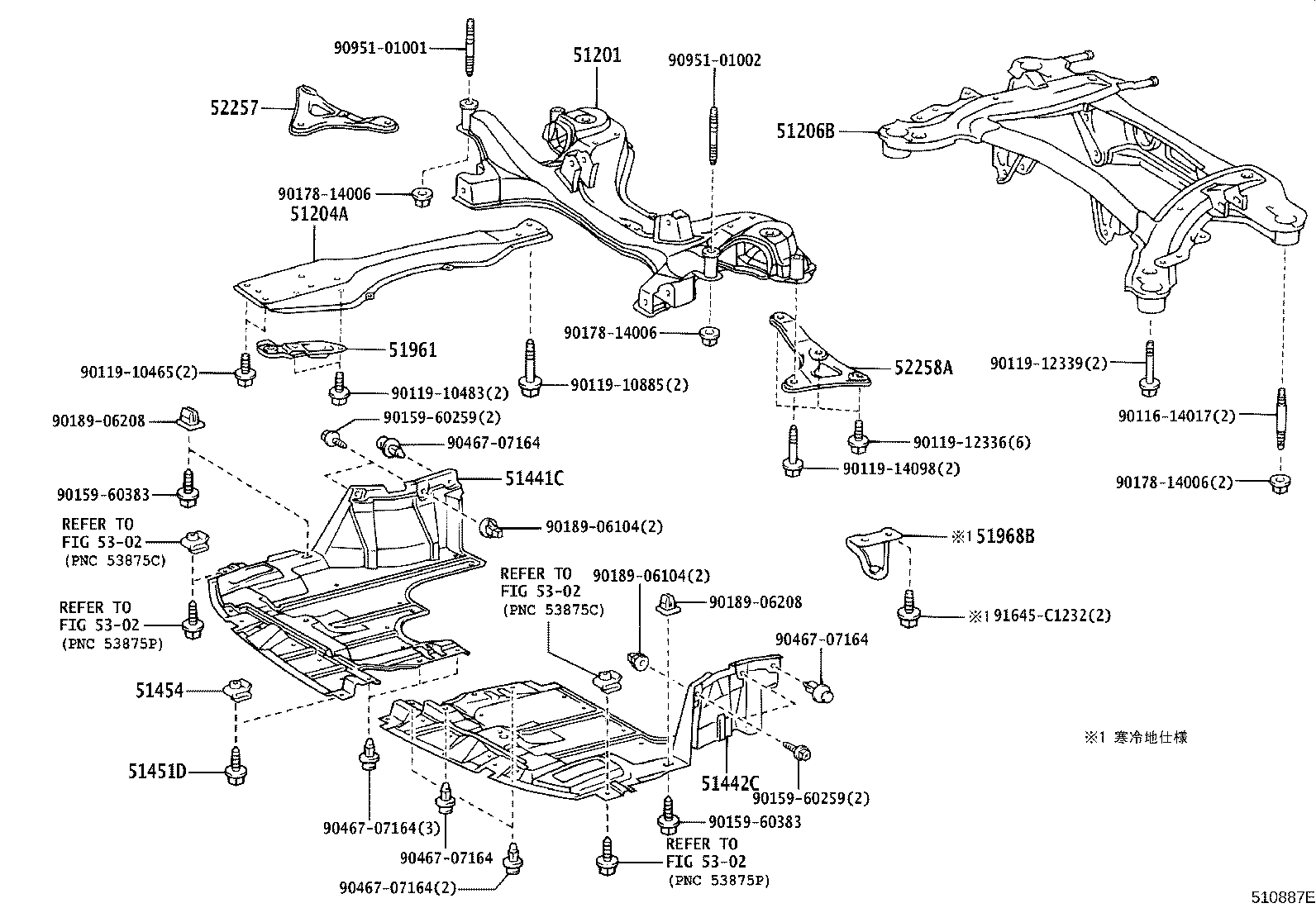

Figure 510886E 510886E 2003-01 → — Figure 510887E 510887E 2003-01 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51206B Crossmember Sub-assy, Frame, NO.6
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51451D Screw, NO.1
51454 Clip
51961 Hook, NO.1
51968B Hook, Transport, Rear LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
