Toyota Wish

2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan

Supported model Data version 2009-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

17 part groups · 3 illustrations

Illustrations

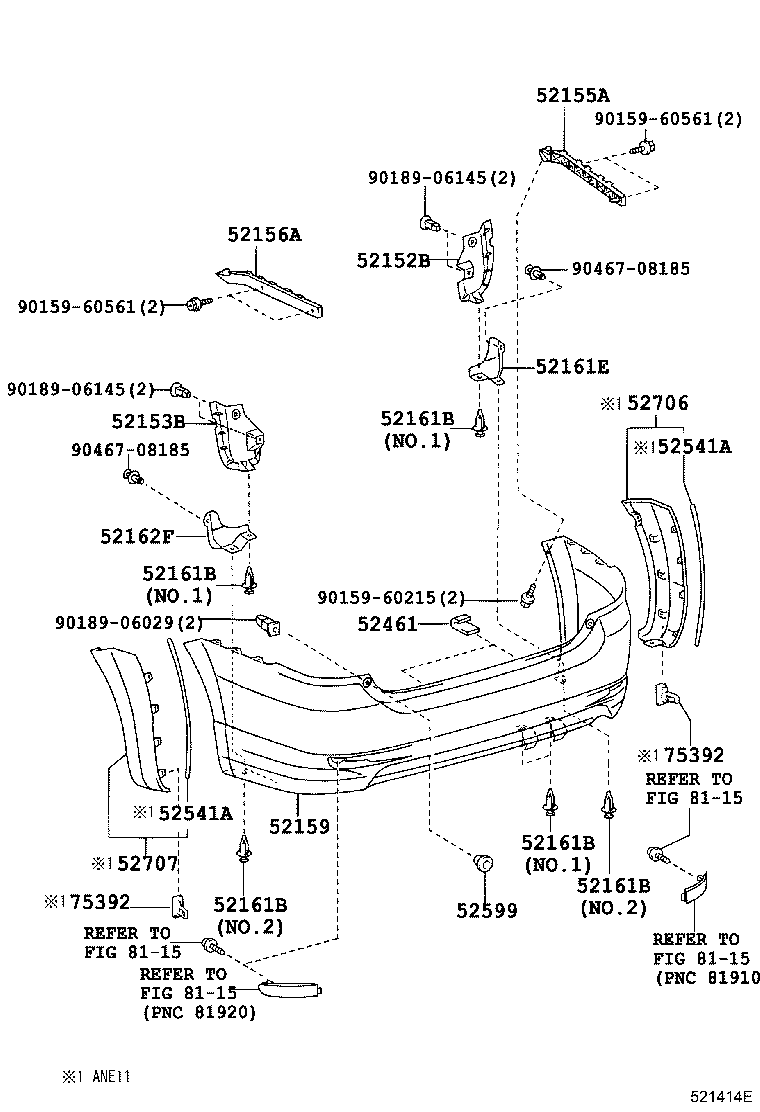

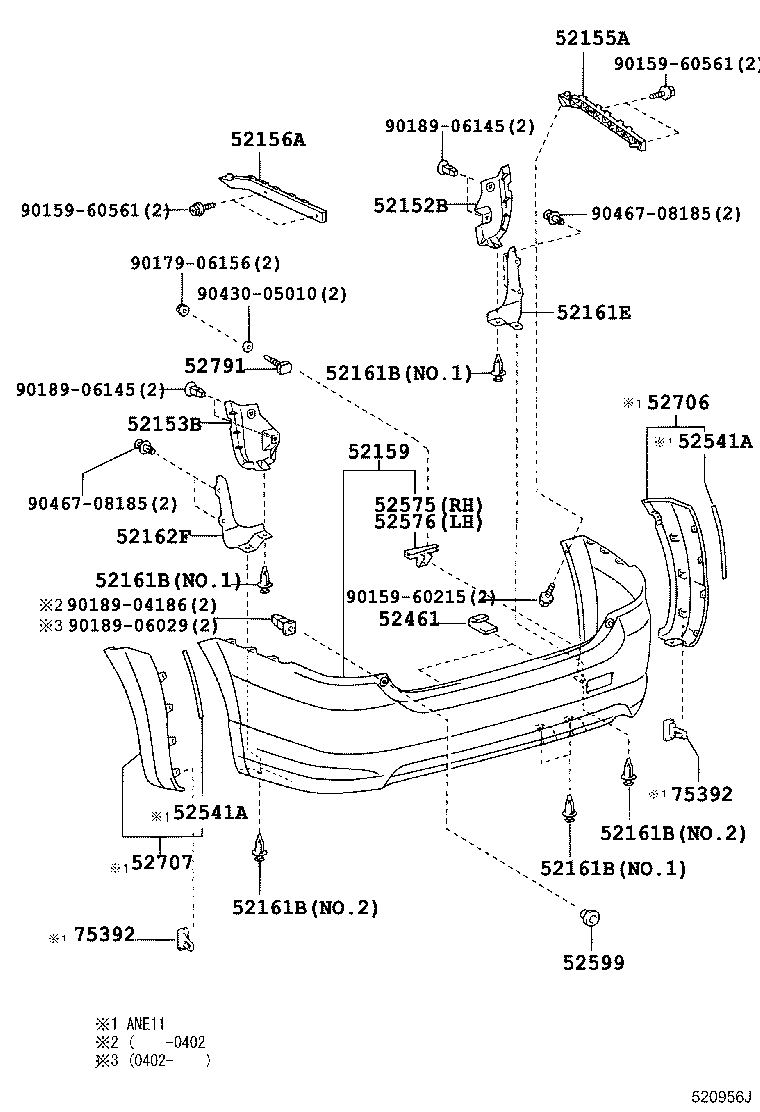

Figure 520955J 520955J 2003-01 → — Figure 520956J 520956J 2003-01 → 2005-08 Figure 521414E 521414E 2005-08 → —

Part groups

PNCDescription
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52161E Extension, Rear Bumper Side, RH
52162F Extension, Rear Bumper Side, LH
52461 Pad, Rear Bumper, Center
52541A Protector, Rear Bumper
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52599 Stopper, Rear Bumper, Upper
52706 Moulding Sub-assy, Rear Bumper Side, RH
52707 Moulding Sub-assy, Rear Bumper Side, LH
52791 Bolt, Bumper Moulding Set, NO.1
75392 Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
