Toyota Wish

2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan

Supported model Data version 2009-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 2 illustrations

Illustrations

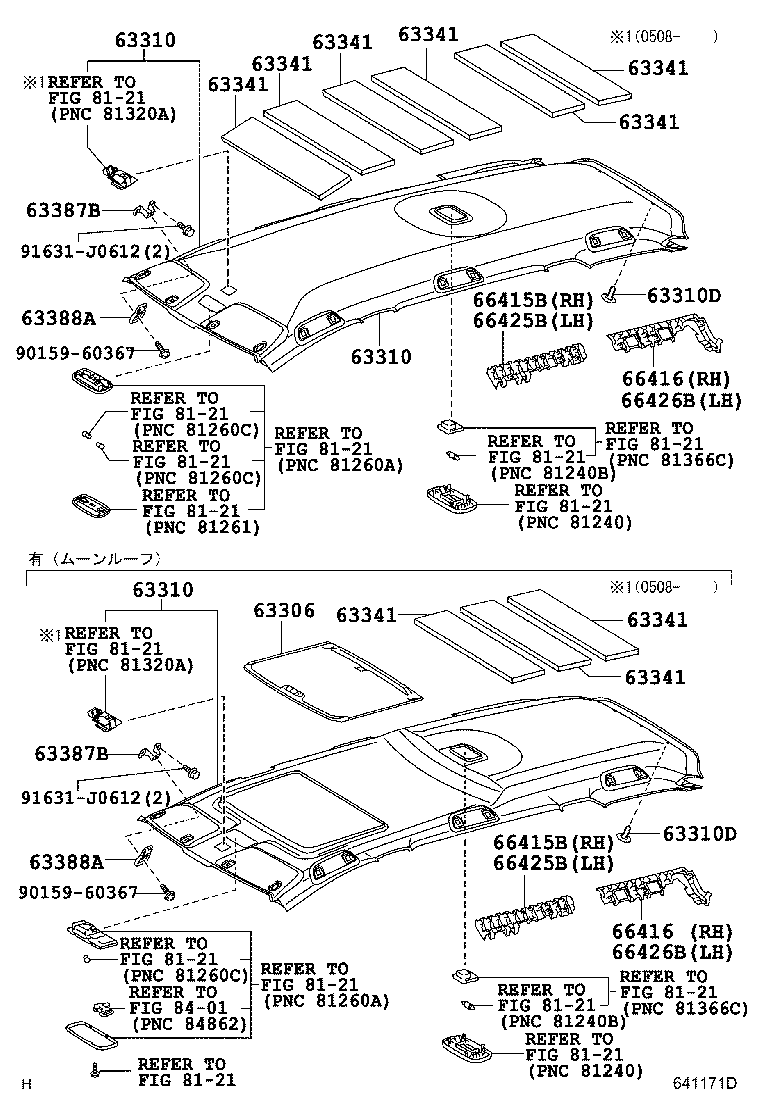

Figure 641170D 641170D 2003-01 → — Figure 641171D 641171D 2003-01 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63341 Pad, Roof Silencer, NO.1
63387B Bracket, Roof Headlining Retainer
63388A Cover, Roof Headlining Holder
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66416 Spacer, Side Rail, Rear NO.3 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
66426B Spacer, Side Rail, Rear NO.3 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
