Toyota Wish

2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan

Supported model Data version 2009-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

17 part groups · 3 illustrations

Illustrations

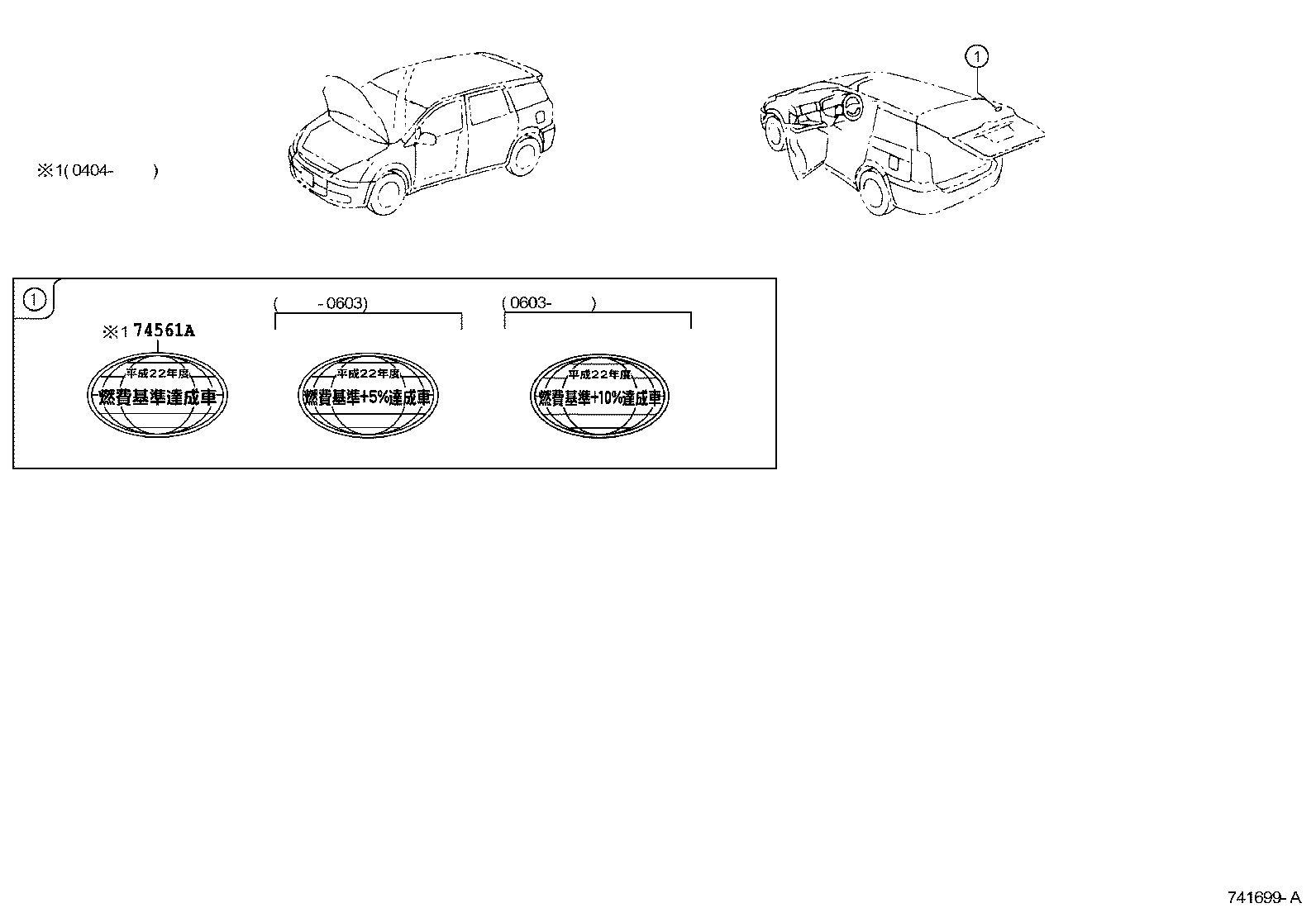

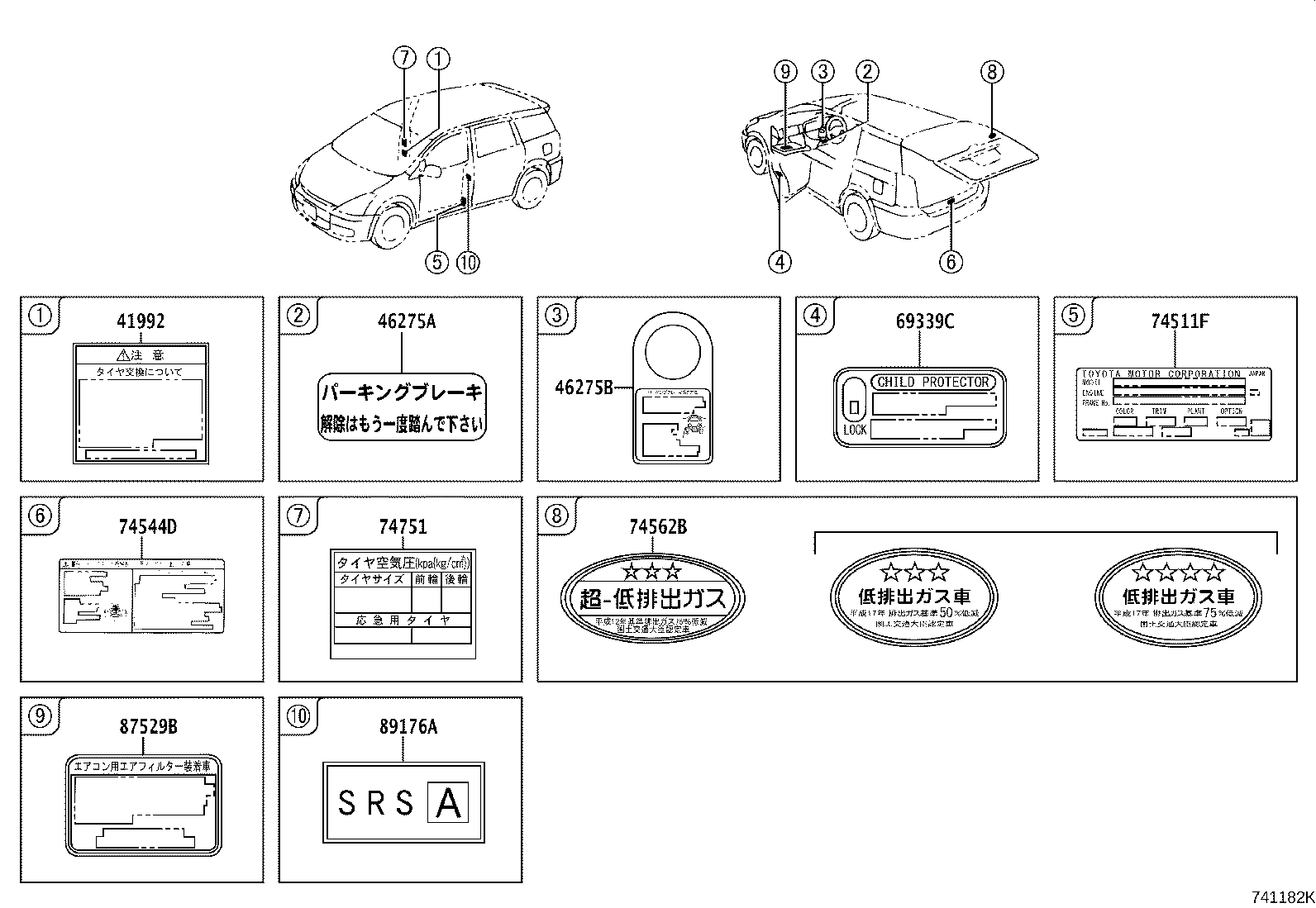

Figure 745477A 745477A 2003-01 → — Figure 741182K 741182K 2003-01 → — Figure 741699A 741699A 2003-01 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11289B Label, Spark Plug Notice
11296C Label, Engine Service Information
16448A Plate, Radiator Caution
16793E Label, Cooling Fan Caution
41992 Label, Differential Notice
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74544D Plate, Tire Carrier Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
