Toyota Wish
2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan
Supported model
Data version 2009-09

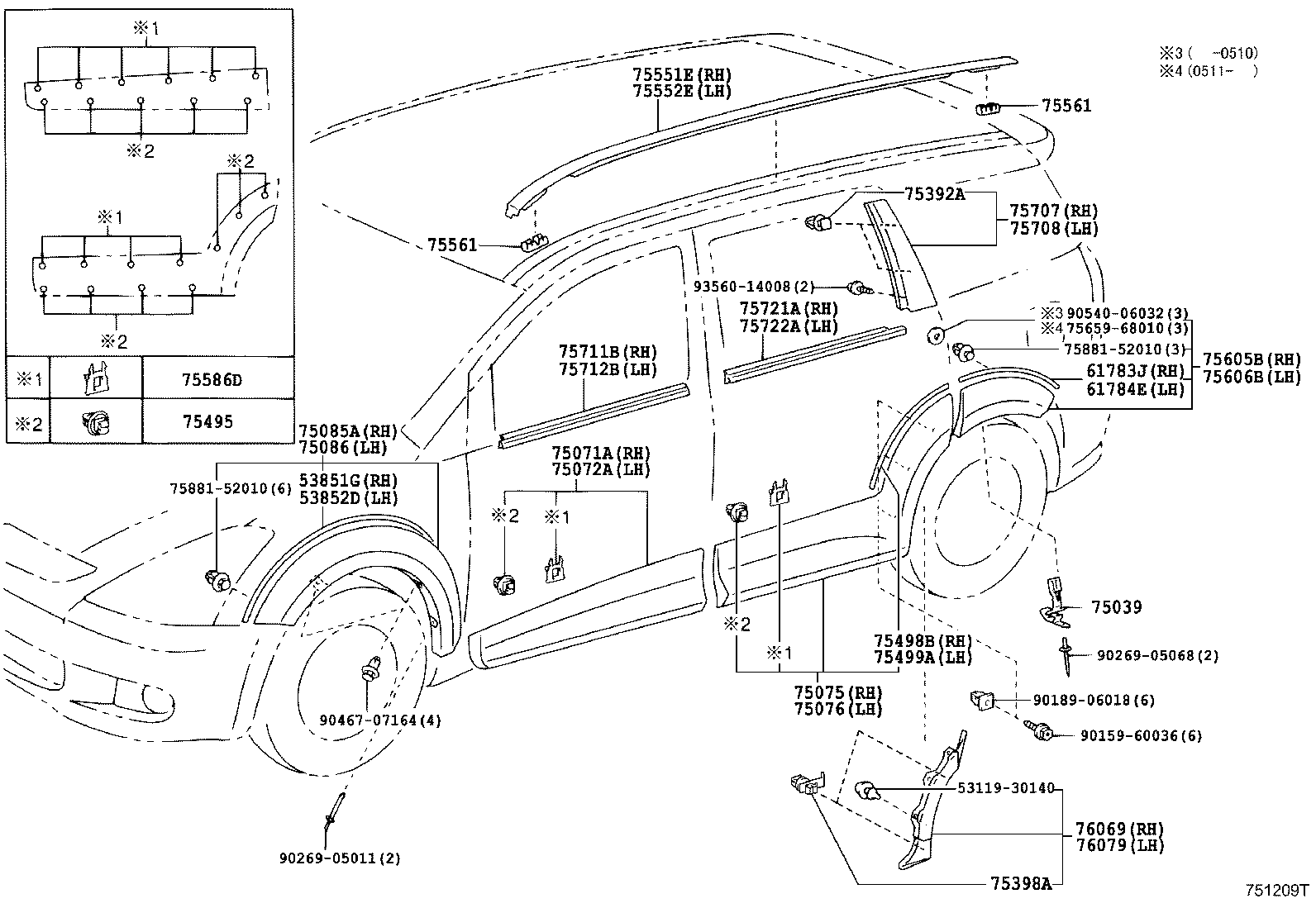

Side Moulding
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53851G | Pad, Front Wheel Opening Extension, RH |
| 53852D | Pad, Front Wheel Opening Extension, LH |
| 61783J | Pad, Rear Wheel Opening Extension, NO.2 |
| 61784E | Pad, Rear Wheel Opening Extension, NO.2 |
| 75039 | Clip Sub-assy, Outside Moulding |
| 75071A | Moulding Sub-assy, Front Door, Outside RH |
| 75072A | Moulding Sub-assy, Front Door, Outside LH |
| 75075 | Moulding Sub-assy, Rear Door, Outside RH |
| 75076 | Moulding Sub-assy, Rear Door, Outside LH |
| 75085A | Moulding Sub-assy, Front Fender Wheel Opening, RH |
| 75086 | Moulding Sub-assy, Front Fender Wheel Opening, LH |
| 75392A | Retainer, Outside Moulding, NO.1 |
| 75398A | Clip, Outside Moulding, NO.5 |
| 75495 | Clip, Outside Moulding, NO.4 |
| 75498B | Seal, Outside Moulding, NO.2 |
| 75499A | Seal, Outside Moulding, NO.3 |
| 75551E | Moulding, Roof Drip Side Finish, RH |
| 75552E | Moulding, Roof Drip Side Finish, LH |
| 75561 | Clip, Roof Drip Side Finish Moulding, NO.1 |
| 75586D | Retainer, Quarter Garnish Front Moulding, NO.2 |
| 75605B | Moulding Sub-assy, Quarter Outside, RH |
| 75606B | Moulding Sub-assy, Quarter Outside, LH |
| 75707 | Moulding Sub-assy, Rear Door Window Frame, RH |
| 75708 | Moulding Sub-assy, Rear Door Window Frame, LH |
| 75711B | Moulding, Front Door Belt, RH |
| 75712B | Moulding, Front Door Belt, LH |
| 75721A | Moulding, Rear Door Belt, RH |
| 75722A | Moulding, Rear Door Belt, LH |
| 75851 | Moulding, Rocker Panel, RH |
| 75852 | Moulding, Rocker Panel, LH |
| 76069 | Cover Sub-assy, Rear Door Mudguard, RH |
| 76079 | Cover Sub-assy, Rear Door Mudguard, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
