Toyota Wish

2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan

Supported model Data version 2009-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

17 part groups · 2 illustrations

Illustrations

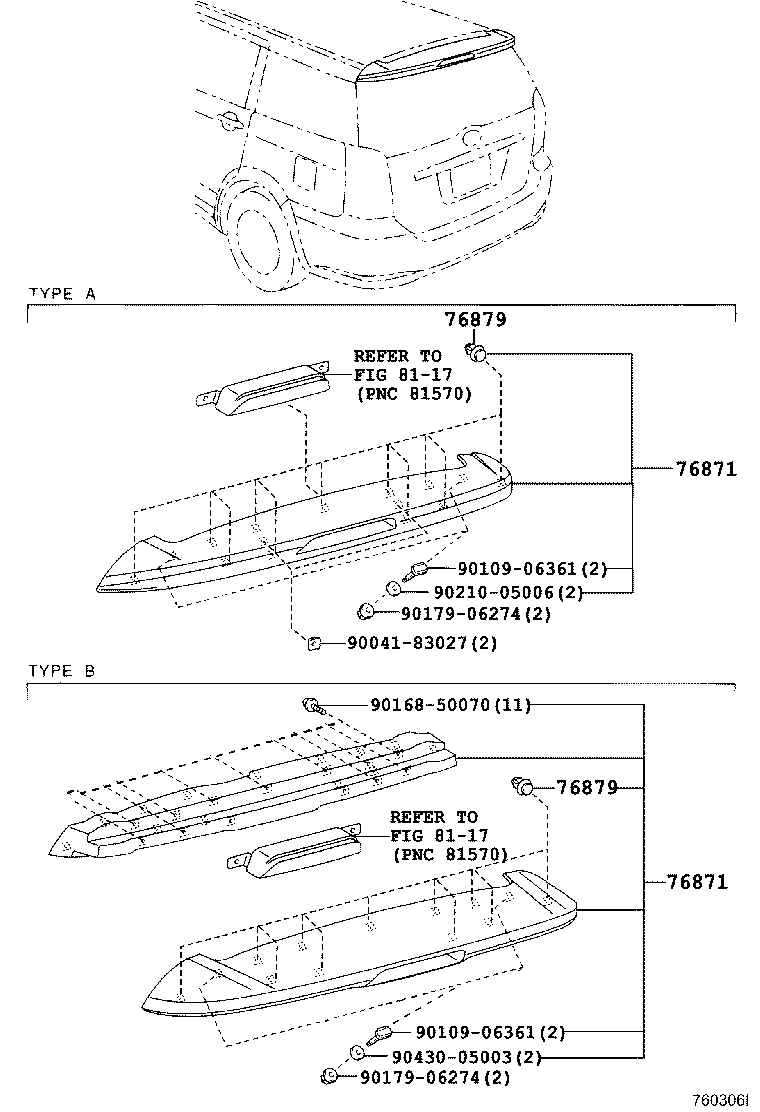

Figure 760305O 760305O 2003-01 → 2009-03 Figure 760306I 760306I 2003-01 → 2009-03

Part groups

PNCDescription
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76871 Spoiler, Rear
76879 Clip, Rear Spoiler, NO.1
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76923 Retainer, Side Mudguard
76924 Retainer, Side Mudguard, NO.2
76925D Protector, Side Mudguard, RH
76926D Protector, Side Mudguard, LH
76931A Bracket, Side Mudguard, NO.1 RH
76932A Bracket, Side Mudguard, NO.1 LH
76933A Bracket, Side Mudguard, NO.2 RH
76934A Bracket, Side Mudguard, NO.2 LH
76935 Retainer, Side Mudguard, NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
