Toyota Wish
2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan
Supported model
Data version 2009-09

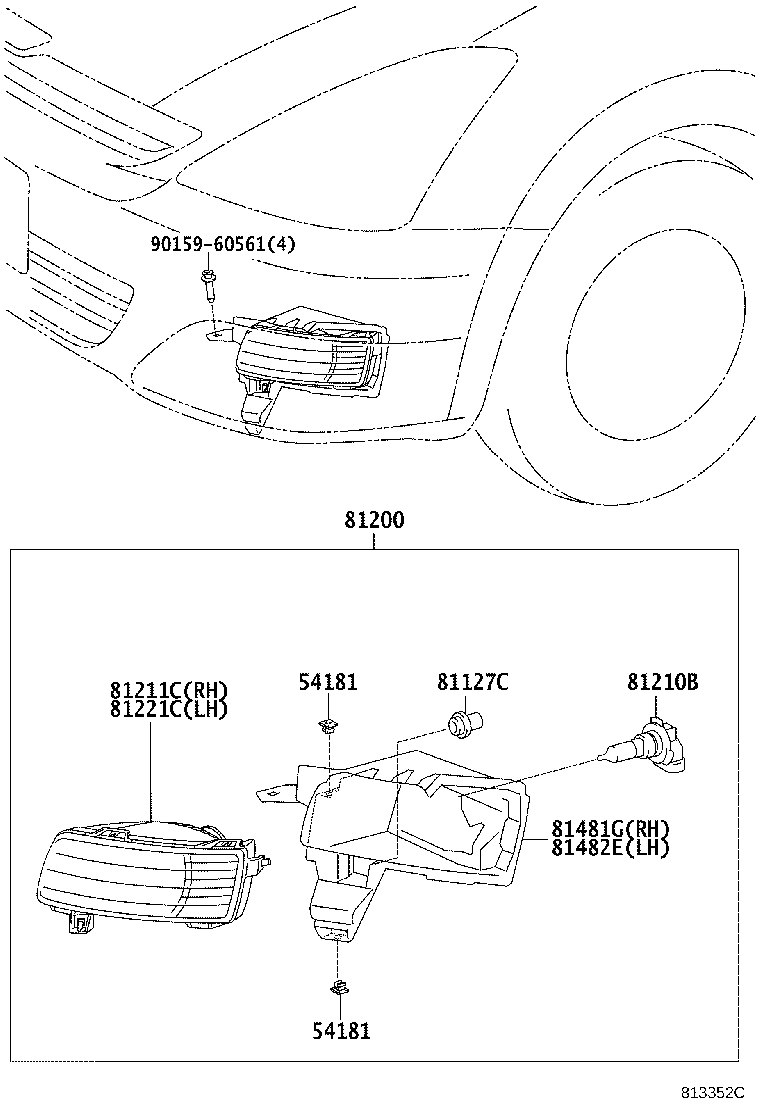

Fog Lamp
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 54181 | Bracket, Fog Lamp Base, NO.1 |
| 81127C | Bearing Fog Lamp |
| 81200 | Lamp Assy, Fog |
| 81210A | Lamp Assy, Fog, RH |
| 81210B | Bulb, Fog Lamp |
| 81211C | Lamp Unit, Fog Lamp, RH |
| 81220 | Lamp Assy, Fog, LH |
| 81221C | Lamp Unit, Fog Lamp, LH |
| 81481G | Bracket, Fog Lamp, RH |
| 81482E | Bracket, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
