Toyota Wish

2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan

Supported model Data version 2009-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

11 part groups · 2 illustrations

Illustrations

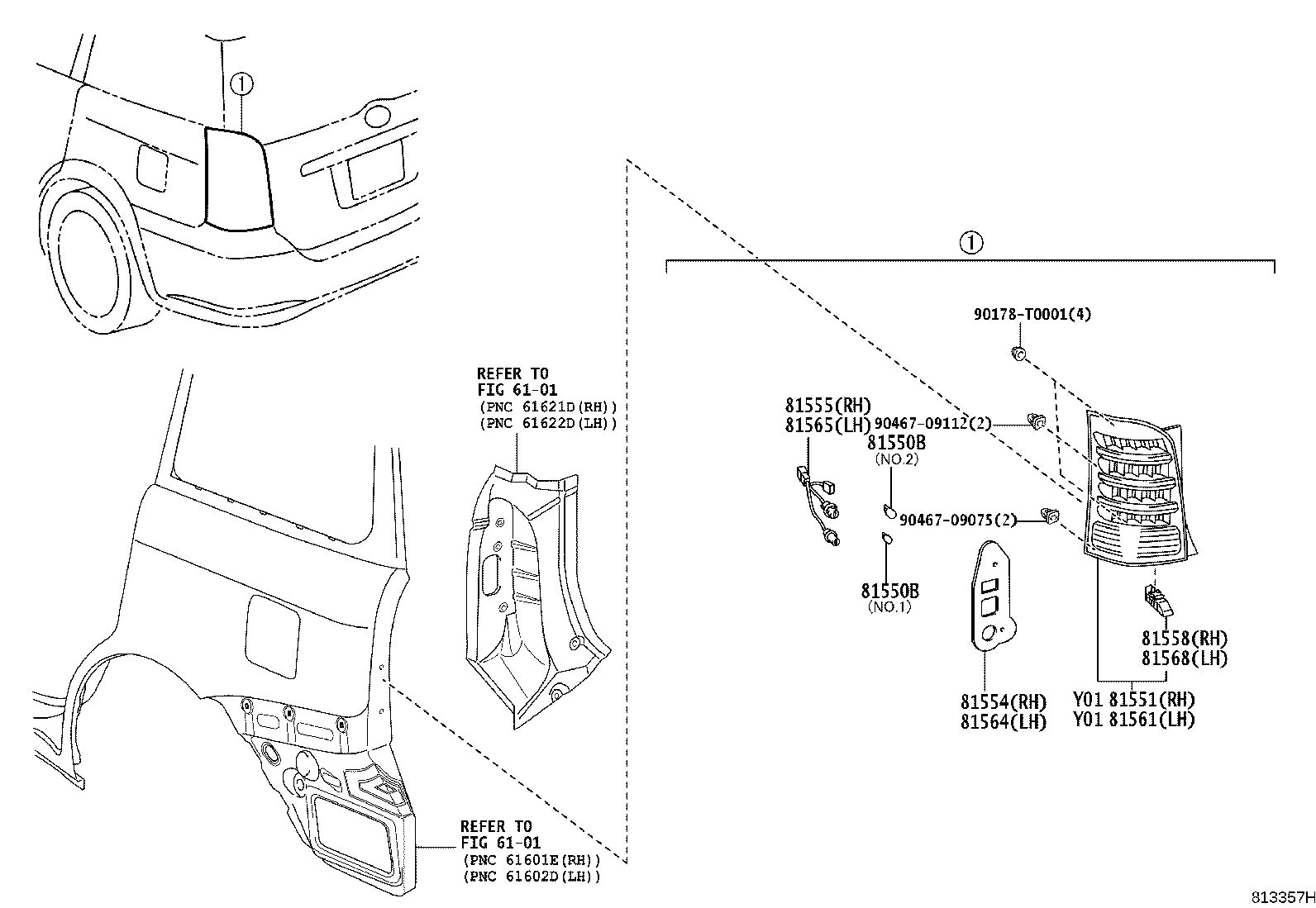

Figure 812443F 812443F 2003-01 → 2005-08 Figure 813357H 813357H 2005-08 → —

Part groups

PNCDescription
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81558 Shade, Rear Combination Lamp, NO.1 RH
81561 Lens, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
81584A Gasket, Rear Lamp RH
81594B Packing, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
