Toyota Wish

2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan

Supported model Data version 2009-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

84 part groups · 10 illustrations

Illustrations

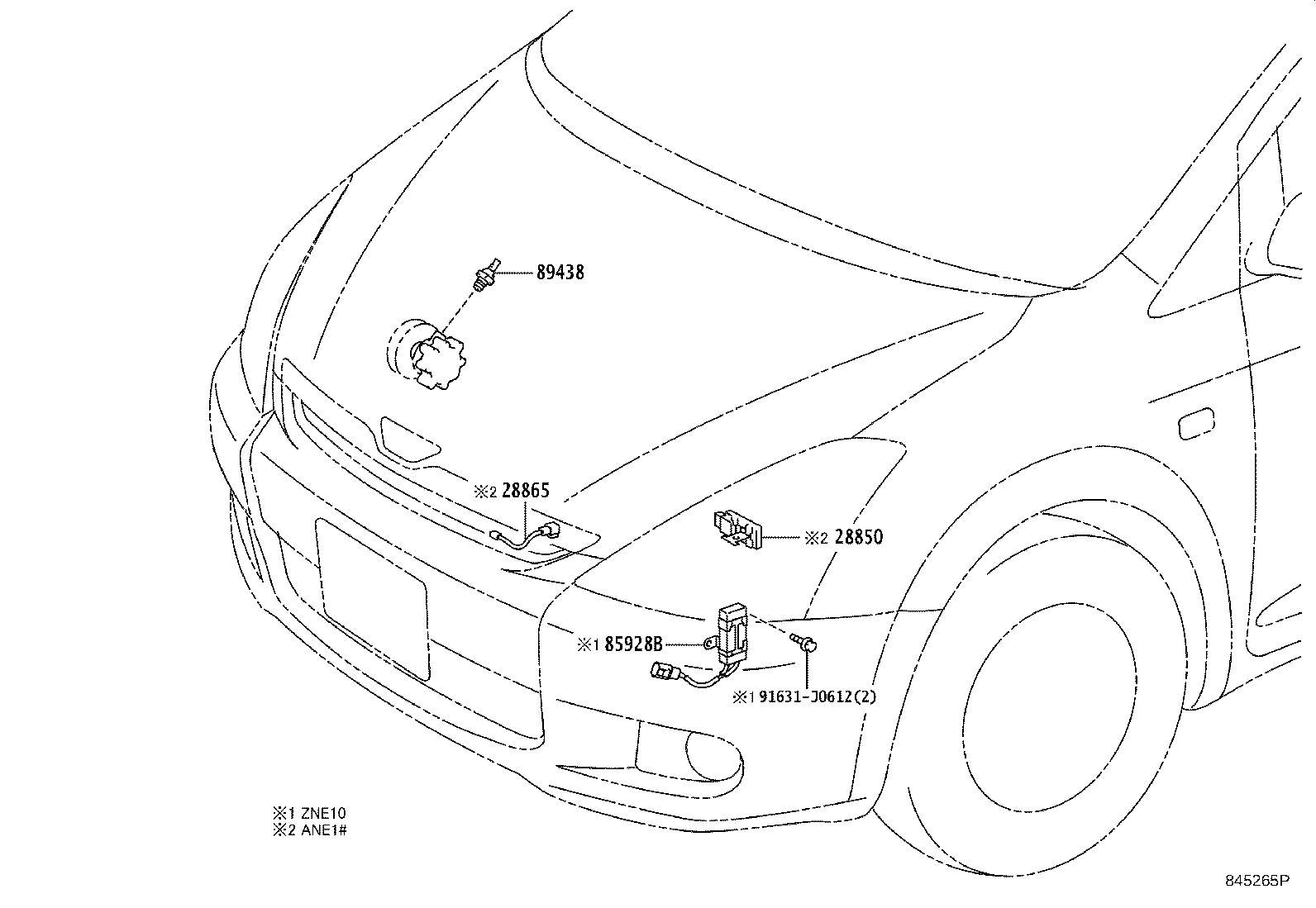

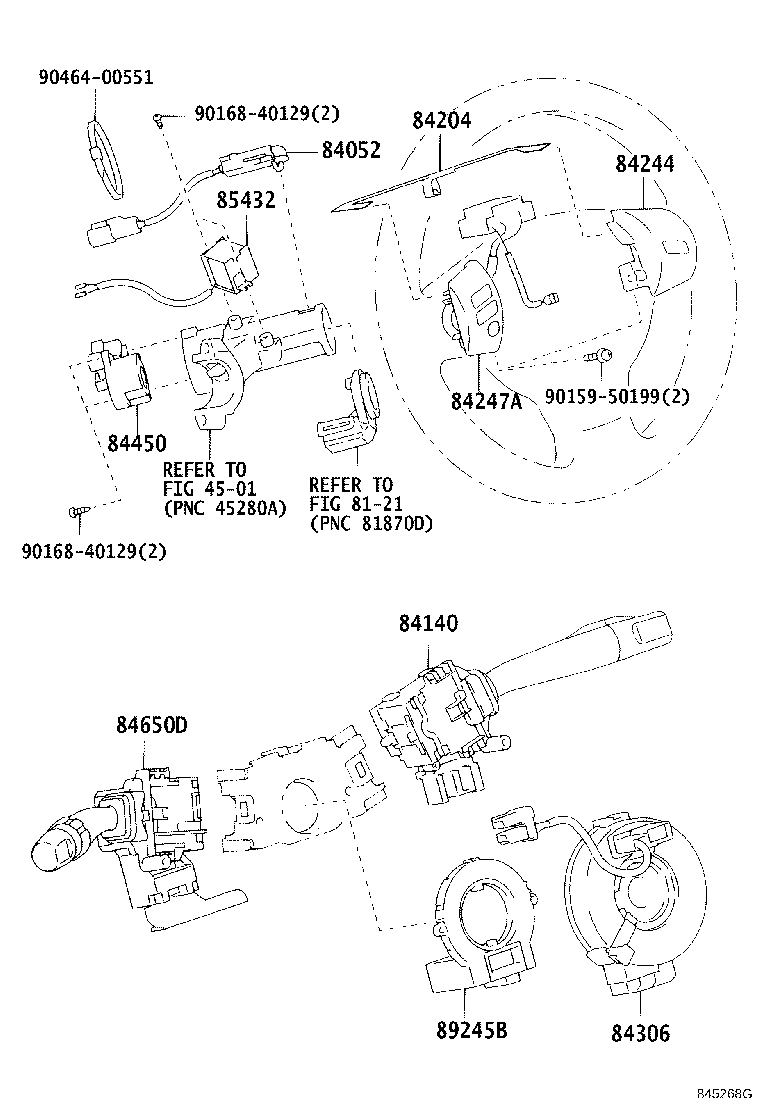

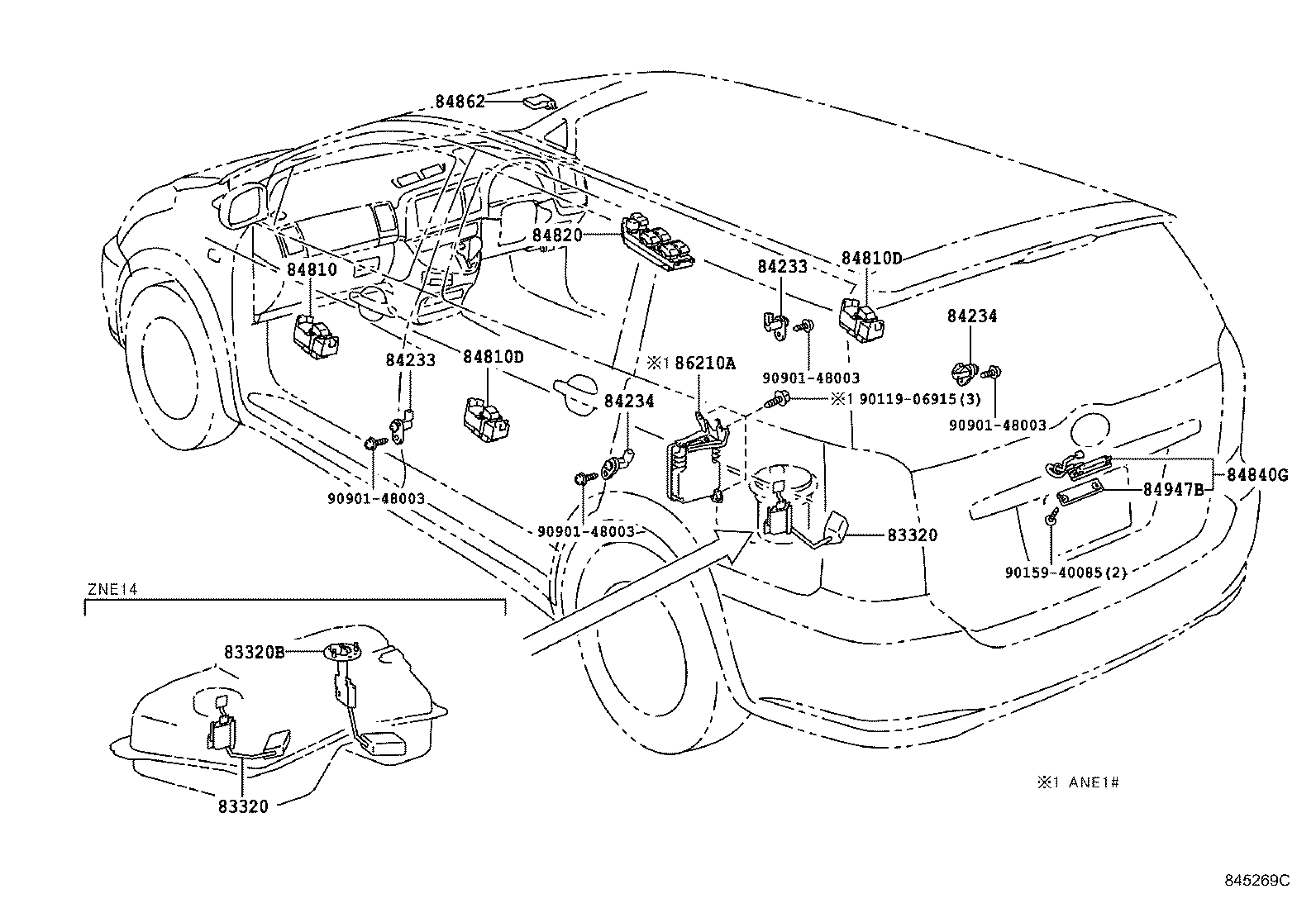

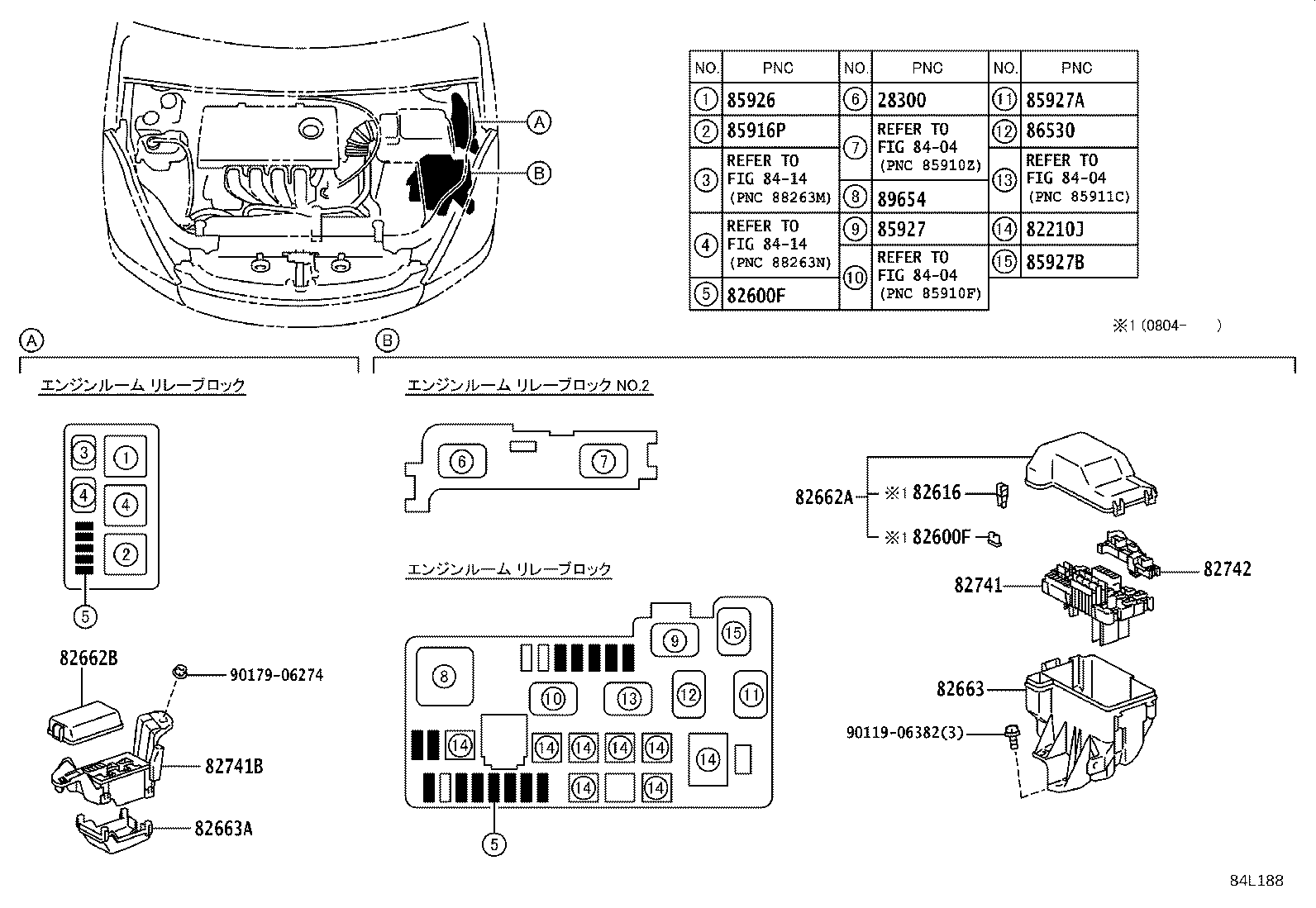

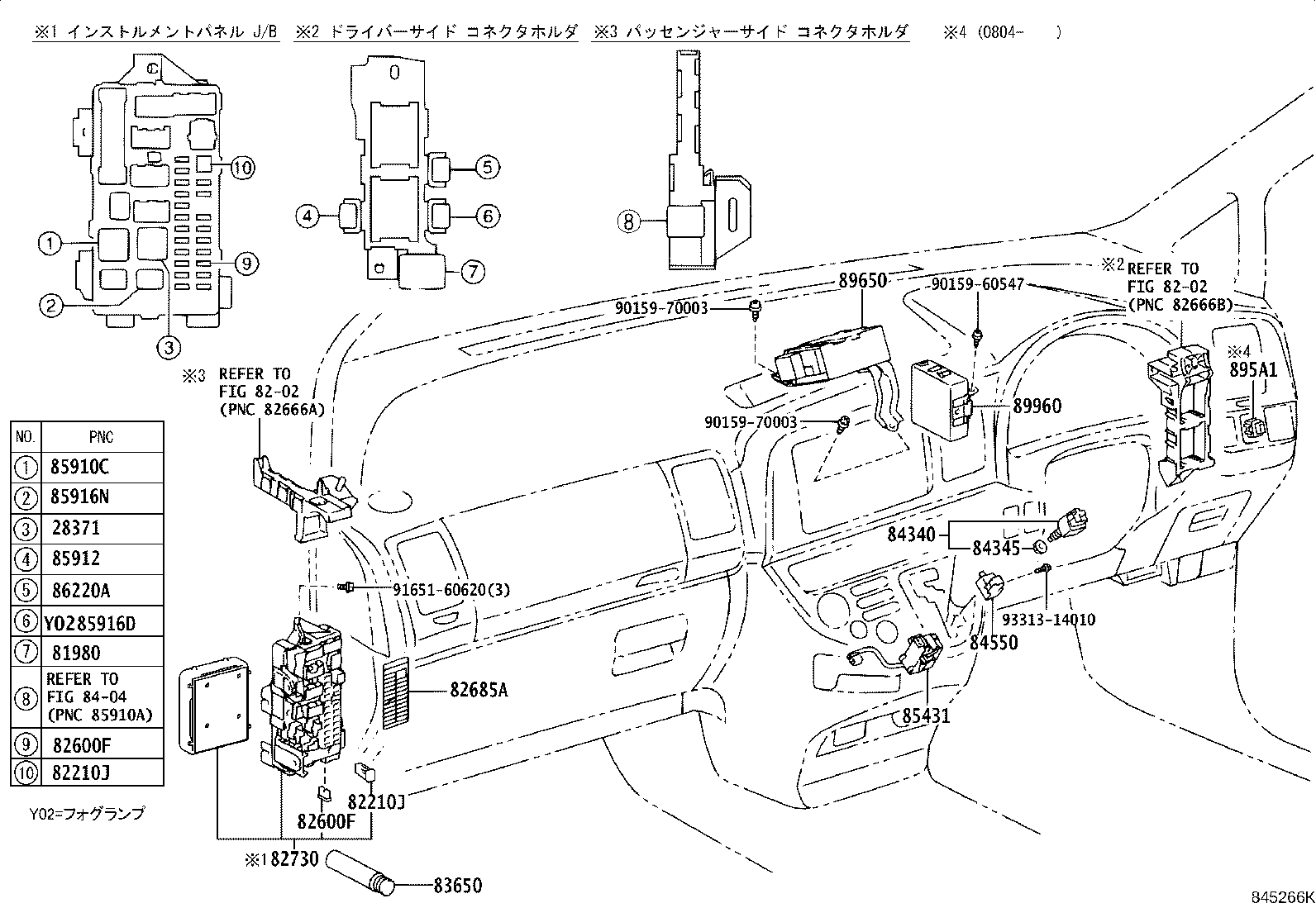

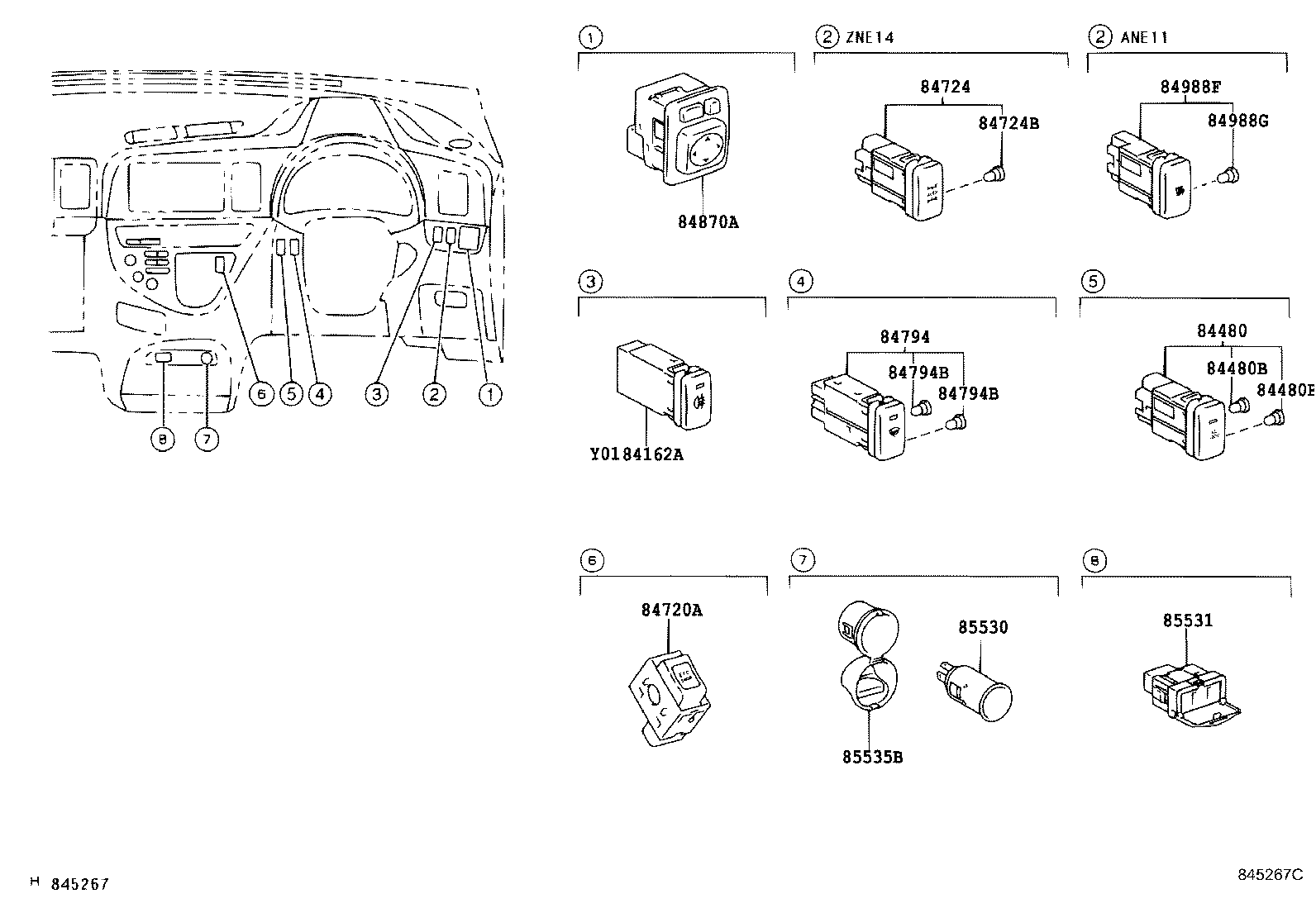

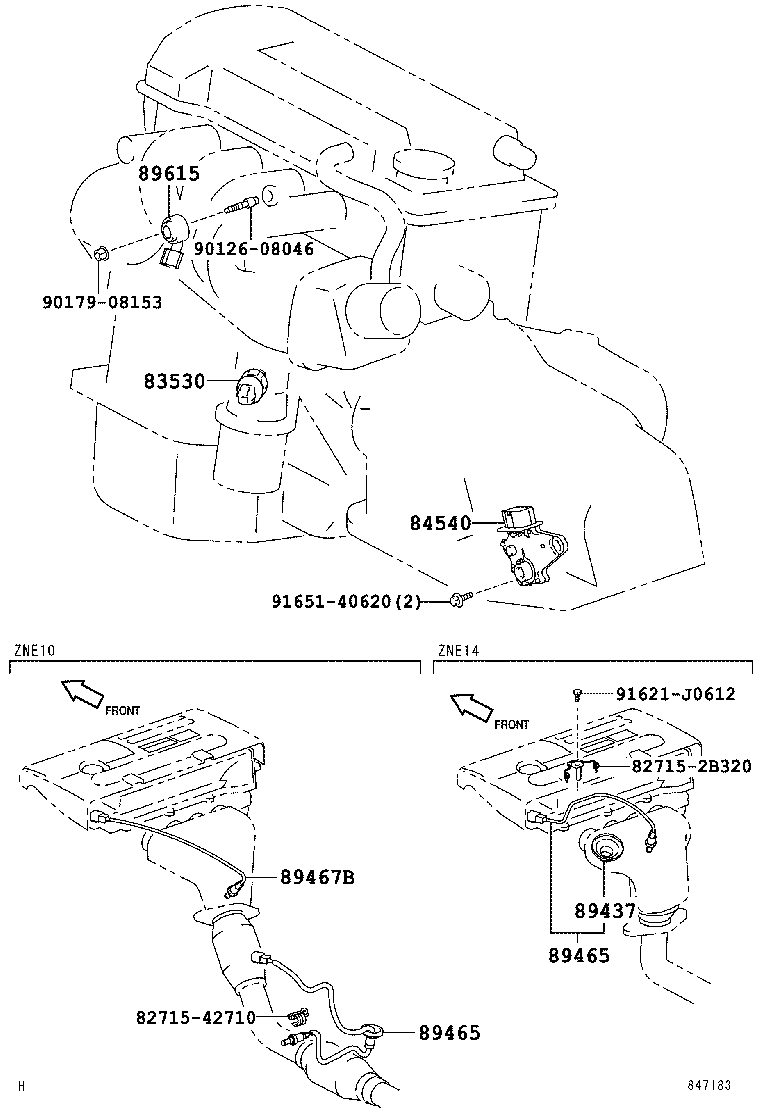

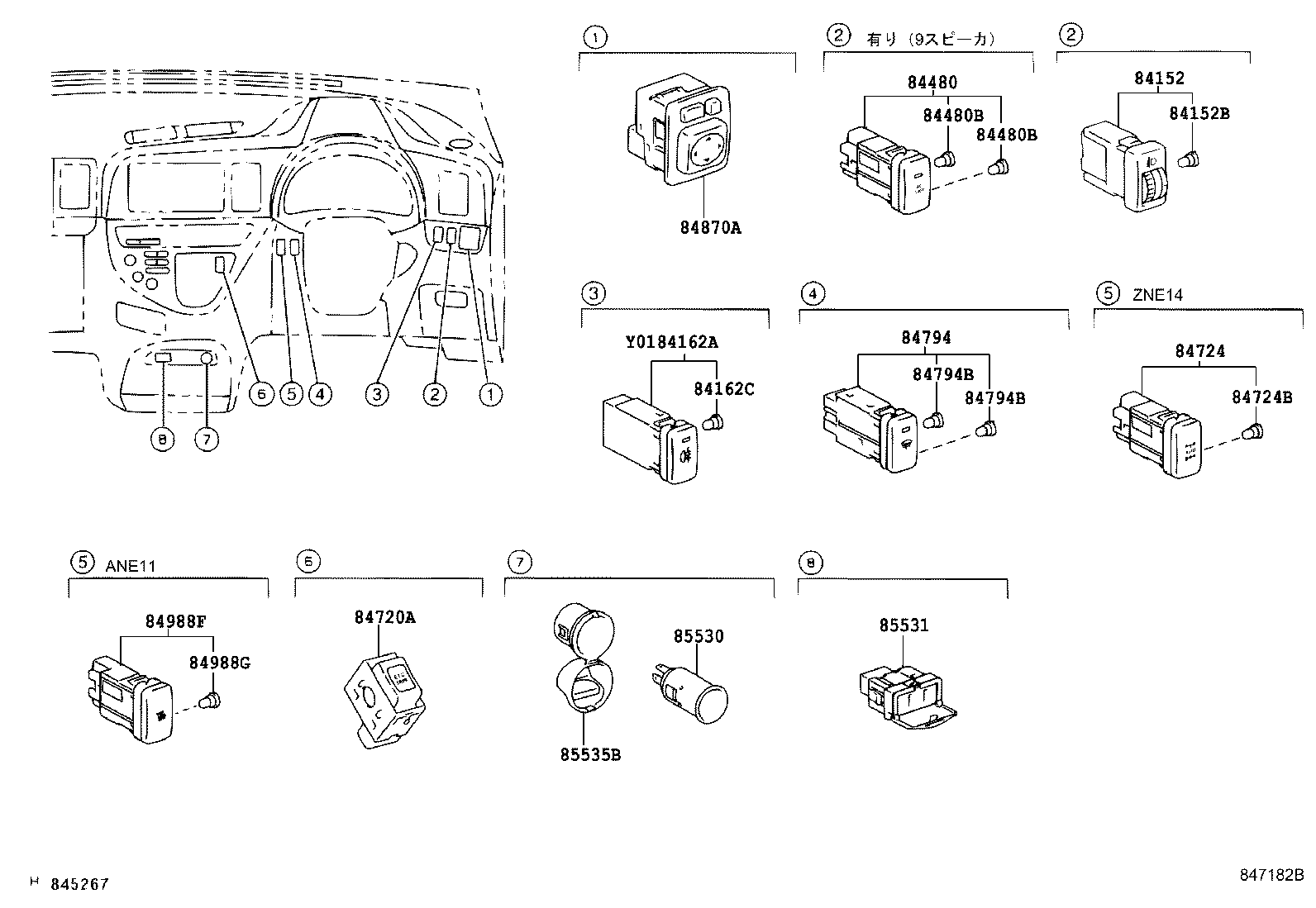

Figure 845264B 845264B 2003-01 → 2005-08 Figure 847183 847183 2005-08 → — Figure 845573C 845573C 2003-04 → — Figure 845265P 845265P 2003-01 → — Figure 84L188 84L188 2003-01 → — Figure 845266K 845266K 2003-01 → — Figure 845267C 845267C 2003-01 → — Figure 847182B 847182B 2005-08 → — Figure 845268G 845268G 2003-01 → — Figure 845269C 845269C 2003-01 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28850 Sensor Assy, Battery Current
28865 Sensor, Battery Thermometer
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82616 Puller, Fuse
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82685A Plate, Caution
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82741B Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84162A Switch, Rear Fog Lamp
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84204 Cable Sub-assy, Steering Pad Switch
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244 Switch, Steering Pad
84247A Switch, Steering Pad, LH
84306 Cable Sub-assy, Spiral
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84480 Switch Assy, Main
84480B Bulb, Main Switch Assy
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720A Switch Assy, Pattern Select, NO.1
84724 Switch, 4 Wheel Drive Control
84724B Bulb, 4 Wheel Drive Control Switch
84794 Switch, FR Wiper Deicer
84794B Bulb, FR Wiper Deicer Switch
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84862 Switch, Slide Roof Motor
84870A Switch Assy, Outer Mirror
84947B Cover, Switch
84988F Switch, Traction Control
84988G Bulb, Traction Control Switch
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85531 Socket, Power Outlet
85535B Cover, Power Outlet Socket, NO.1
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85928B Resistor, Cooling Fan
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86530 Relay Assy, Horn
89245B Sensor, Steering
89437 Cover, Sensor
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
895A1 Relay, Stop Lamp Control
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89654 Relay, Power Steering
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
