Toyota Wish

2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan

Supported model Data version 2009-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

4 part groups · 2 illustrations

Illustrations

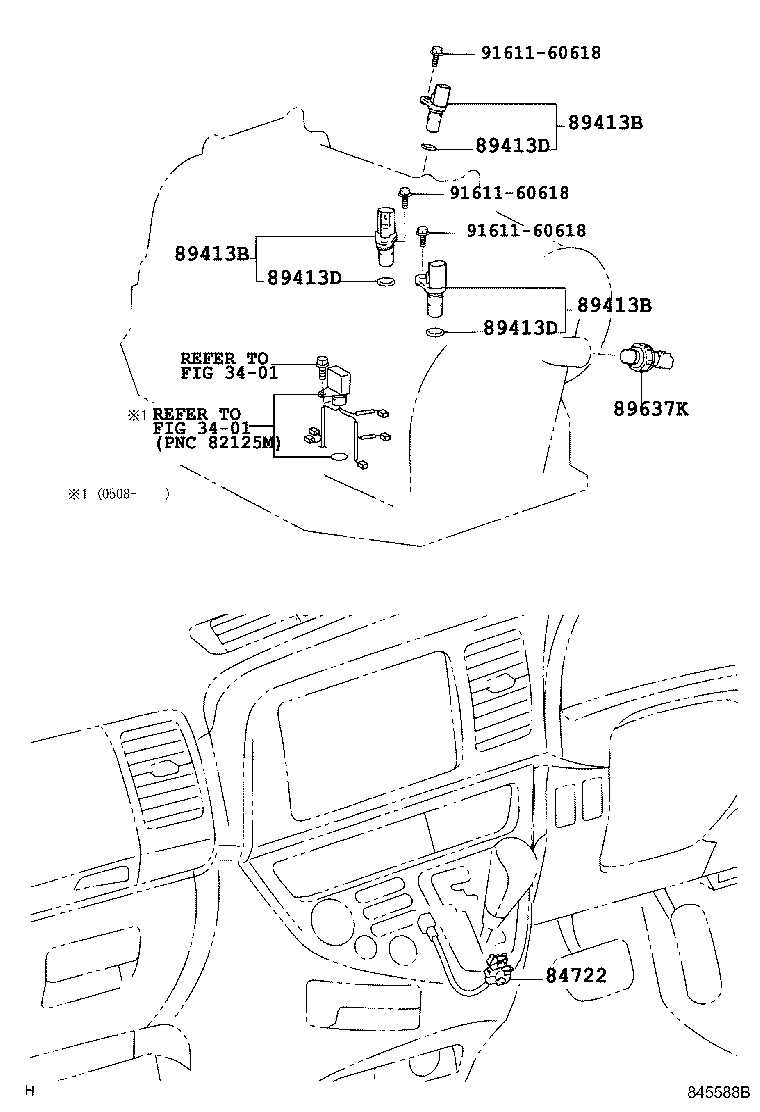

Figure 845106B 845106B 2003-01 → — Figure 845588B 845588B 2003-04 → —

Part groups

PNCDescription
84722 Switch, Transmission Control
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89637K Sensor, Oil Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
