Factory parts data · Europe

Toyota Wish

2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan

Supported model Data version 2009-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

11 part groups · 2 illustrations

Illustrations

Figure 845277B

845277B 2003-01 → —

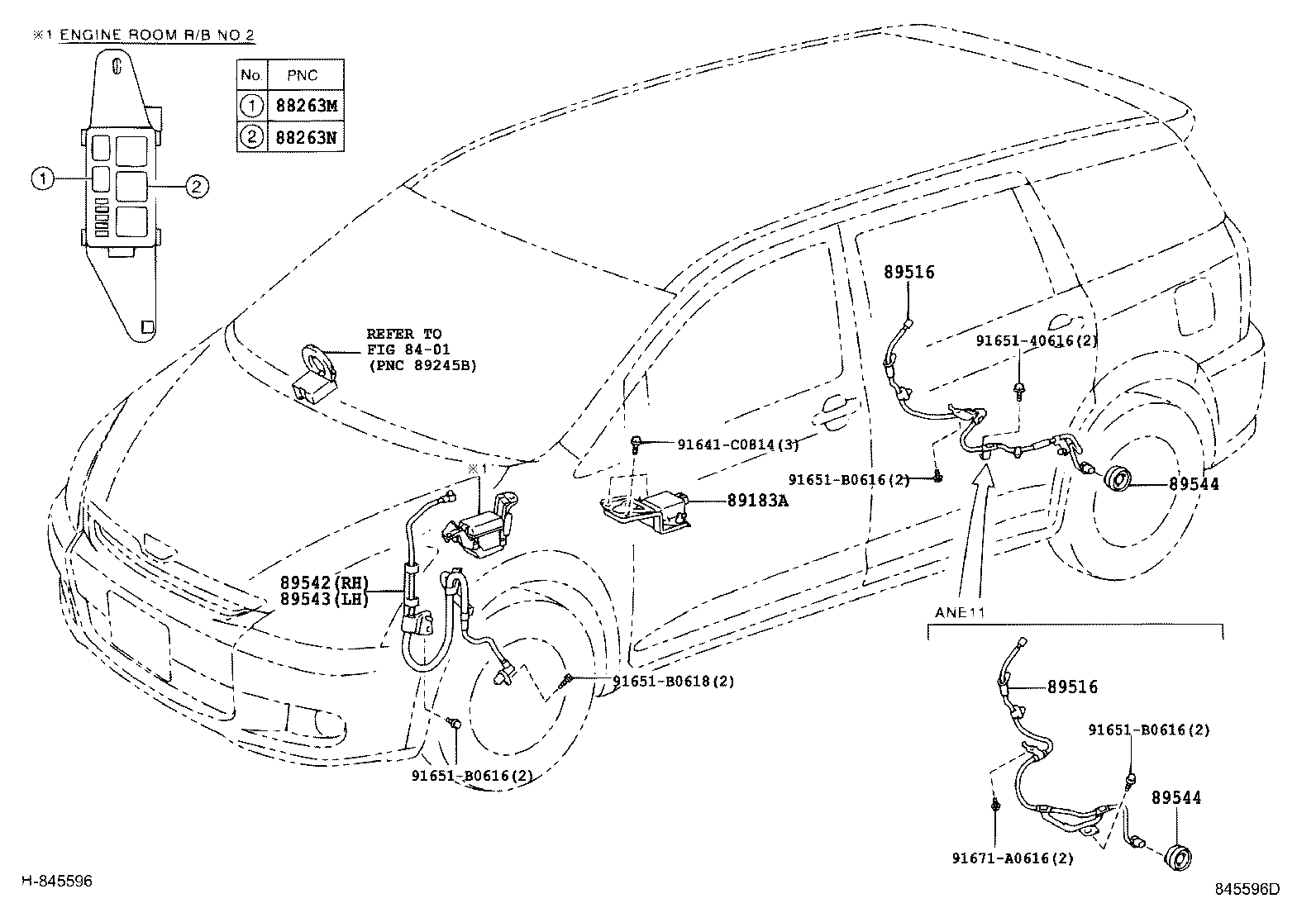

Figure 845596D

845596D 2003-04 → —

Part groups

PNC	Description
88263M	Relay, Abs Solenoid
88263N	Relay, Abs Motor
89183A	Sensor, Yawrate
89441A	Sensor, Deceleration
89516	Wire, Skid Control Sensor
89540	Computer Assy, Skid Control
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89544	Sensor, Skid Control
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
