Factory parts data · Europe

Toyota Wish

2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan

Supported model Data version 2009-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

6 part groups · 2 illustrations

Illustrations

Figure 861834E

861834E 2003-01 → —

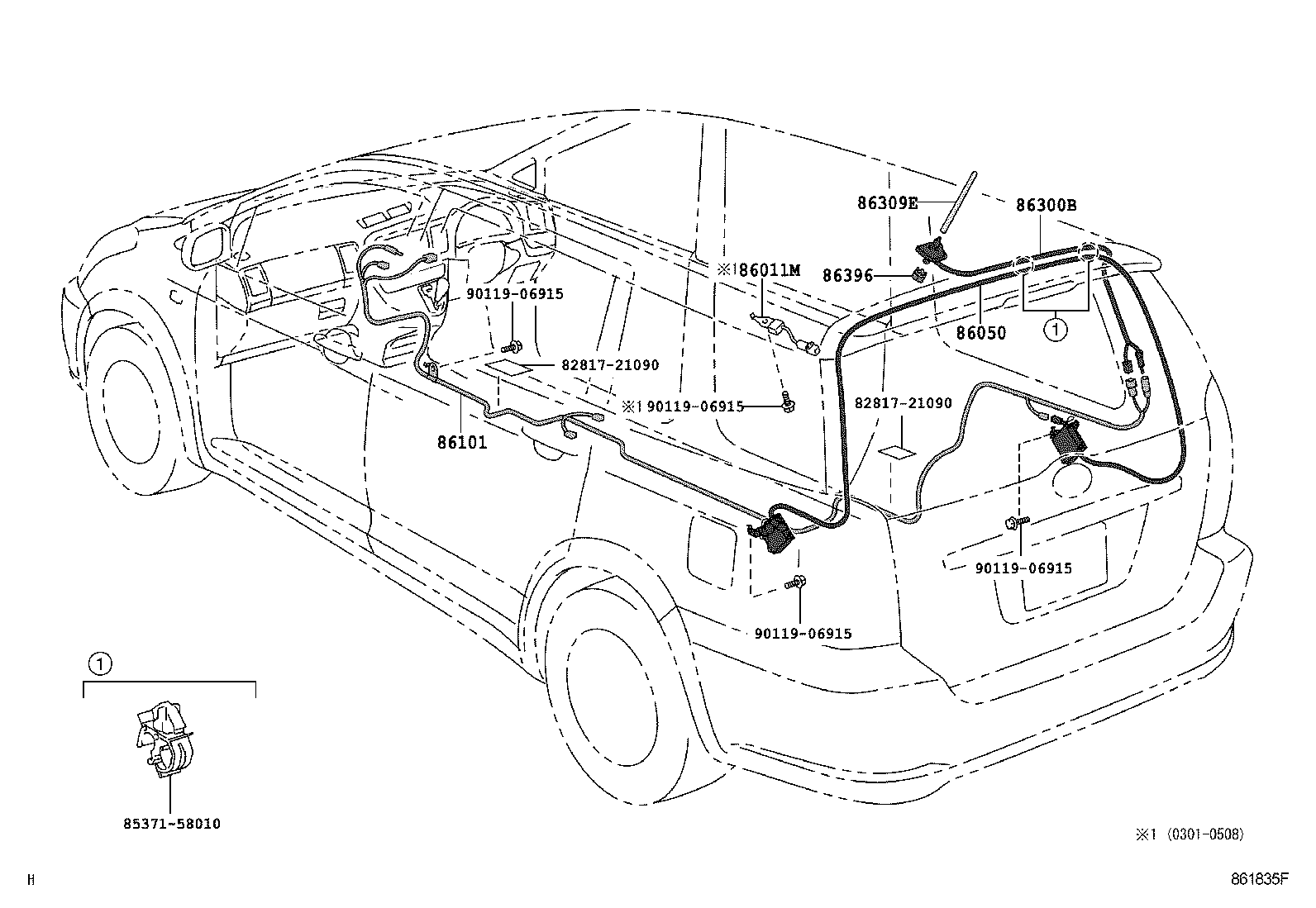

Figure 861835F

861835F 2003-01 → —

Part groups

PNC	Description
86011M	Filter, Noise
86050	Antenna Assy, Television
86101	Cord Sub-assy, Antenna
86300B	Antenna Assy, Amplifier, NO.1
86309E	Pole Sub-assy, Roof Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
