Toyota Wish

2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan

Supported model Data version 2009-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

19 part groups · 3 illustrations

Illustrations

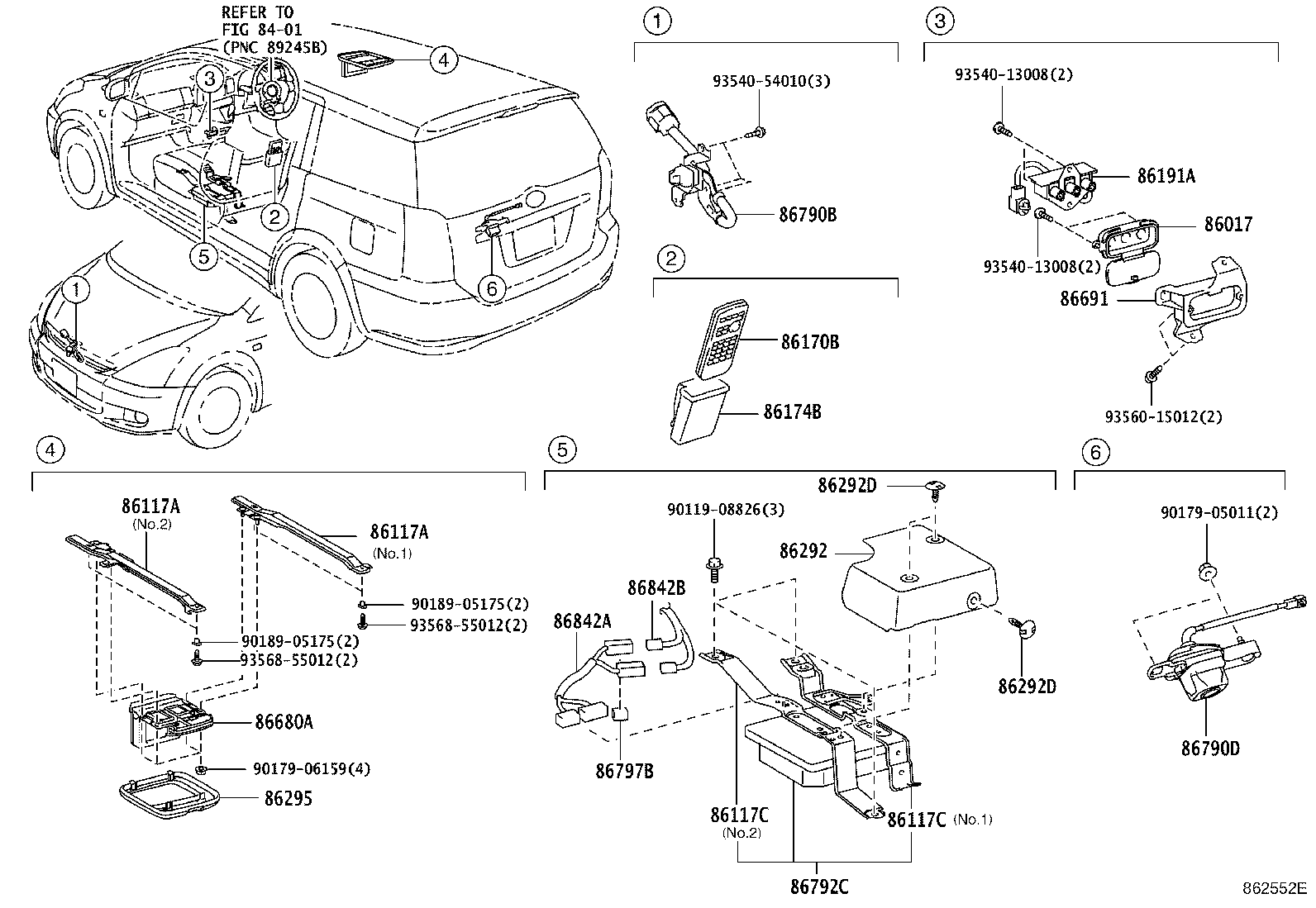

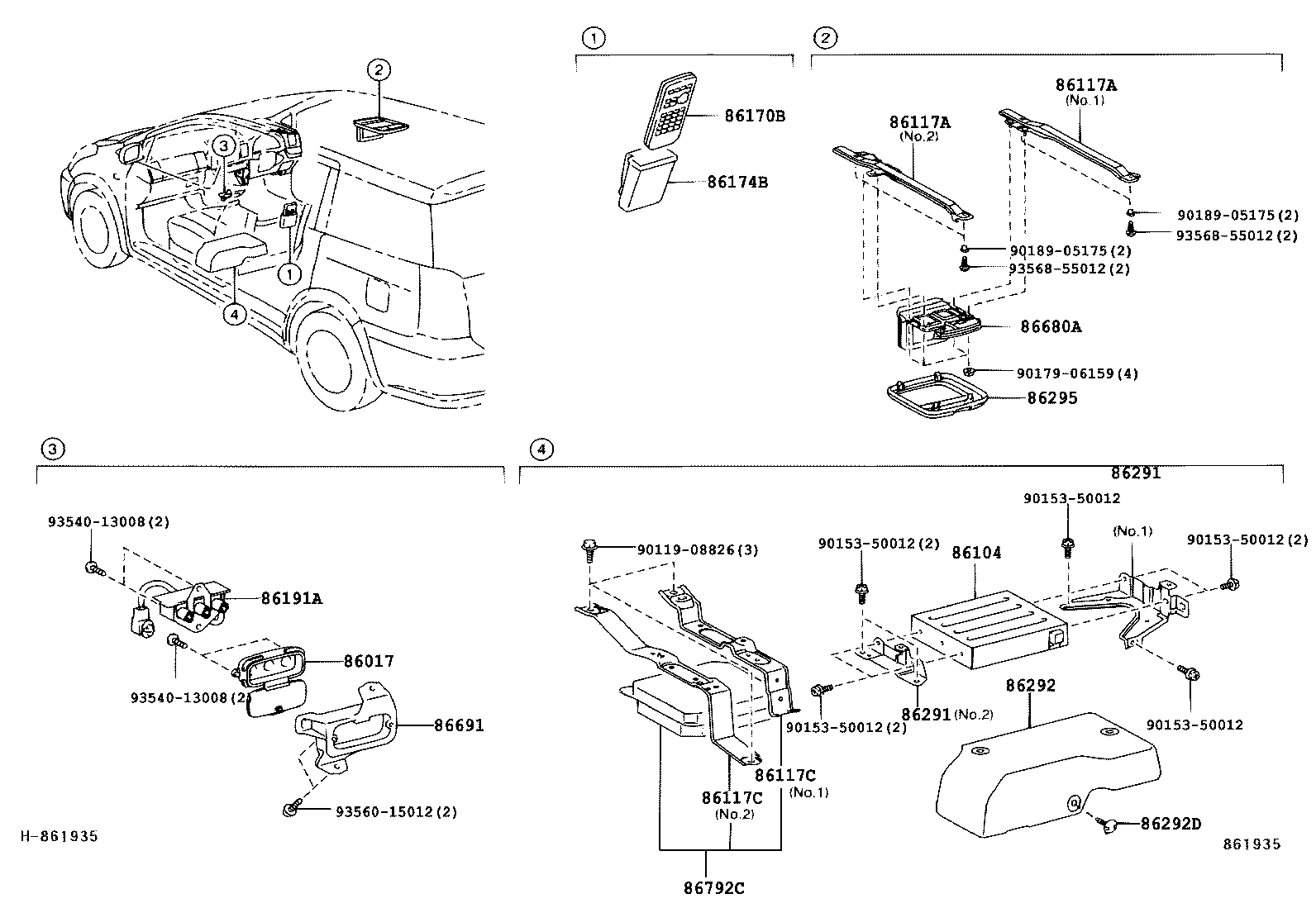

Figure 861853D 861853D 2003-01 → 2005-08 Figure 861935C 861935C 2003-04 → 2005-08 Figure 862552E 862552E 2005-08 → —

Part groups

PNCDescription
86017 Parts Set, Video
86104 Controller Sub-assy, Multi-display
86117A Bracket, Television Display, A
86117C Bracket, Multi-display Controller, NO.2
86170B Switch & Volume Assy, Television
86174B Case, Switch & Volume
86191A Terminal, Video(VIDEO ADAPTER)
86291 Bracket, Television
86292 Cover, Television Set
86292D Clip(FOR TELEVISION SET COVER)
86295 Base, Television
86680A Display Assy, Television
86691 Holder, Video
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86792C Computer, Parking Assist
86797B Wire, Parking Assist
86842A Wire, Navigation, NO.1
86842B Wire, Navigation, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
