Toyota Wish

2003-01 → 2009-03 · chassis ANE1#,ZNE1# · catalogue 163110 · Japan

Supported model Data version 2009-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 4 illustrations

Illustrations

Figure 875966A

875966A 2003-01 → 2004-11

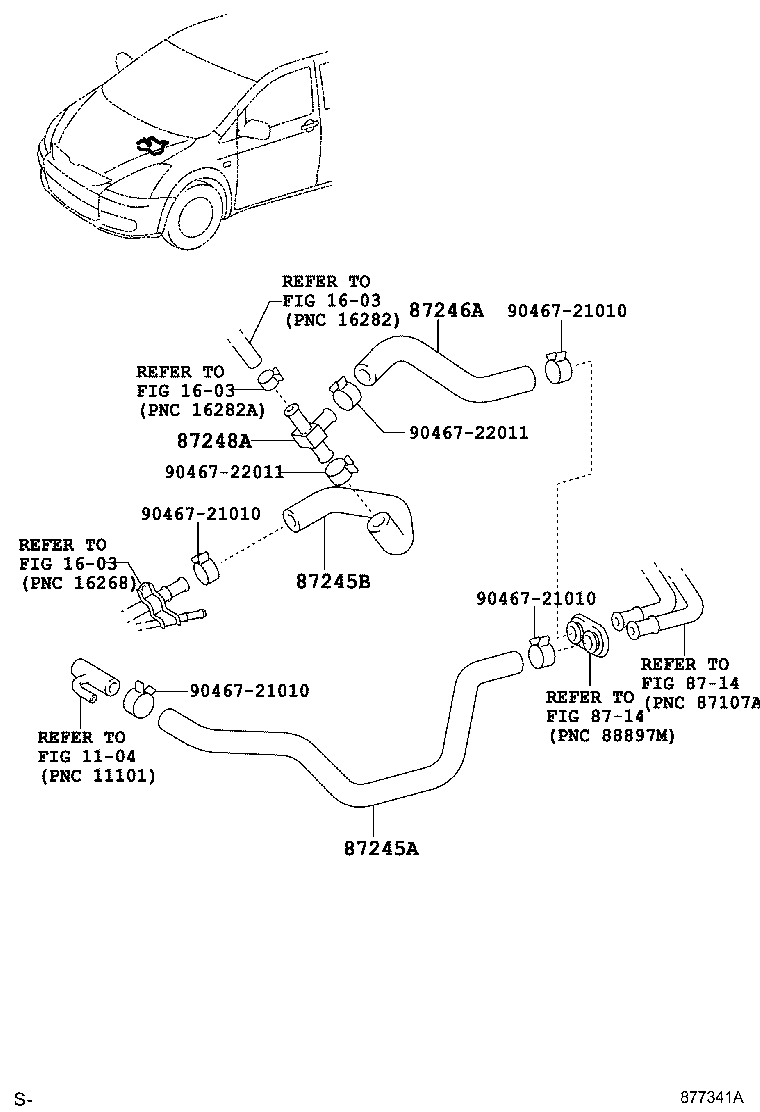

Figure 877341A

877341A 2004-11 → —

Figure 875967A

875967A 2003-01 → —

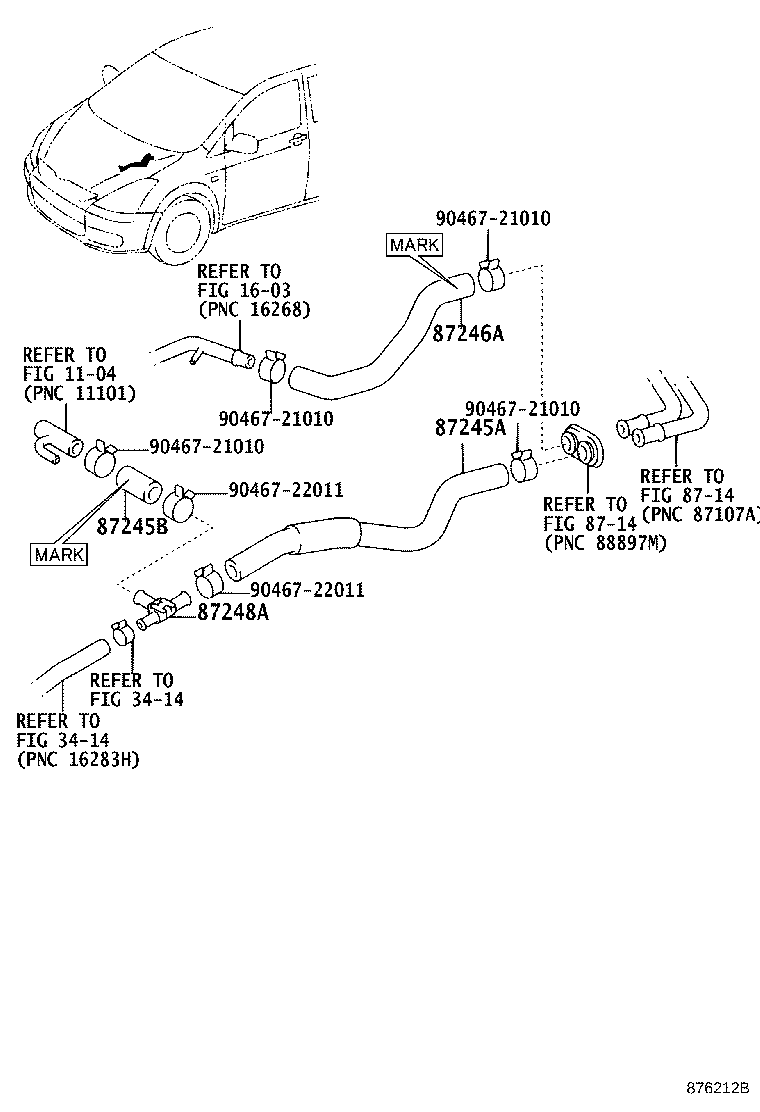

Figure 876212B

876212B 2003-04 → —

Part groups

PNC	Description
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246A	Hose, Heater Water, Outlet A
87248A	Pipe, Heater Water Inlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
