Toyota Wish
2009-03 → 2017-11 · chassis ZGE2# · catalogue 163120 · Japan
Supported model
Data version 2018-05

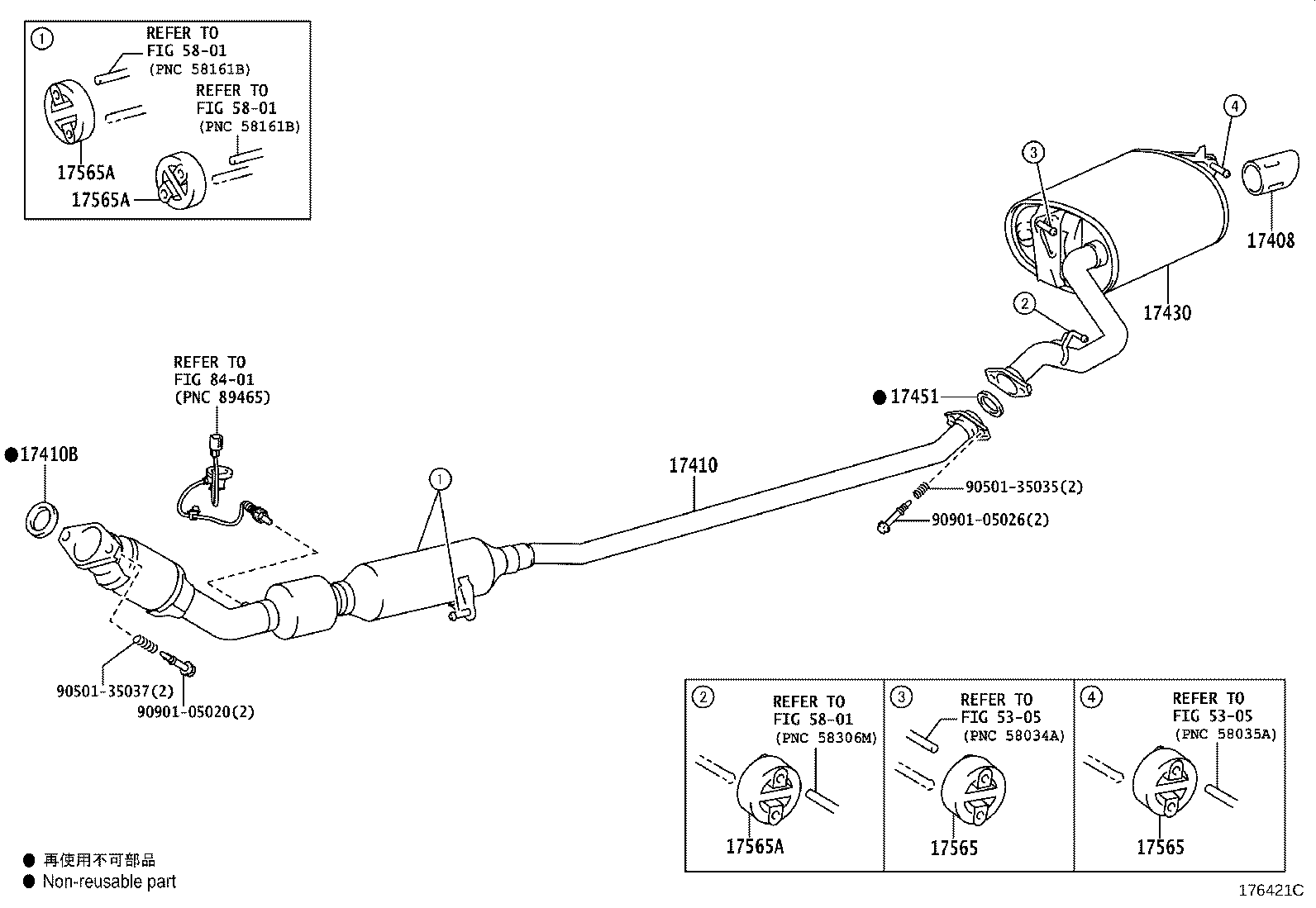

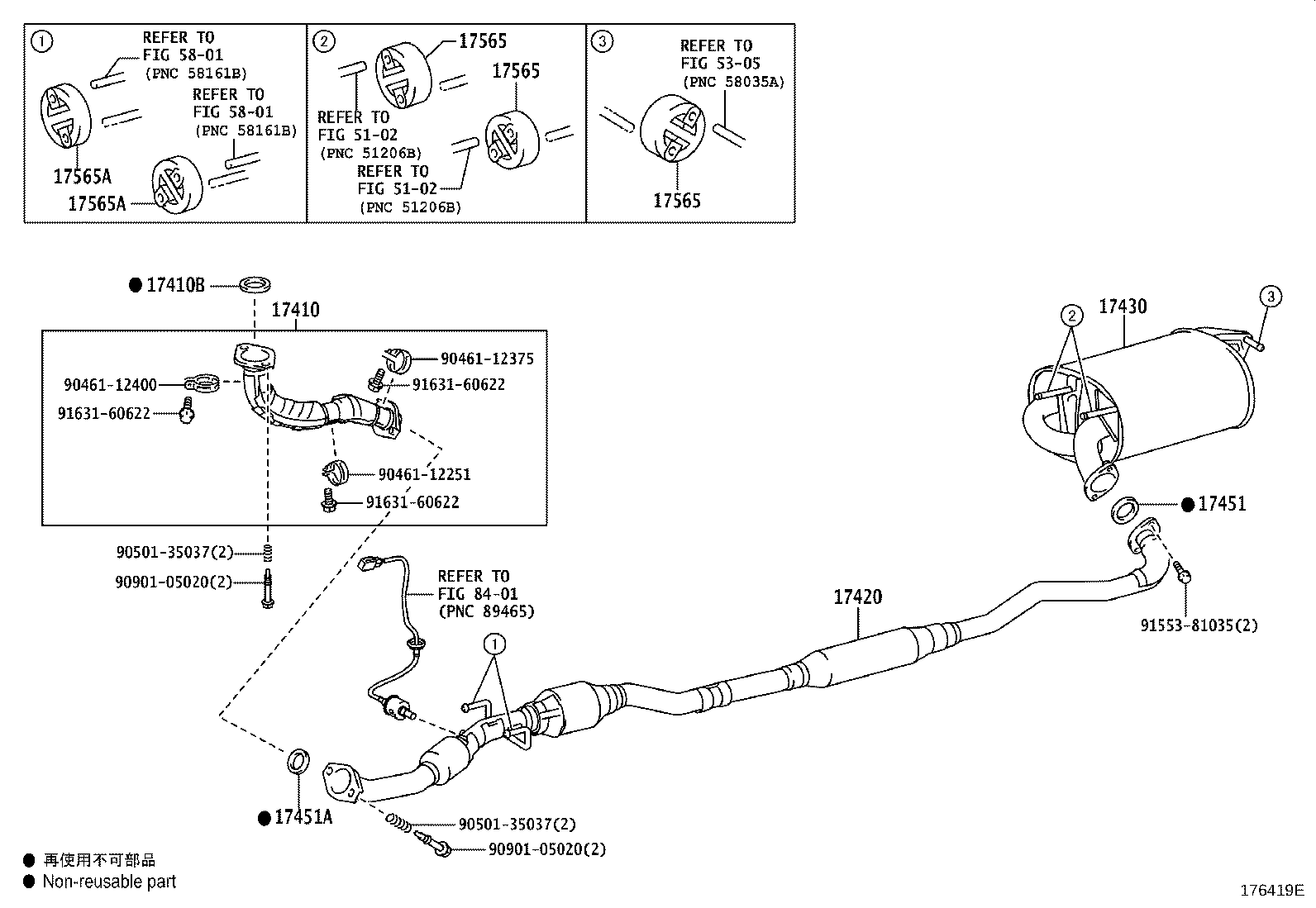

Exhaust Pipe
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17408 | Baffle Sub Assy, Exhaust Tailpipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17565A | Support, Exhaust Pipe, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
